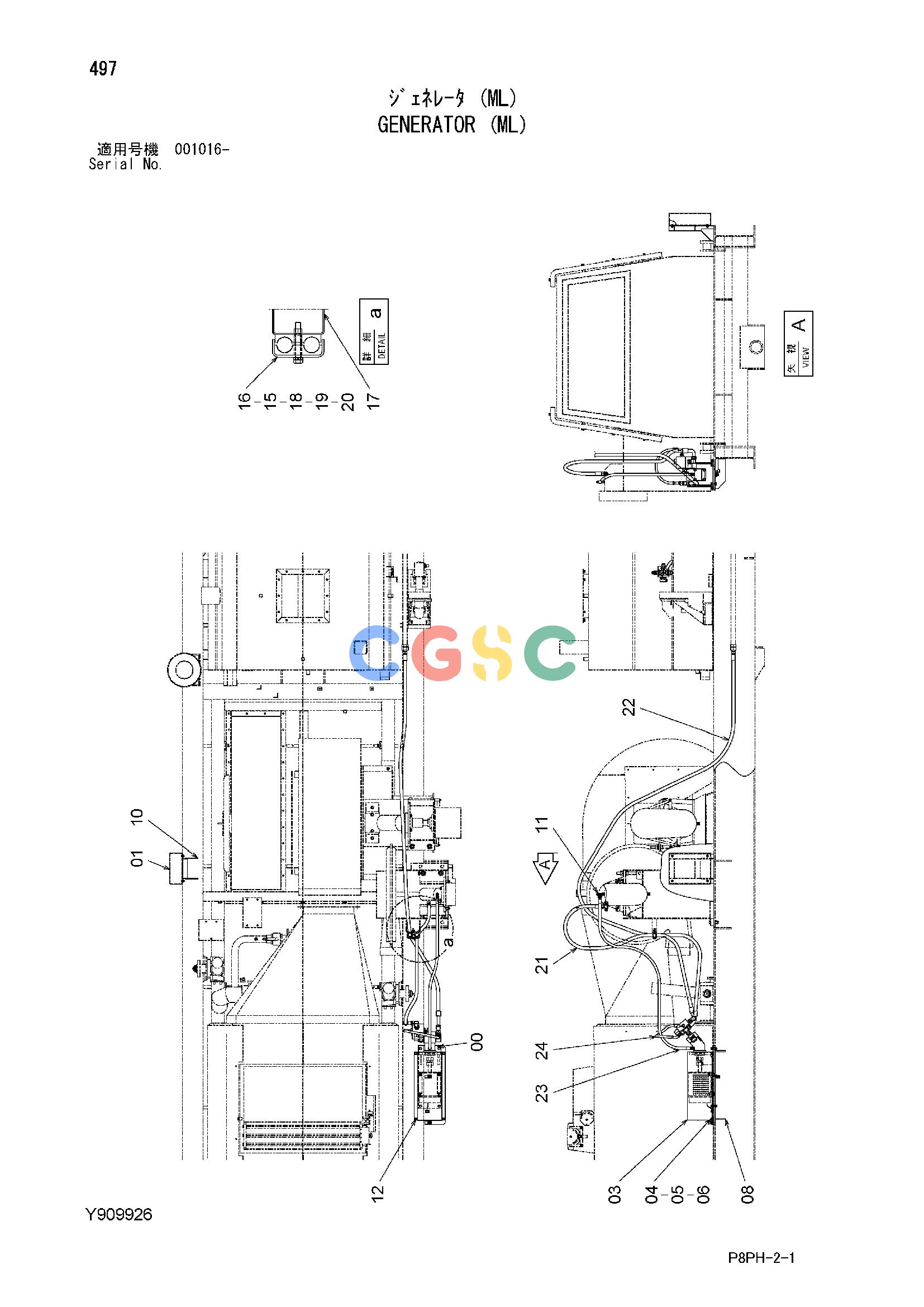

日立零件查询（AR2000）GENERATOR (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
622 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | +++++++ | [1] | GENERATOR ASS'Y(PH) | <for details: see separate page> |
| 01. | +++++++ | [1] | ELECTRICAL ASS'Y(PH) | <for details: see separate page> |
| 03. | Y802431 | [1] | COVER | |
| 04. | J901016 | [4] | BOLT | |
| 05. | A590110 | [4] | WASHER;PLANE | |
| 06. | A590910 | [4] | WASHER;SPRING | |
| 08. | Y802432 | [1] | BASE | |
| 10. | Y802434 | [1] | BRACKET | |
| 11. | Y414888 | [1] | TEE;S | |
| 12. | 4330449 | [2] | SEAT;SCREW | |
| 15. | 3075326 | [1] | RUBBER | |
| 16. | 8065749 | [1] | CLAMP | |
| 17. | Y971649 | [1] | BRACKET | |
| 18. | J901290 | [1] | BOLT | |
| 19. | A590112 | [1] | WASHER;PLANE | |
| 20. | A590912 | [1] | WASHER;SPRING | |
| 21. | Y415182 | [1] | HOSE | |
| 22. | Y417390 | [1] | HOSE | |
| 23. | Y417388 | [1] | HOSE | |
| 24. | Y417389 | [1] | HOSE | |
