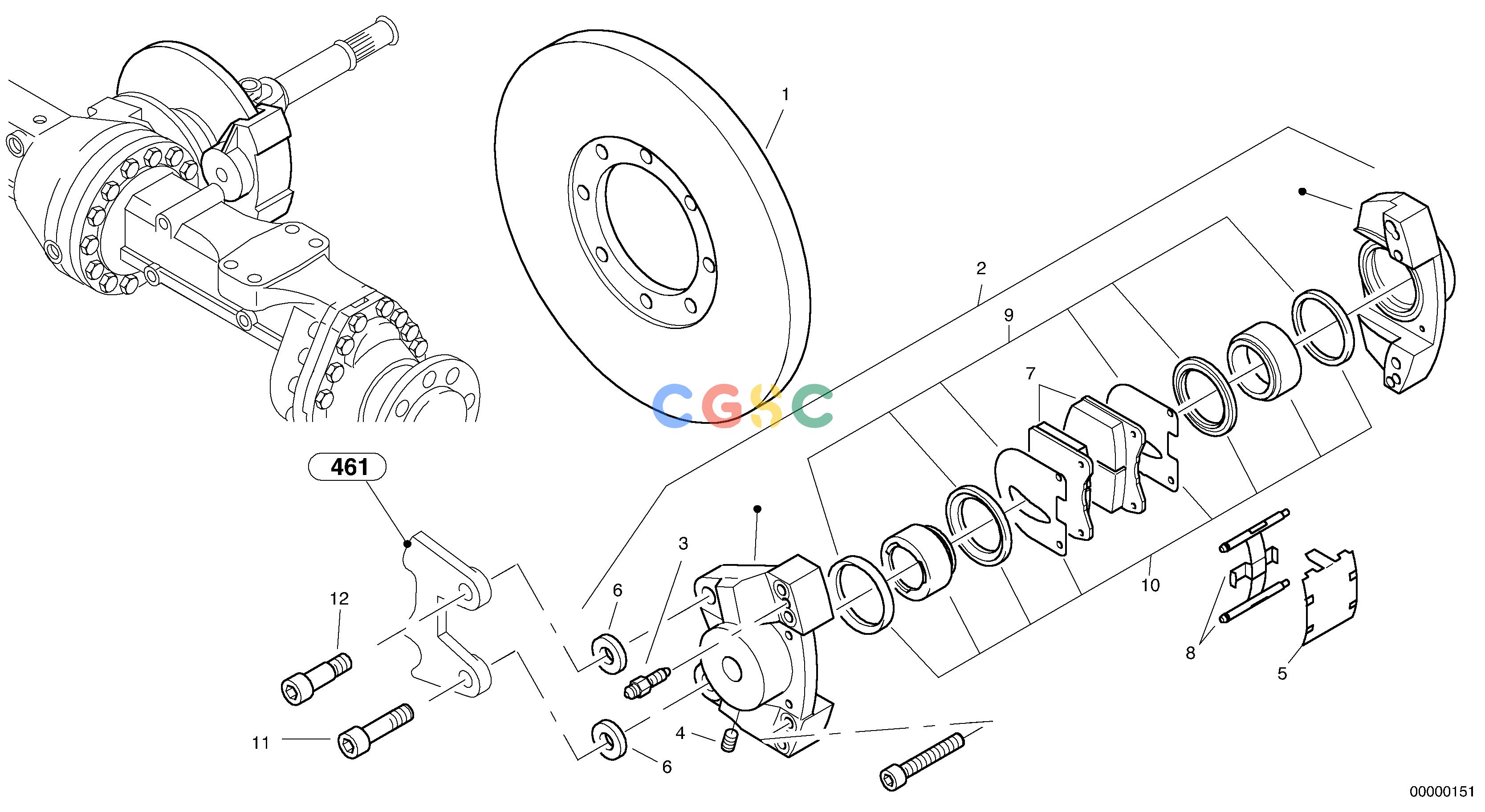

沃尔沃零件查询L35 Central brakeTYPE 186, 188, 189 SER NO - 22001880001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
700 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2906363
|
[1] |
Brake disk
|
|
| 10. |
ZM2907212
|
[1] |
Repair set
|
|
| 11. |
ZM8096568
|
[1] |
Screw
|
M16x1,5x55
|
| 12. |
ZM2288018
|
[1] |
Fitted screw
|
|
| 2. |
ZM2290863
|
[1] |
Disc brake
|
|
| 3. |
ZM2124380
|
[1] |
Valve
|
|
| 4. |
ZM2907210
|
[1] |
Stop Screw
|
|
| 5. |
ZM2902238
|
[1] |
Cover
|
|
| 6. |
ZM2907211
|
[2] |
O-ring
|
2 mm
|
| 7. |
ZM2904928
|
[1] |
Limit set
|
|
| 8. |
ZM2290868
|
[1] |
Accessoires set
|
|
| 9. |
ZM2290865
|
[1] |
Gasket set
|
|
