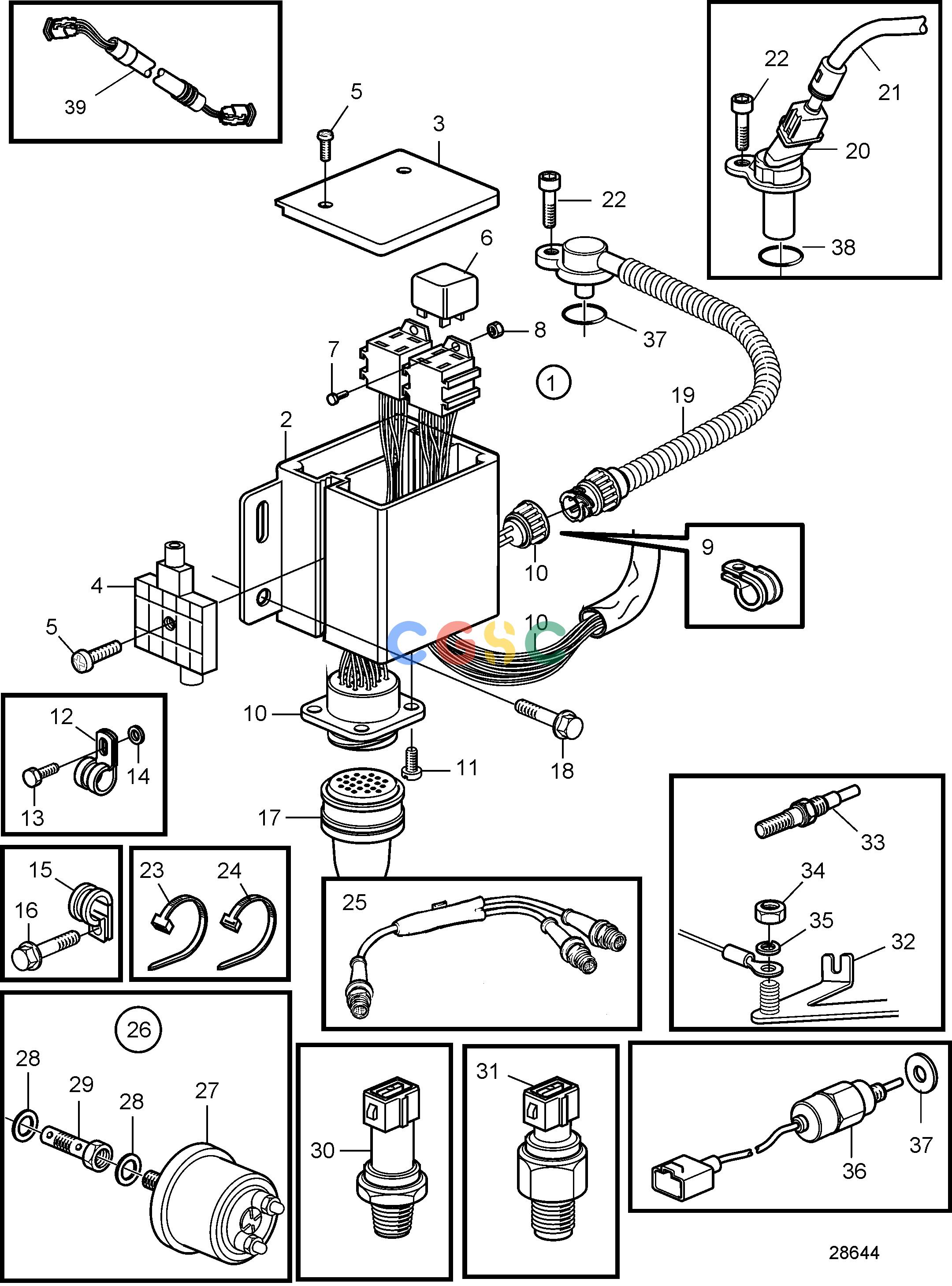

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FElectrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
509 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
861648
|
[1] |
Electrical distribut
|
|
| 3. |
861681
|
[1] |
Cap
|
|
| 4. |
873566
|
[1] |
Fuse box
|
|
| 5. |
955142
|
[1] |
Cross recessed screw
|
|
| 6. |
873765
|
[2] |
Relay
|
|
| 7. |
948663
|
[3] |
Flange screw
|
|
| 8. |
955780
|
[3] |
Hexagon nut
|
|
| 9. |
952627
|
[1] |
Clamp
|
|
| 10. |
881664
|
[1] |
Wiring harness
|
|
| 11. |
955119
|
[4] |
Cross recessed screw
|
|
| 12. |
952627
|
[1] |
Clamp
|
|
| 13. |
969456
|
[1] |
Six point socket scr
|
|
| 14. |
960137
|
[1] |
Washer
|
|
| 15. |
947191
|
[1] |
Clamp
|
For cabel to glow plug
|
| 16. |
947107
|
[1] |
Flange screw
|
|
| 17. |
846648
|
[1] |
Extension cable
|
L=3000mm
|
| 17. |
846649
|
[1] |
Extension cable
|
L=5000mm
|
| 17. |
846650
|
[1] |
Extension cable
|
L=7000mm
|
| 17. |
873838
|
[1] |
Extension cable
|
L=9000mm
|
| 17. |
873839
|
[1] |
Extension cable
|
L=11000mm
|
| 18. |
3580269
|
[2] |
Screw
|
|
| 19. |
3944124
|
[1] |
Sensor
|
Speed Sensor Ø24mm
|
| 20. |
21426987
|
[1] |
Speed monitor
|
Speed Sensor Ø20mm
|
| 21. |
21644180
|
[1] |
Wiring harness
|
|
| 22. |
963684
|
[1] |
Hex. socket screw
|
|
| 23. |
948616
|
[1] |
Cable tie
|
|
| 24. |
948211
|
[1] |
Cable tie
|
|
| 25. |
1140598
|
[1] |
Distributing contact
|
For double steering positions.
|
| 26. |
|
|
|
|
| 27. |
3587359
|
[1] |
Oil pressure sensor
|
|
| 28. |
11992
|
[2] |
Gasket
|
|
| 29. |
3583575
|
[1] |
Hollow screw
|
|
| 30. |
3808797
|
[1] |
Thermo monitor
|
|
| 31. |
3583569
|
[1] |
Temperature sensor
|
|
| 32. |
3583571
|
[1] |
Current bar
|
|
| 33. |
3583025
|
[4] |
Glow plug
|
|
| 34. |
|
|
|
|
| 35. |
|
|
|
|
| 36. |
3584127
|
[1] |
Stop solenoid
|
|
| 37. |
3580092
|
[1] |
Sealing ring
|
|
| 38. |
974673
|
[1] |
O-ring
|
|
| 39. |
21138239
|
[1] |
Wiring harness
|
|
