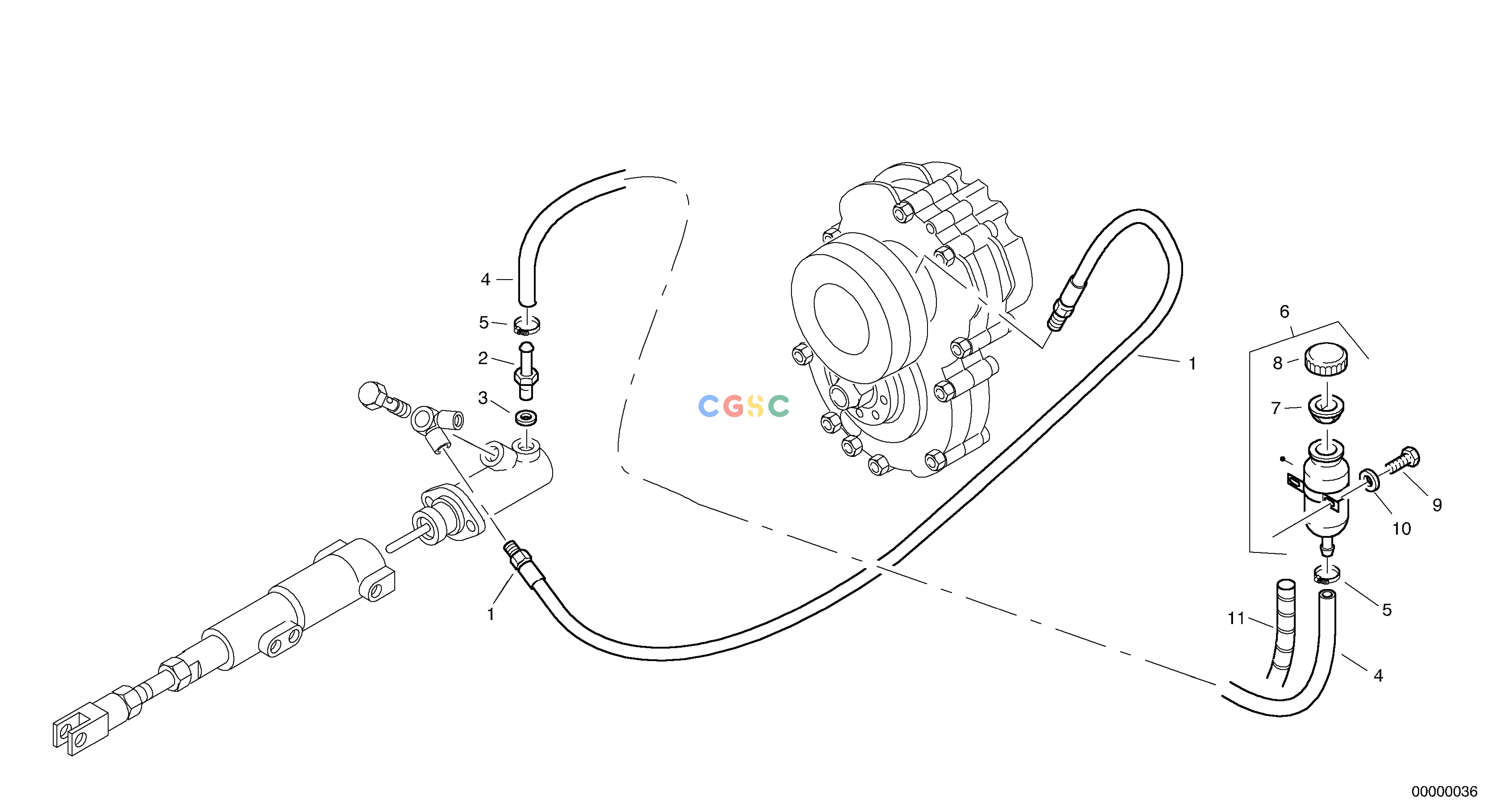

沃尔沃零件查询L35 Brake linesTYPE 186, 188, 189 SER NO - 22001860001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
808 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2907915
|
[1] |
Brake hose
|
|
| 2. |
ZM2812009
|
[1] |
Pipe end
|
|
| 3. |
VOE13947282
|
[1] |
Gasket
|
A12x18
|
| 4. |
ZM4383315
|
[1] |
Hose
|
L = 1330MM
|
| 5. |
ZM2060781
|
[2] |
Clip
|
12x9
|
| 6. |
ZM2802037
|
[1] |
Expansion tank
|
|
| 7. |
ZM2903629
|
[1] |
Screen
|
|
| 8. |
ZM2903630
|
[1] |
Cover
|
|
| 9. |
VOE13946544
|
[2] |
Screw
|
M6x16
|
| 10. |
VOE955892
|
[2] |
Plain washer
|
B6,4
|
| 11. |
ZM2810495
|
[1] |
Hose protection
|
L = 500MM
|
