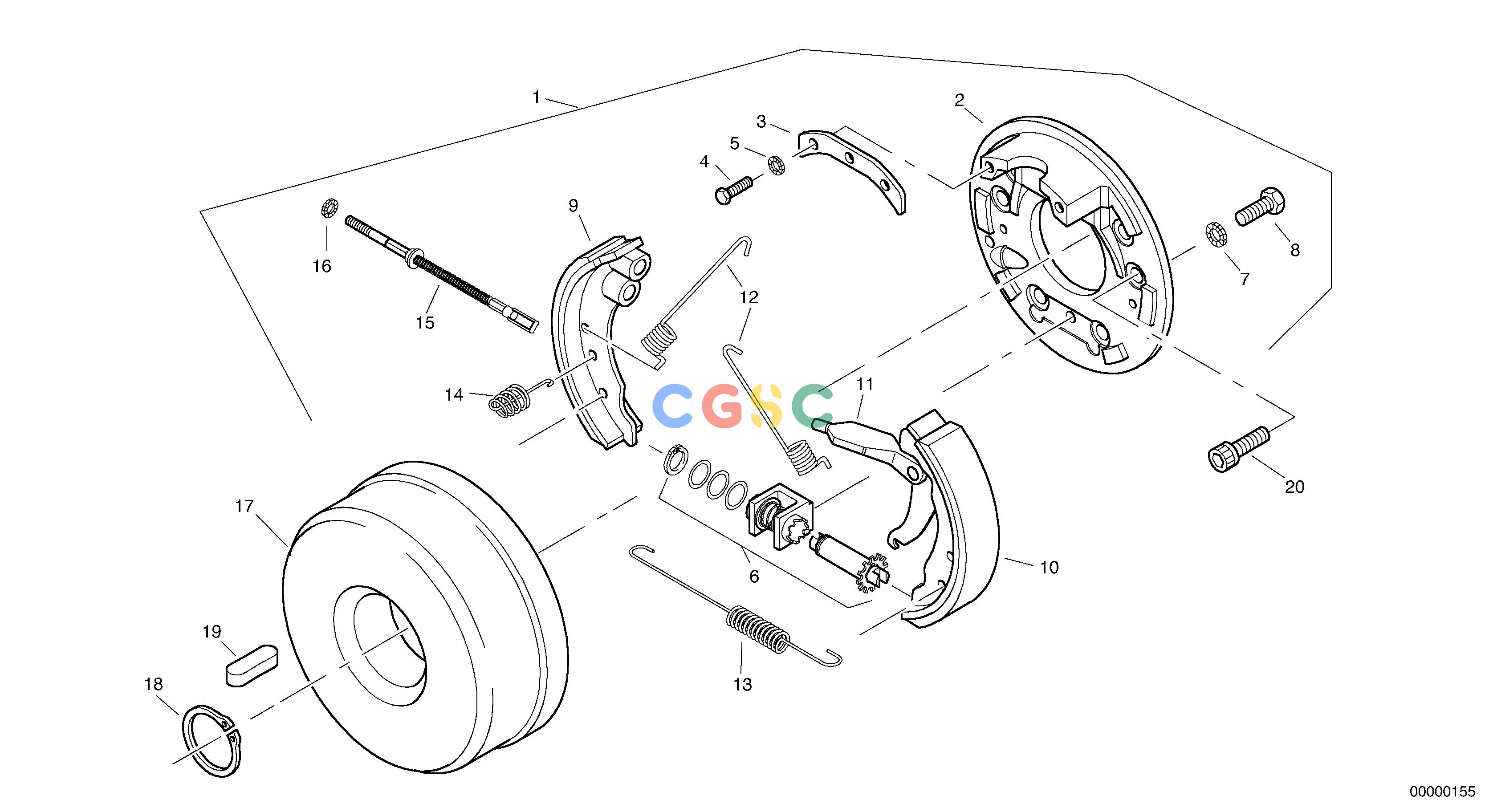

沃尔沃零件查询L35 Parking brakeTYPE 186, 188, 189 SER NO - 22001880001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
137 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2907245
|
[1] |
Brake, cpl.
|
|
| 10. |
ZM2907201
|
[1] |
Brake shoe
|
|
| 11. |
ZM2907202
|
[1] |
Tappet
|
|
| 12. |
ZM2907203
|
[2] |
Wire spring
|
|
| 13. |
ZM2907204
|
[1] |
Wire spring
|
|
| 14. |
ZM2907205
|
[2] |
Pressure spring
|
|
| 15. |
ZM2907206
|
[1] |
Rope wire - Adapter
|
|
| 16. |
ZM2907246
|
[1] |
Spring washer
|
|
| 17. |
VOE17229223
|
[1] |
Drum brake
|
|
| 18. |
ZM7094920
|
[1] |
Safety ring
|
25x1,2
|
| 19. |
ZM7090727
|
[1] |
Key
|
A8x7x40
|
| 2. |
ZM2907195
|
[1] |
Brake support
|
|
| 20. |
VOE11306294
|
[6] |
Hexagon screw
|
M12x25
|
| 21. |
ZM7096511
|
[1] |
Screw
|
M20x1,5
|
| 3. |
ZM2907196
|
[1] |
Retainer
|
|
| 4. |
VOE13946544
|
[2] |
Screw
|
|
| 5. |
ZM7098315
|
[2] |
Spring ring
|
B6
|
| 6. |
VOE17488538
|
[1] |
Adjusting Devic
|
|
| 7. |
ZM2907199
|
[2] |
Lock Washer
|
|
| 8. |
VOE983242
|
[1] |
Hexagon screw
|
M8x20
|
| 9. |
ZM2907200
|
[1] |
Brake shoe
|
|
