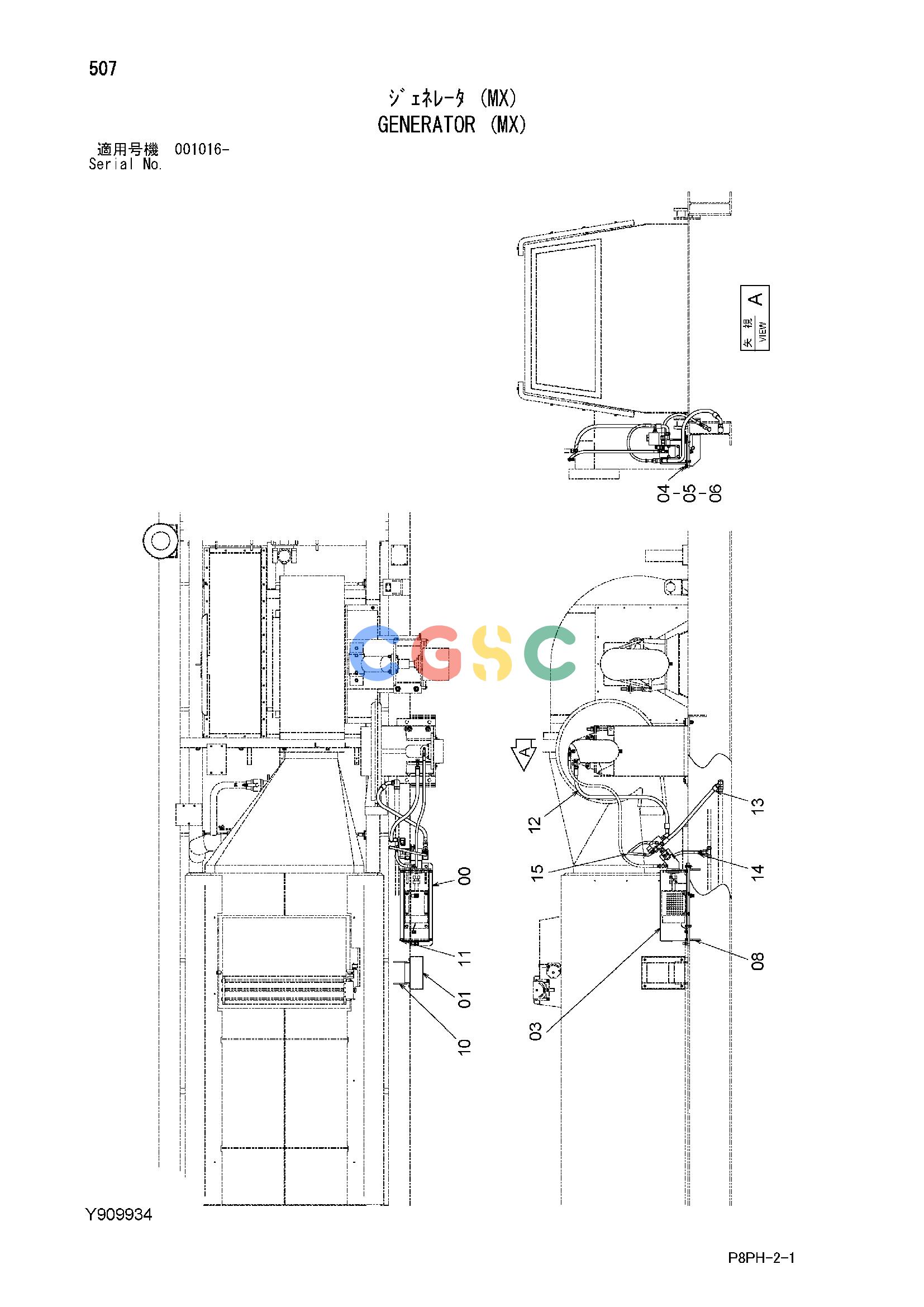

日立零件查询（AR2000）GENERATOR (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
324 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | +++++++ | [1] | GENERATOR ASS'Y(MX) | <for details: see separate page> |
| 01. | +++++++ | [1] | ELECTRICAL ASS'Y(MX) | <for details: see separate page> |
| 03. | Y802431 | [1] | COVER | |
| 04. | J901016 | [4] | BOLT | |
| 05. | A590110 | [4] | WASHER;PLANE | |
| 06. | A590910 | [4] | WASHER;SPRING | |
| 08. | Y802432 | [1] | BASE | |
| 10. | Y802434 | [1] | BRACKET | |
| 11. | 4330449 | [2] | SEAT;SCREW | |
| 12. | Y415183 | [1] | HOSE | |
| 13. | 4353461 | [1] | HOSE | |
| 14. | 4293862 | [1] | HOSE | |
| 15. | Y417393 | [1] | HOSE | |
