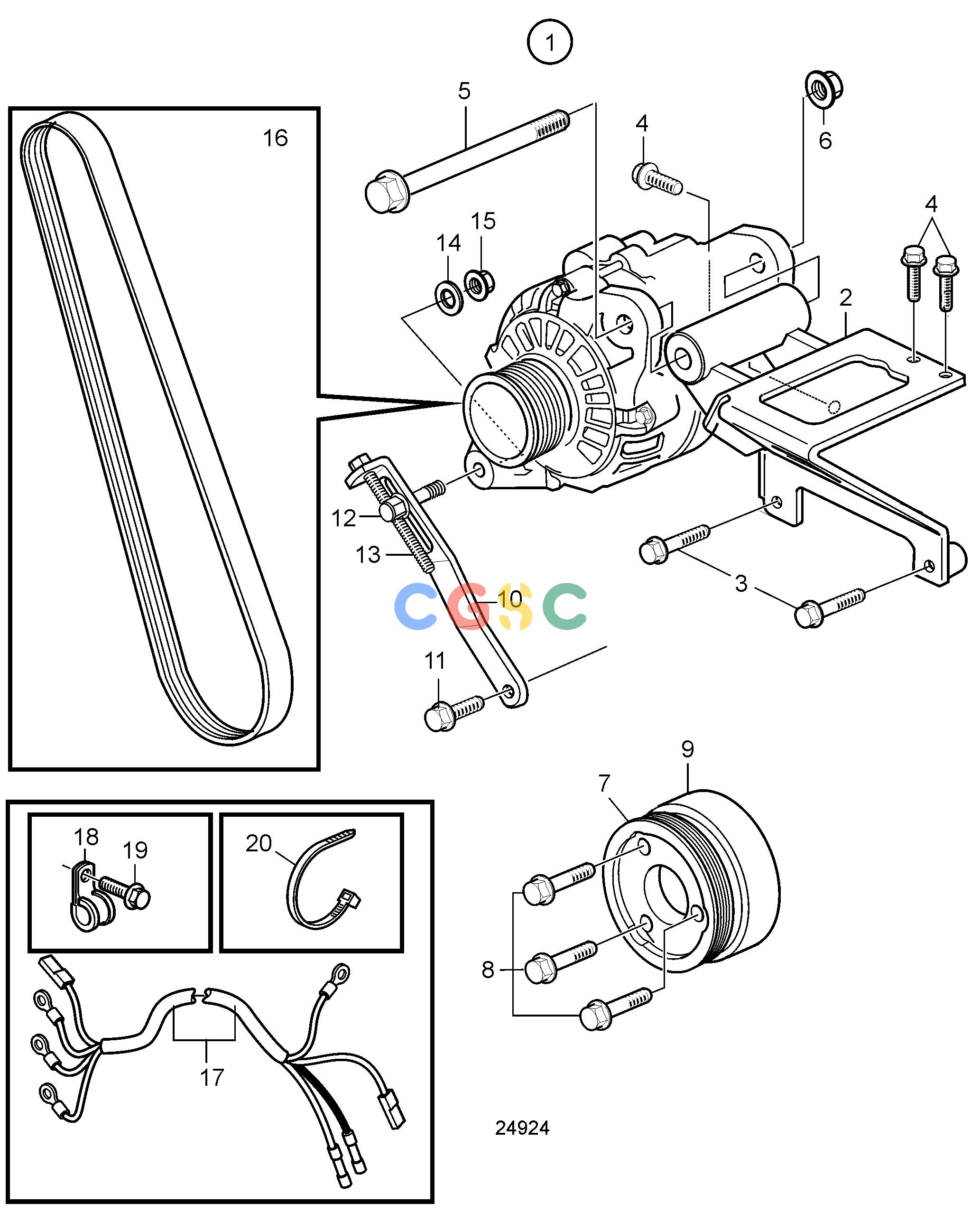

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FElectrical SystemExtra AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
150 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21384685
|
[1] |
Kit, kit
|
|
| 2. |
21178401
|
[1] |
Bracket
|
|
| 3. |
946470
|
[2] |
Flange screw
|
M8x35mm
|
| 4. |
946440
|
[3] |
Flange screw
|
M8x16mm
|
| 5. |
978447
|
[1] |
Flange screw
|
M12x150mm
|
| 6. |
971096
|
[1] |
Flange nut
|
|
| 7. |
21178941
|
[1] |
Pulley
|
|
| 8. |
965227
|
[3] |
Flange screw
|
M12x55mm
|
| 9. |
3583572
|
[1] |
Spacer
|
|
| 10. |
21180308
|
[1] |
Tensioner
|
|
| 11. |
946173
|
[1] |
Flange screw
|
M8x20mm
|
| 12. |
861663
|
[1] |
Flange screw
|
|
| 13. |
977820
|
[1] |
Hexagon screw
|
M8x100mm
|
| 14. |
960144
|
[1] |
Washer
|
|
| 15. |
948645
|
[1] |
Flange lock nut
|
|
| 16. |
21179870
|
[1] |
Belt
|
|
| 17. |
21380307
|
[1] |
Wiring harness
|
|
| 18. |
949746
|
[1] |
Clamp
|
|
| 19. |
948663
|
[1] |
Flange screw
|
M5x10mm
|
| 20. |
948211
|
[3] |
Cable tie
|
|
