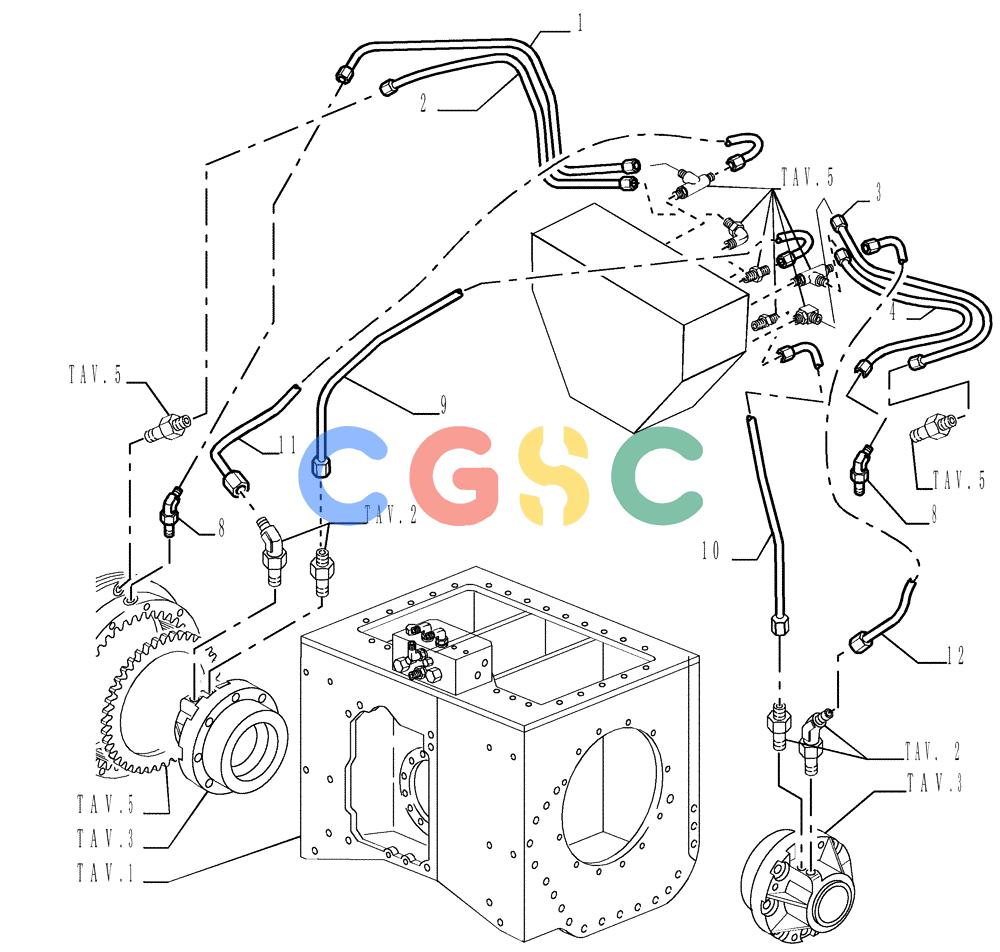

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (1.266[06]) - REAR TRANSMISSION - PIPING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
171 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76054760 | [1] | RIGID TUBE | TOR- RIGHT |
| 2. | 76054756 | [1] | RIGID TUBE | TOR- RIGHT |
| 3. | 76054755 | [1] | RIGID TUBE | TOR- LEFT |
| 4. | 76054759 | [1] | RIGID TUBE | TOR- LEFT |
| 8. | 79067050 | [2] | HYD CONNECTOR | LEC10 a 45° |
| 9. | 76054754 | [1] | RIGID TUBE | TOR- RIGHT |
| 10. | 76054753 | [1] | RIGID TUBE | TOR- LEFT |
| 11. | 76054758 | [1] | RIGID TUBE | TOR- RIGHT |
| 12. | 76054757 | [1] | RIGID TUBE | TOR- LEFT |
