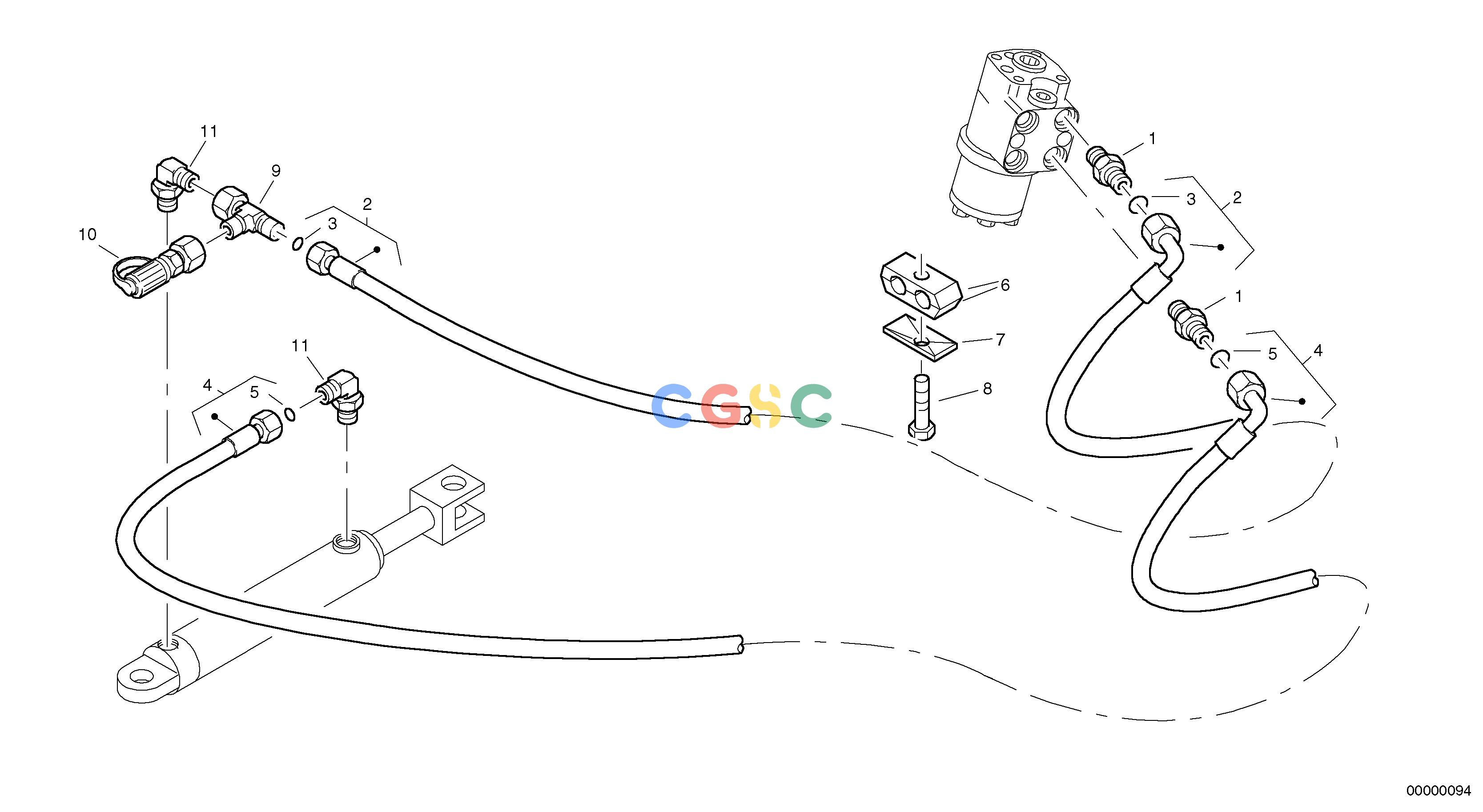

沃尔沃零件查询L35 Steering-hydraulic equipment - front vehicleTYPE 186, 188, 189 SER NO - 22001860001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
405 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2811242
|
[2] |
Nipple
|
|
| 10. |
ZM2810700
|
[1] |
Measuring fitting
|
|
| 11. |
ZM2800658
|
[2] |
Fitting
|
|
| 2. |
ZM2812021
|
[1] |
Hose
|
|
| 3. |
ZM2259052
|
[2] |
O-ring
|
9,5x2
|
| 4. |
ZM2811267
|
[1] |
Hose
|
|
| 5. |
ZM2259052
|
[2] |
O-ring
|
9,5x2
|
| 6. |
ZM2802161
|
[1] |
Clip
|
|
| 7. |
VOE14371075
|
[1] |
Top plate
|
|
| 8. |
VOE983244
|
[1] |
Hexagon screw
|
M8x30
|
| 9. |
VOE945837
|
[1] |
Nipple
|
L12
|
