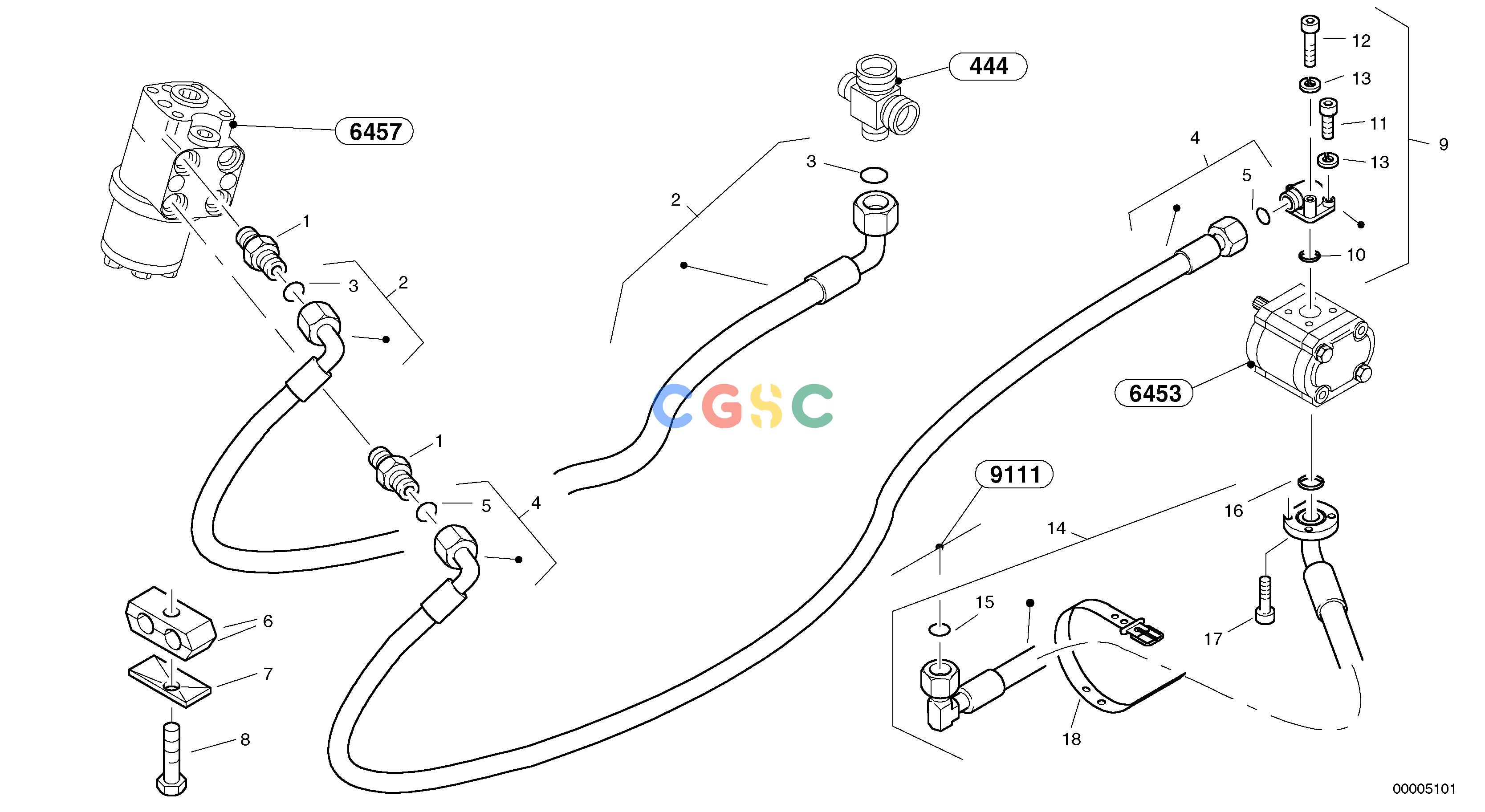

沃尔沃零件查询L35 Steering-hydraulic equipment - rear vehicleTYPE 186, 188, 189 SER NO - 22001860001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
507 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM7091971
|
[2] |
Nipple
|
L15
|
| 10. |
ZM2030670
|
[1] |
O-ring
|
|
| 11. |
ZM7096556
|
[2] |
Screw
|
M6x22
|
| 12. |
ZM7096552
|
[2] |
Screw
|
M6x35
|
| 13. |
ZM7098300
|
[4] |
Spring ring
|
6
|
| 14. |
ZM2812040
|
[1] |
Hose
|
|
| 15. |
ZM2259053
|
[1] |
O-ring
|
19x2,5
|
| 16. |
VOE11707740
|
[1] |
O-ring
|
|
| 17. |
VOE11305407
|
[4] |
Allen Hd Screw
|
M8x20
|
| 18. |
ZM4346043
|
[1] |
Strap
|
|
| 37. |
ZM4346043
|
[1] |
Strap
|
|
| 2. |
ZM2811286
|
[1] |
Hose
|
|
| 3. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 4. |
ZM2811468
|
[1] |
Hose
|
|
| 5. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 6. |
VOE11305384
|
[1] |
Clamp
|
|
| 7. |
ZM4343143
|
[1] |
Plate
|
|
| 8. |
VOE14370277
|
[1] |
Hexagon screw
|
M8x40
|
| 9. |
VOE11305560
|
[1] |
Pump flange
|
|
