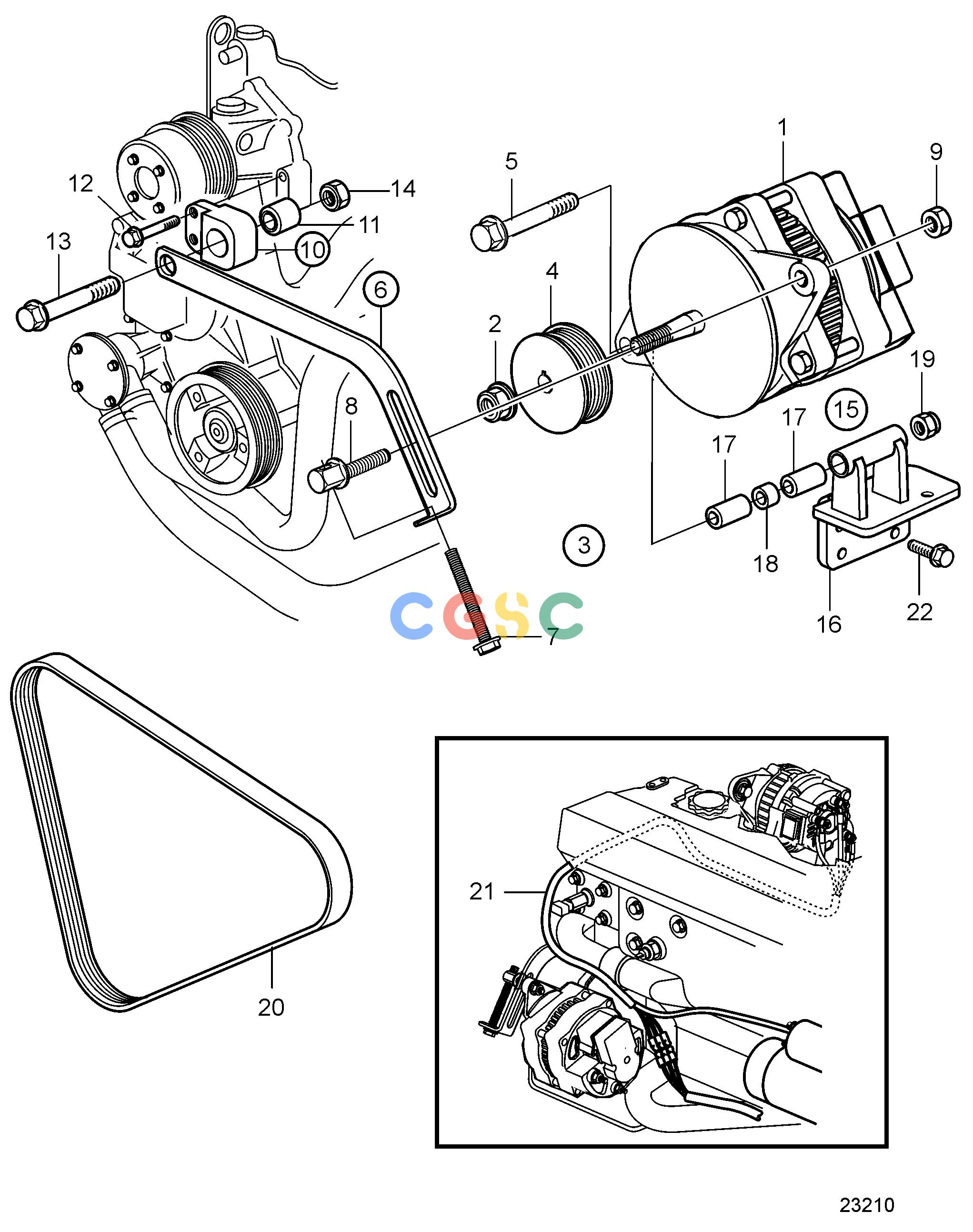

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FElectrical SystemMounting Kit for Mastervolt AltenatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
409 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Not marketed by Volvo Penta.
|
| 2. |
|
|
|
|
| 3. |
21281679
|
[1] |
Alternator kit
|
|
| 4. |
3818325
|
[1] |
Pulley
|
|
| 5. |
978447
|
[4] |
Flange screw
|
|
| 6. |
|
|
|
|
| 7. |
977820
|
[1] |
Hexagon screw
|
|
| 8. |
861663
|
[1] |
Flange screw
|
|
| 9. |
945408
|
[1] |
Flange nut
|
|
| 10. |
|
|
|
|
| 11. |
859071
|
[1] |
Bushing
|
|
| 12. |
945444
|
[2] |
Flange screw
|
|
| 13. |
965193
|
[1] |
Flange screw
|
|
| 14. |
971096
|
[1] |
Flange nut
|
|
| 15. |
|
|
|
|
| 16. |
|
|
|
|
| 17. |
859574
|
[2] |
Bushing
|
|
| 18. |
859072
|
[1] |
Sleeve
|
|
| 19. |
971096
|
[1] |
Flange nut
|
|
| 20. |
991619
|
[1] |
V-ribbed belt
|
|
| 21. |
3886482
|
[1] |
Wiring harness
|
|
| 22. |
3583794
|
[4] |
Screw
|
|
