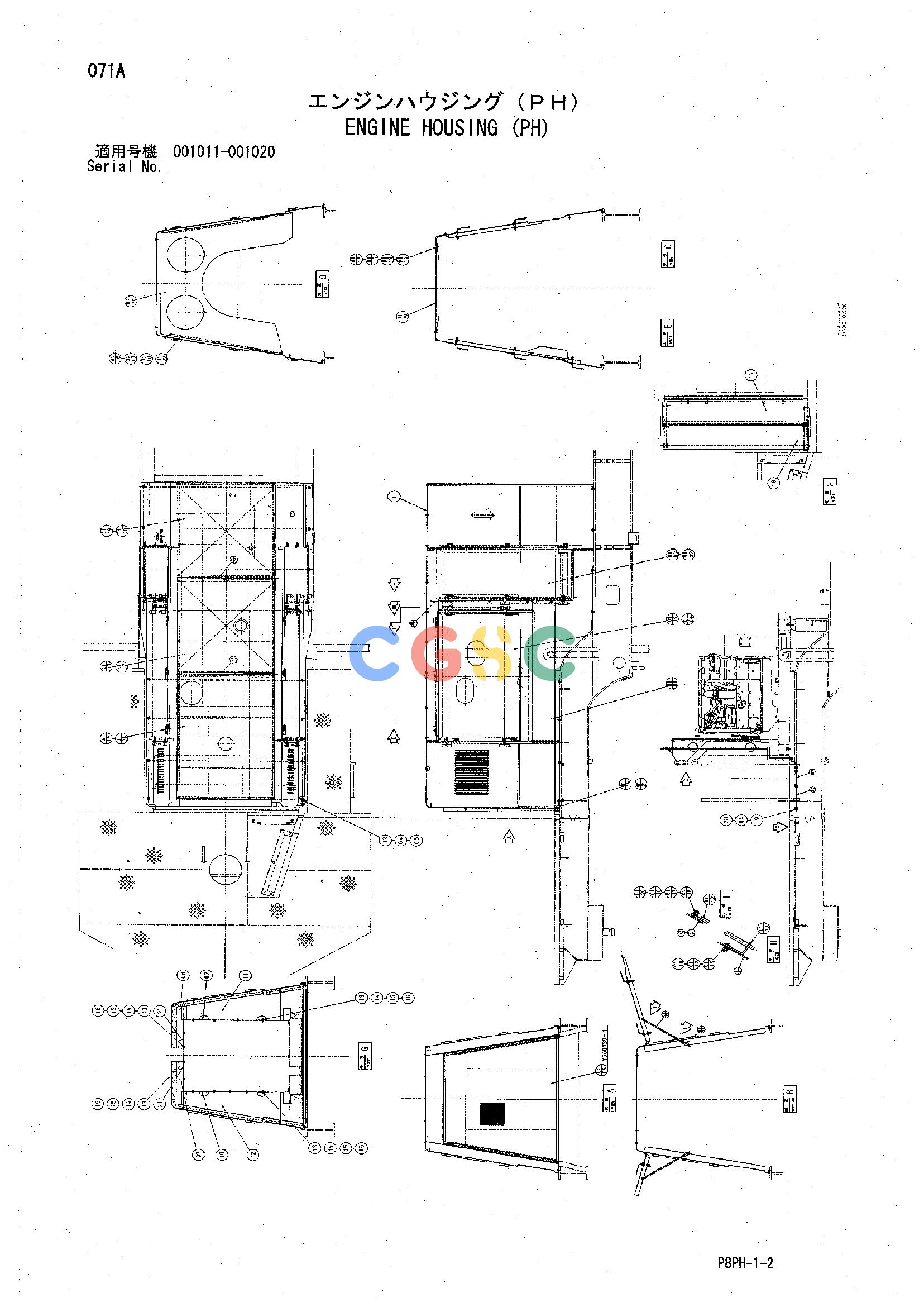

日立零件查询（AR2000）ENGINE HOUSING (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
766 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y409481 | [1] | ENGINE HOUSING | |
| 0101. | Y500226 | [1] | WELDED HOUSING | |
| 0102. | Y801679 | [1] | LEFT DOOR | |
| 0103. | Y801680 | [1] | RIGHT DOOR | |
| 0104. | Y801681 | [1] | LEFT COVER | |
| 0105. | Y700739 | [1] | COVER | |
| 0106. | Y700734 | [1] | ROOF | |
| 0107. | Y700735 | [1] | ROOF | |
| 0108. | Y700736 | [1] | ROOF | |
| 0109. | Y801683 | [2] | BEAM | |
| 0110. | Y301357 | [1] | PARTITION | |
| 0111. | Y801682 | [1] | RIGHT COVER | |
| 0112. | Y970890 | [2] | SUPORT | |
| 0113. | Y970923 | [2] | BRACKET | |
| 0114. | M470820 | [4] | SCREW | |
| 0115. | J020825 | [8] | BOLT;SEMS | |
| 0116. | M500807 | [16] | NUT | |
| 0117. | A590108 | [24] | WASHER;PLANE | |
| 0118. | A590908 | [16] | WASHER;SPRING | |
| 0119. | J020820 | [32] | BOLT;SEMS | |
| 0120. | A590110 | [2] | WASHER;PLANE | |
| 0121. | J217083 | [8] | WASHER | |
| 0122. | J900820 | [8] | BOLT | |
| 03. | J921030 | [16] | BOLT | |
| 04. | A590910 | [22] | WASHER;SPRING | |
| 05. | J217083 | [16] | WASHER | |
| 07. | Y971079 | [1] | COVER | |
| 08. | Y971080 | [1] | COVER | |
| 09. | Y410325 | [1] | SPACER | |
| 10. | Y410326 | [1] | SPACER | |
| 11. | Y801864 | [1] | COVER | |
| 12. | Y801865 | [1] | COVER | |
| 13. | J900820 | [13] | BOLT | |
| 14. | A590908 | [13] | WASHER;SPRING | |
| 15. | A590108 | [26] | WASHER;PLANE | |
| 16. | M500807 | [13] | NUT | |
| 17. | Y971077 | [1] | COVER | |
| 18. | Y410321 | [1] | COVER | |
| 19. | J901020 | [6] | BOLT | |
| 20. | A590110 | [6] | WASHER;PLANE | |
| 21. | Y410552 | [2] | SPACER | |
