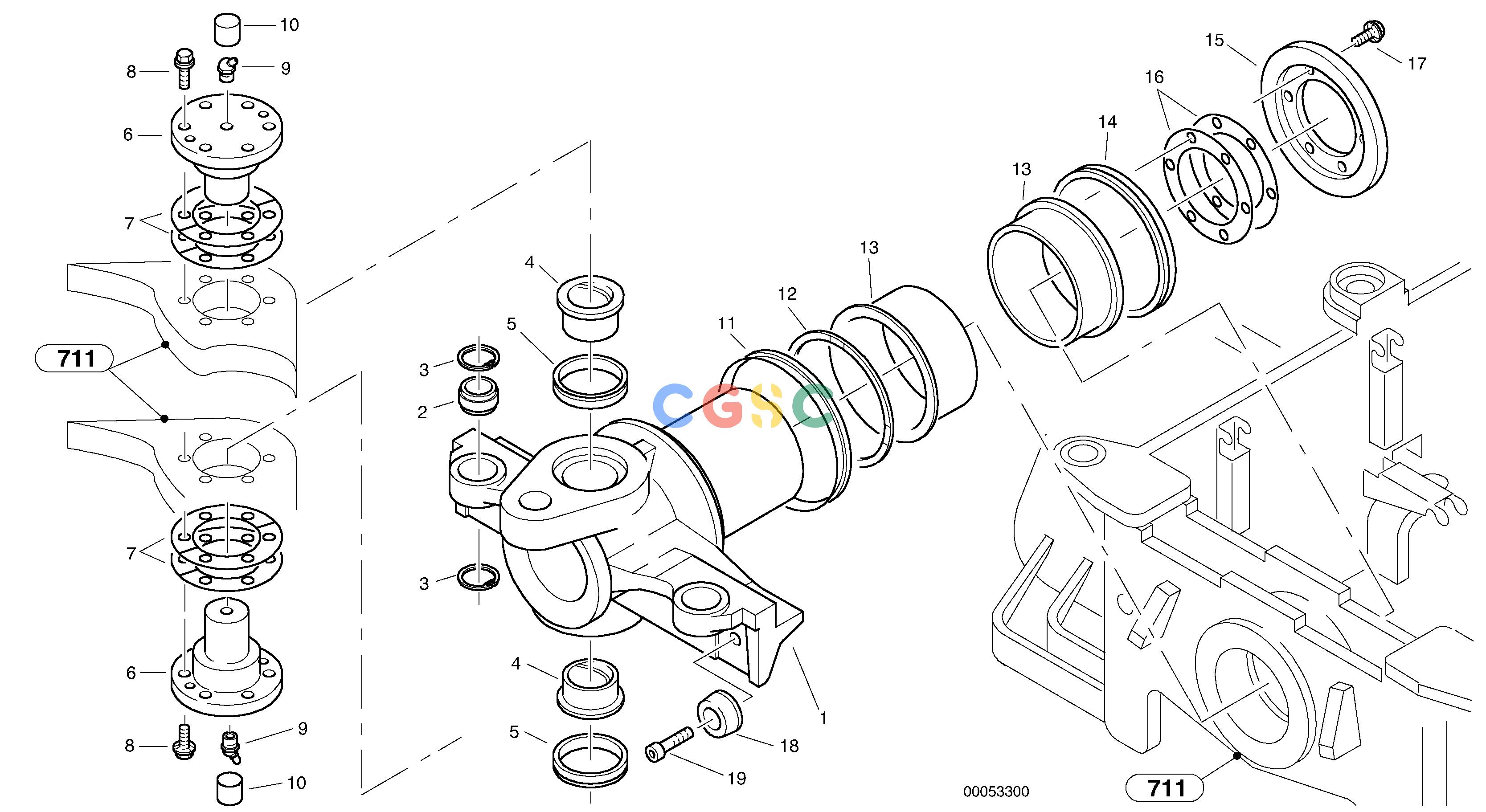

沃尔沃零件查询L35 Articulation pointTYPE 186, 188, 189 SER NO - 22001860310--1880023-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
919 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2815784
|
[1] |
Pivot pin
|
|
| 8. |
VOE11306526
|
[12] |
Lock screw
|
M12x35
|
| 9. |
VOE11306484
|
[2] |
Lubricating nipple
|
CM10x1
|
| 10. |
ZM4384287
|
[2] |
Plug
|
|
| 11. |
ZM2809128
|
[1] |
Sealing ring
|
|
| 12. |
ZM2815786
|
[1] |
Bearing washer
|
|
| 13. |
VOE15240277
|
[2] |
Bearing bushing
|
|
| 14. |
ZM2809127
|
[1] |
V-ring
|
|
| 15. |
ZM2811916
|
[1] |
Cover
|
|
| 16. |
ZM2808718
|
[REQ] |
Washer
|
0,3 mm
|
| 16. |
ZM2808717
|
[REQ] |
Washer
|
0,5 mm
|
| 2. |
VOE183433
|
[1] |
Spherical plain bearing
|
GE30
|
| 17. |
VOE16271754
|
[6] |
Lock Screw
|
M14x80
|
| 18. |
ZM2805284
|
[2] |
Buffer
|
|
| 19. |
ZM7096548
|
[2] |
Screw
|
M10x20
|
| 3. |
VOE914526
|
[2] |
Retaining ring
|
47x1,75
|
| 4. |
ZM2811211
|
[2] |
Collar bush
|
|
| 5. |
VOE13949268
|
[2] |
Sealing ring
|
|
| 6. |
VOE15234987
|
[2] |
Bearing Bolt
|
|
| 7. |
ZM2808719
|
[REQ] |
Washer
|
0,3 mm
|
| 7. |
ZM2808720
|
[REQ] |
Washer
|
0,5 mm
|
| 7. |
ZM2808721
|
[REQ] |
Washer
|
1,0 mm
|
