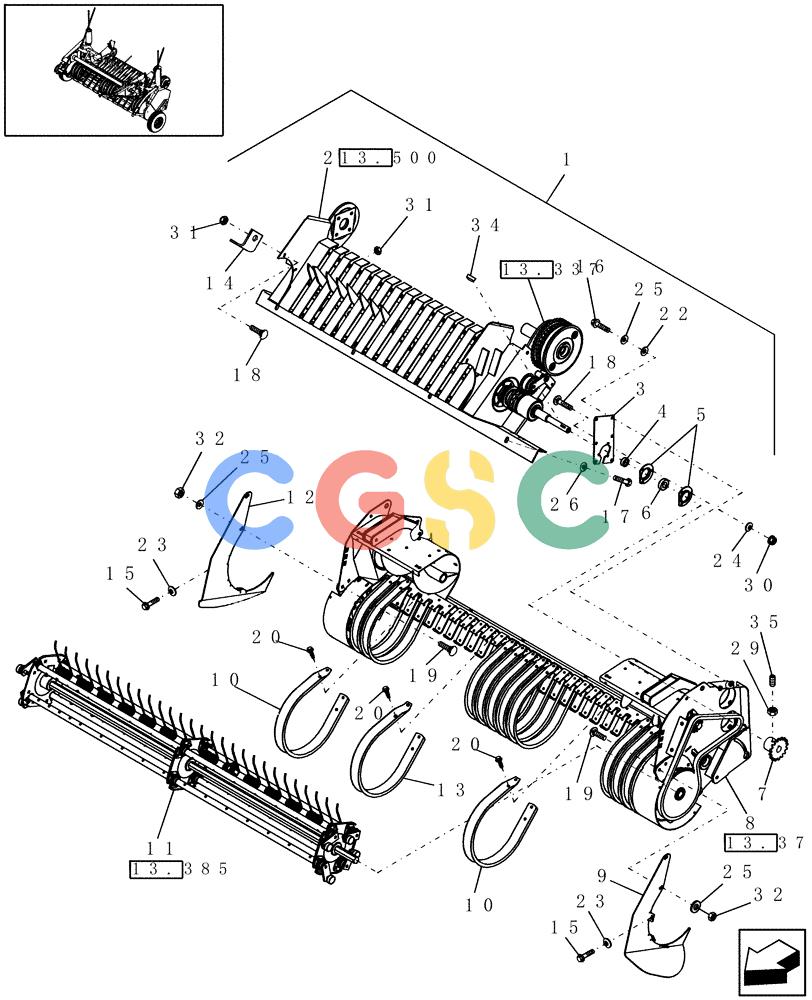

| 1. |
87038216
|
[1] |
PICK-UP
|
PA
1.8M Wide Dual Cam & Stuffer Feeder Superseded by part number: 87056269
|
| 2. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Stuffer Feeder, Dry Hay
|
| 3. |
87042087
|
[1] |
PLATE
|
PA
Superseded by part number: 87654729
|
| 4. |
455102R21
|
[1] |
COLLAR
|
IH
Locking, Includes: Set Screw Superseded by part number: 47577183
|
| 5. |
86603075
|
[2] |
FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm
|
NH
|
| 6. |
214366C91
|
[1] |
BALL BEARING,25.40mm ID x 52mm OD
|
IH
Ball Superseded by part number: 204807C91
|
| 7. |
87041635
|
[1] |
SPROCKET
|
PA
17T, RC 50, Standard Superseded by part number: 87047646
|
| 7. |
87055082
|
[1] |
SPROCKET
|
PA
18T, RC 50, Optional Superseded by part number: 87397995
|
| 7. |
87602188
|
[1] |
SPROCKET
|
NH
17T, RC 50
|
| 9. |
87053734
|
[1] |
GUARD
|
PA
Flare, LH
|
| 10. |
86643381
|
[10] |
GUARD
|
NH
|
| 12. |
87053732
|
[1] |
GUARD
|
PA
Flare, RH Superseded by part number: 84324676
|
| 13. |
87055363
|
[1] |
GUARD ASSY.
|
PA
|
| 14. |
66463
|
[4] |
BRACKET
|
PA
Superseded by part number: 87657039
|
| 15. |
844-6020
|
[6] |
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804256
|
| 16. |
844-10030
|
[6] |
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9840672
|
| 17. |
614-12030
|
[8] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 18. |
811-8020
|
[11] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 19. |
614-8025
|
[15] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43127
|
| 20. |
87039762
|
[108] |
SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"
|
PA
Superseded by part number: 570821
|
| 22. |
495-21044
|
[6] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 23. |
322357
|
[6] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 24. |
322358
|
[3] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 25. |
140045
|
[6] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 26. |
140046
|
[8] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 29. |
825-1410
|
[2] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 30. |
825-2408
|
[3] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 31. |
832-46408
|
[23] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 34. |
126-24
|
[1] |
WOODRUFF KEY,#15, 1/4" x 1"
|
CAS
Superseded by part number: 47471
|
| 35. |
300483
|
[2] |
SET SCREW,M10 x 25mm
|
PA
|
| 36. |
36686
|
[1] |
SPACER
|
GI
Superseded by part number: 87654833
|
