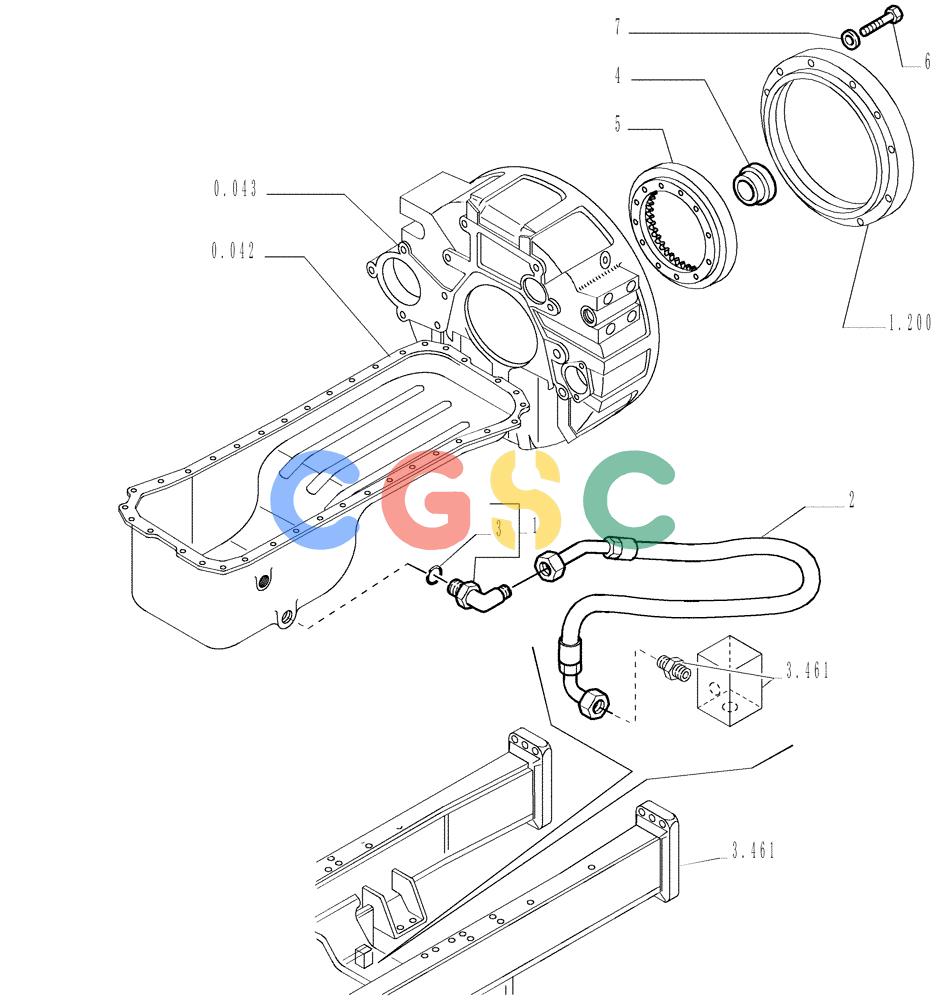

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (0.505[02]) - ENGINE - RELATED PARTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
271 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79087065 | [1] | HYD CONNECTOR | LEC- ASSY -16 a 90° |
| 2. | 76069942 | [1] | FLEXIBLE HOSE | TOR Superseded by part number: 76072468 |
| 4. | 76053528 | [1] | BUSHING | LEC |
| 5. | 76053529 | [1] | SPLINED RING | LEC |
| 6. | 11107731 | [12] | SCREW,Hex, M10 x 75mm, Cl 10.9 | LEC Superseded by part number: 86624979 |
| 7. | 14496631 | [12] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 3. | 14437985 | [1] | O-RING,15.3mm ID x 2.4mm | LEC |
