沃尔沃零件查询L35 Front mudguardTYPE 186, 188, 189 SER NO - 22001860001-1880001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
613 次

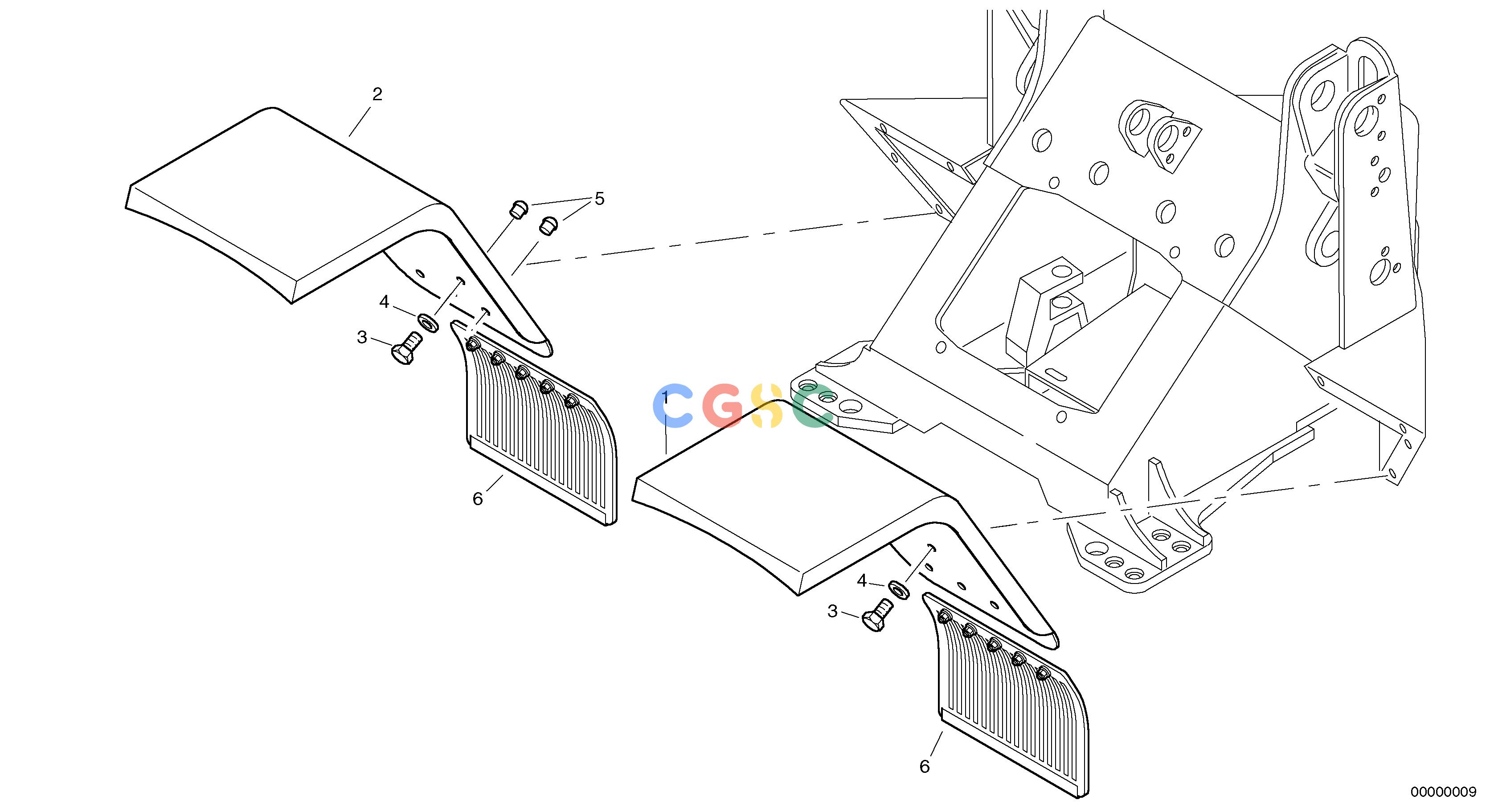

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2812414
|
[1] |
Mudguard
|
-1860198/-1880011
|
| 1. |
ZM2814134
|
[1] |
Mudguard - 75 mm broad
|
1860199-/1880012-
|
| 2. |
ZM2812415
|
[1] |
Mudguard
|
-1860198/-1880011
|
| 2. |
ZM2814134
|
[1] |
Mudguard - 75 mm broad
|
1860199-/1880012-
|
| 3. |
VOE983251
|
[8] |
Hexagon screw
|
M10x25
|
| 4. |
VOE930842
|
[8] |
Plain washer
|
10,5
|
| 5. |
VOE11306518
|
[2] |
Plug
|
1860199-/1880012-
|
| 6. |
ZM2813959
|
[2] |
Mudflap
|
|
