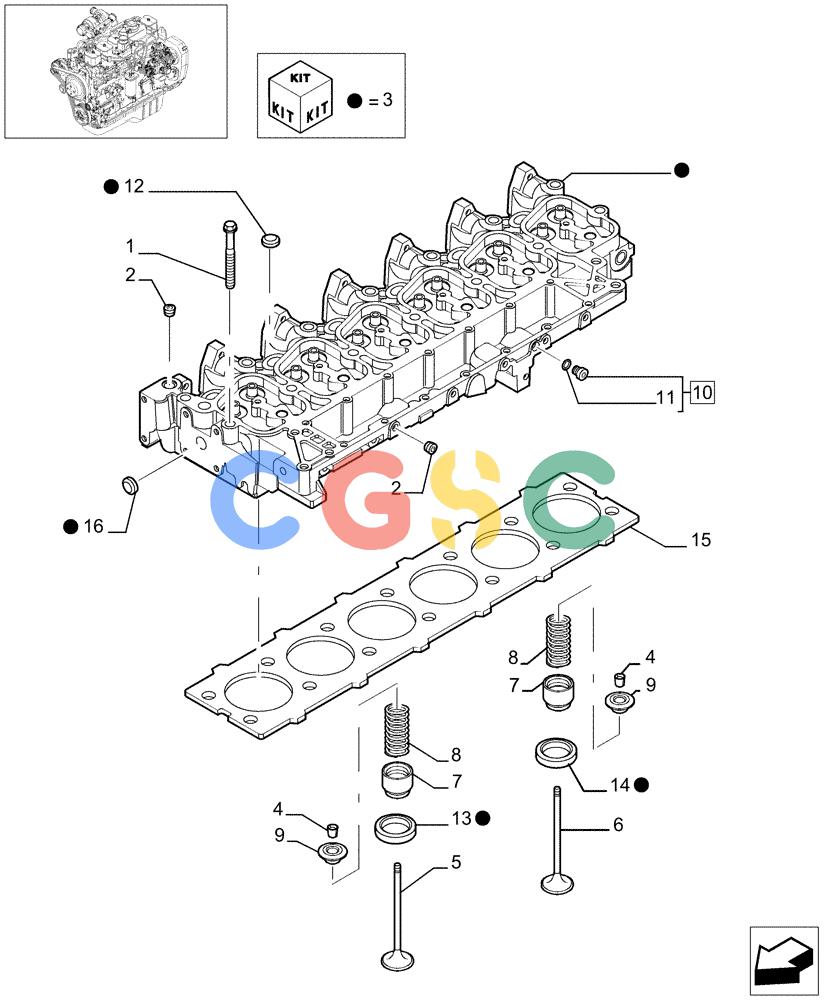

神钢零件查询(F4GE9684B J601) - ENGINE 504124794 - 920019901 (1/08-12/10) (0.06.0[01]) - CYLINDER HEAD (504085719) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
259 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4892861 | [6] | CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73 | TORM12X130 |
| 1. | 4892859 | [14] | BOLT,Flng, M12 x 1.75 x 143mm | TOR |
| 2. | 4895078 | [5] | PIPE PLUG,1/2"-14 | TOR |
| 3. | 4895765 | [1] | CYLINDER HEAD | TOR- ASSY |
| 4. | 4895183 | [24] | COLLET | TOR |
| 5. | 4899632 | [6] | STD EXHAUST VALVE | TORSTD ENGINE EXHAUST VALVE |
| 6. | 4895187 | [6] | STD INLET VALVE | TORSTD ENGINE INLET VALVE |
| 7. | 4895347 | [12] | SEAL | TOR |
| 8. | 4895215 | [12] | VALVE SPRING,Compression, 32.8mm OD x 63.5 mmL | TOR |
| 9. | 4895184 | [12] | RETAINER,34mm OD, 10.63mm ID, 14.5mm L | TOR |
| 10. | 4899009 | [1] | PLUG,M10 x1 | TORAssy |
| 11. | 4899072 | [1] | O-RING,1.6mm Thk x 8.1mm ID | TOR |
| 12. | 4895179 | [3] | EXPANSION PLUG,M20.93 | TOR |
| 13. | 4897178 | [6] | VALVE SEAT,36mm ID x 43mm OD x 6.7mm L | TORExhaust |
| 14. | 4897179 | [6] | VALVE SEAT,38 mmID x 47mm OD x 6.9mm L | TORIntake |
| 15. | 2830922 | [1] | CYLINDER HEAD GASKET,1.4mm Thk | TORSP=1.25 |
| 15. | 2830923 | [1] | CYLINDER HEAD GASKET,1.15mm Thk | TORSP=1.15 |
| 16. | 4895085 | [1] | EXPANSION PLUG,25.74mm | TOROD |
