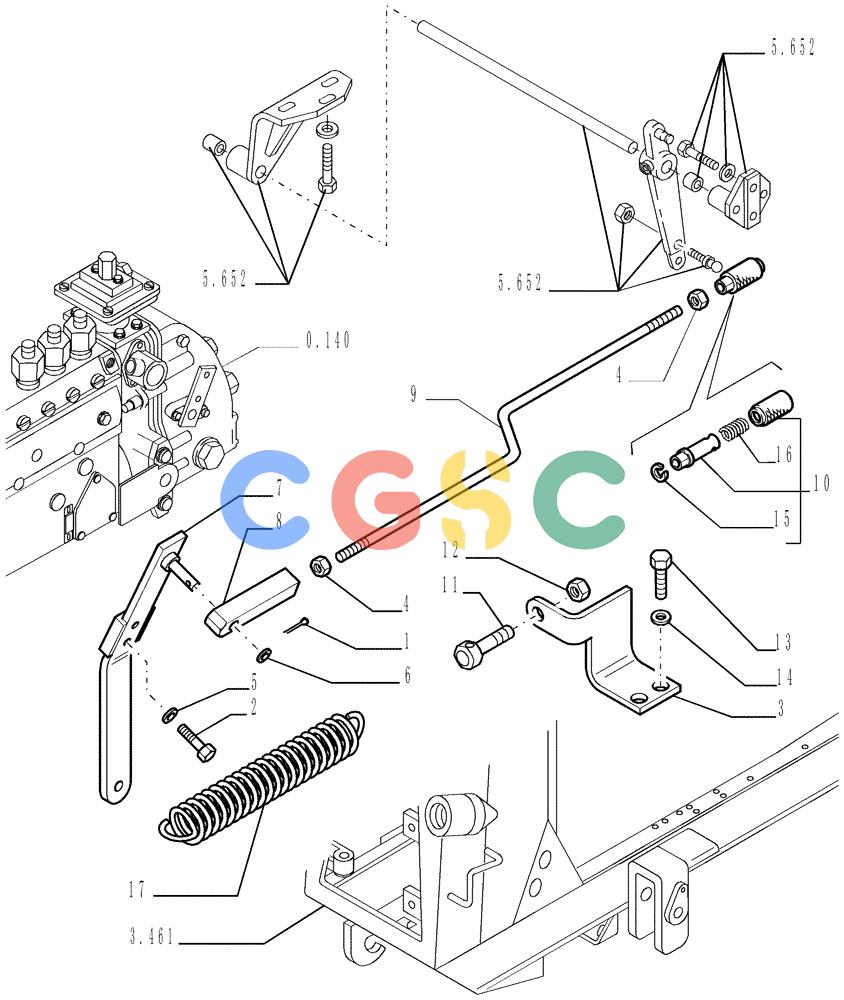

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (0.520[01]) - THROTTLE CONTROL New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
598 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 280250 | [1] | COTTER PIN,3/32" x 3/4" | NH |
| 2. | 10902231 | [2] | SCREW,Hex, M6 x 16mm, Cl 10.9 | LEC Superseded by part number: 86639037 |
| 3. | 76054923 | [1] | SUPPORT | TOR |
| 4. | 11701721 | [2] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 5. | 14496431 | [2] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 6. | 14496531 | [1] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 7. | 76054922 | [1] | ARM | LEC |
| 8. | 79103108 | [1] | CLEVIS | LEC |
| 9. | 76054921 | [1] | TIE-ROD | TOR Superseded by part number: 76071413 |
| 10. | 79083370 | [1] | QUICK MALE COUPLING | LEC- ASSY |
| 11. | 79087649 | [1] | SCREW | LEC |
| 12. | 16104121 | [1] | NUT,M8 x 1.25, Cl 10 | LEC Superseded by part number: 17152821 |
| 13. | 11106031 | [2] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 14. | 14496631 | [2] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 15. | 13420776 | [1] | RING | LEC |
| 16. | 79086837 | [1] | SPRING | LEC |
| 17. | 79097662 | [1] | SPRING | LEC |
