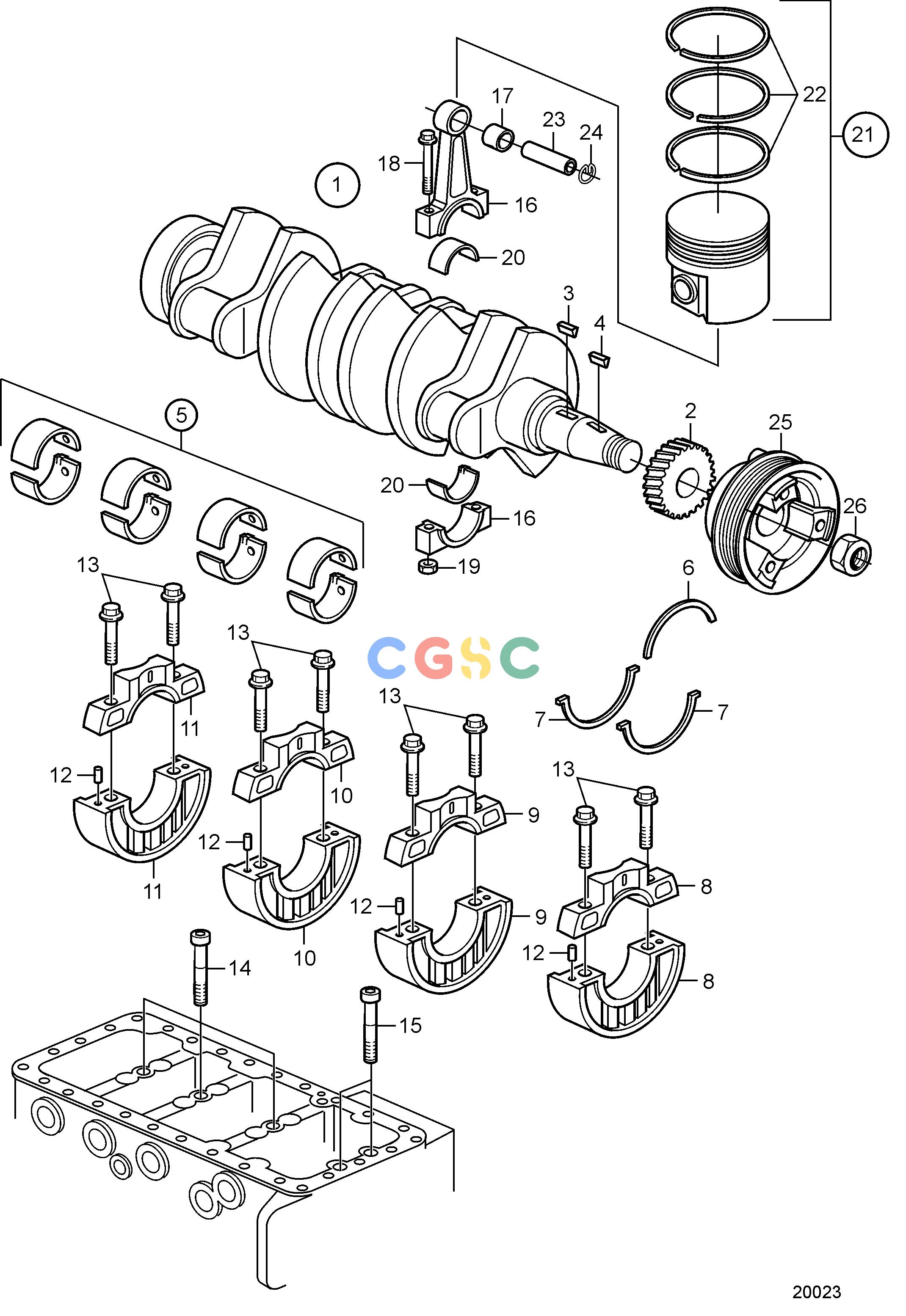

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FEngineCrank MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
490 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3583549
|
[1] |
Crankshaft
|
|
| 2. |
3580532
|
[1] |
Gear
|
D2-75A, D2-75B, D2-75C
|
| 2. |
21274781
|
[1] |
Gear
|
D2-75F
|
| 3. |
861969
|
[1] |
Woodruff key
|
|
| 4. |
861934
|
[1] |
Key
|
|
| 5. |
877387
|
[1] |
Main bearing kit
|
|
| 6. |
3583674
|
[1] |
Thrust washer, upper
|
|
| 7. |
3580543
|
[2] |
Thrust washer, lower
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
965221
|
[8] |
Flange screw
|
|
| 14. |
965188
|
[3] |
Flange screw
|
|
| 15. |
3583673
|
[2] |
Screw
|
|
| 16. |
3583683
|
[4] |
Connecting rod
|
|
| 17. |
3580553
|
[1] |
Bushing
|
|
| 18. |
3580554
|
[2] |
Screw
|
|
| 19. |
3580555
|
[2] |
Nut
|
|
| 20. |
877388
|
[1] |
Big-end bearing kit
|
|
| 21. |
21301841
|
[4] |
Piston kit
|
|
| 22. |
21301848
|
[4] |
Piston ring kit
|
|
| 23. |
3580550
|
[4] |
Gudgeon pin
|
|
| 24. |
3580551
|
[8] |
Lock ring
|
|
| 25. |
3584084
|
[1] |
Pulley
|
D2-75A, D2-75B, D2-75C
|
| 25. |
21194509
|
[1] |
Pulley
|
D2-75F
|
| 26. |
3580563
|
[1] |
Nut
|
|
