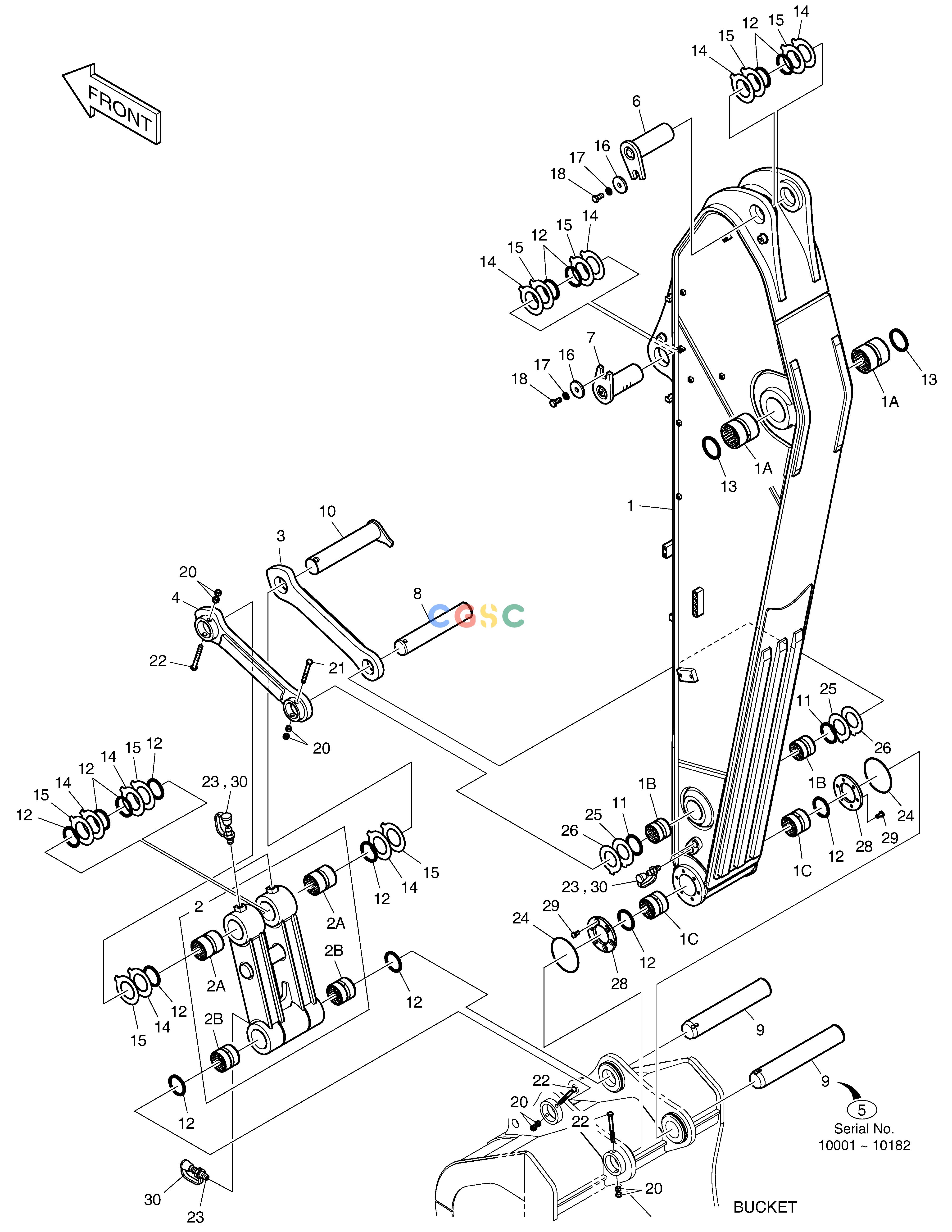

斗山零件查询ARM - 3.2m(HEAVY DUTY) DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
568 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230201-00303
|
[-] |
|
|
| 1. |
230204-00346A
|
[1] |
|
|
| 1. |
230204-00346
|
[1] |
|
230204-00346A
|
| 10. |
120501-00145B
|
[1] |
|
|
| 11. |
DS5502006
|
[2] |
|
|
| 12. |
DS5502014
|
[14] |
PARE-POUSSIERES
|
|
| 13. |
DS5502015
|
[2] |
PARE-POUSSIERES
|
|
| 14. |
DS7752045
|
[8] |
CALE
|
|
| 15. |
DS7752046
|
[8] |
SHIM
|
|
| 16. |
2116-1060D5
|
[2] |
STOPPER
|
|
| 17. |
2114-1816A
|
[2] |
WASHER
|
|
| 18. |
S0521366
|
[2] |
BOLT
|
|
| 1A. |
131004-00115
|
[2] |
|
|
| 1B. |
131004-00001B
|
[2] |
|
|
| 1C. |
131004-00013B
|
[2] |
|
|
| 2. |
101541-00047A
|
[1] |
|
|
| 20. |
S4013133
|
[8] |
NUT
|
|
| 21. |
DS0001085
|
[1] |
BOLT
|
|
| 22. |
DS0001086
|
[3] |
BOLT
|
|
| 23. |
S6710041
|
[5] |
NIPPLE,GREASE
|
|
| 24. |
180-00077D7
|
[2] |
O-RING
|
|
| 25. |
DS7752015
|
[2] |
SHIM
|
|
| 26. |
DS7752016
|
[2] |
SHIM
|
|
| 28. |
K1005780
|
[2] |
SPACER
|
|
| 29. |
120106-00506
|
[12] |
|
|
| 29. |
120-00223
|
[12] |
BOLT M12X1.25X25
|
120106-00506
|
| 2A. |
131004-00015B
|
[2] |
|
|
| 2B. |
131004-00016B
|
[2] |
|
|
| 3. |
101540-00023A
|
[1] |
|
|
| 30. |
160-00020
|
[5] |
CAP
|
|
| 4. |
K1000396
|
[1] |
LINK;GUIDE(L.H)
|
|
| 5. |
120501-01088
|
[1] |
|
|
| 6. |
120501-01087
|
[1] |
|
|
| 7. |
120501-00144
|
[1] |
|
|
| 8. |
120501-01089
|
[1] |
|
|
| 9. |
120501-01090
|
[2] |
|
120501-01090A
|
| 9. |
120501-01090A
|
[2] |
|
|
| 9. |
120501-01090
|
[1] |
|
|
