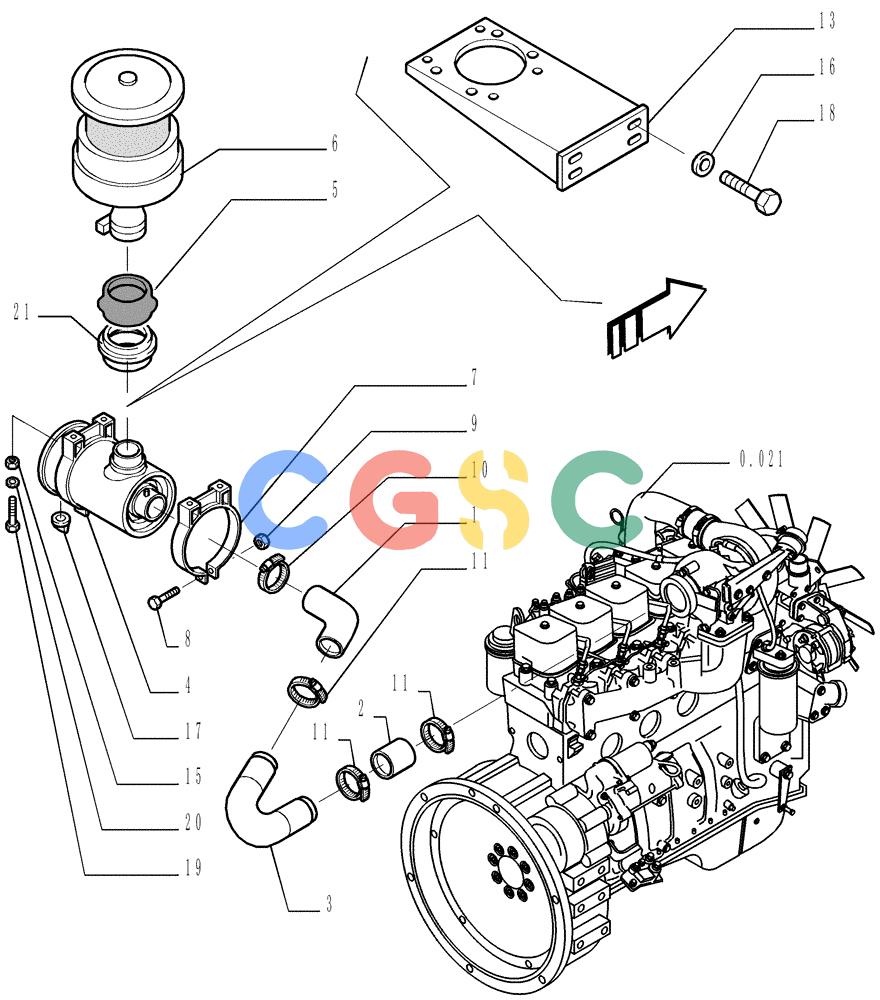

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (0.540[01]) - AIR CLEANER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
874 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76068168 | [1] | HOSE | LEC |
| 2. | 76053633 | [1] | HOSE | TOR |
| 3. | 76053632 | [1] | RIGID TUBE | LEC |
| 4. | 76029251 | [1] | AIR CLEANER | LEC- ASSY SEE TAV. 2 |
| 5. | 79092237 | [1] | HOSE | LEC |
| 6. | 76046298 | [1] | AIR PRE-CLEANER ASSY | LEC Superseded by part number: 75248762 |
| 7. | 79106929 | [2] | BRACKET | LEC |
| 8. | 16044031 | [2] | BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9 | LEC Superseded by part number: 9780069 |
| 9. | 16100821 | [2] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 10. | 79083854 | [1] | HOSE CLAMP,120mm - 145mm, Worm Gear | LEC Superseded by part number: 71421022 |
| 11. | 79083852 | [3] | HOSE CLAMP,100mm - 125mm, Worm Gear | LEC100X125 |
| 13. | 76053634 | [1] | BRACKET | LEC |
| 15. | 11701721 | [4] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 16. | 14496631 | [4] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 17. | 73042943 | [1] | DUST VALVE | LEC |
| 18. | 11106231 | [4] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 19. | 16043631 | [4] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 20. | 12645031 | [4] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 21. | 79106926 | [1] | RING | LEC |
