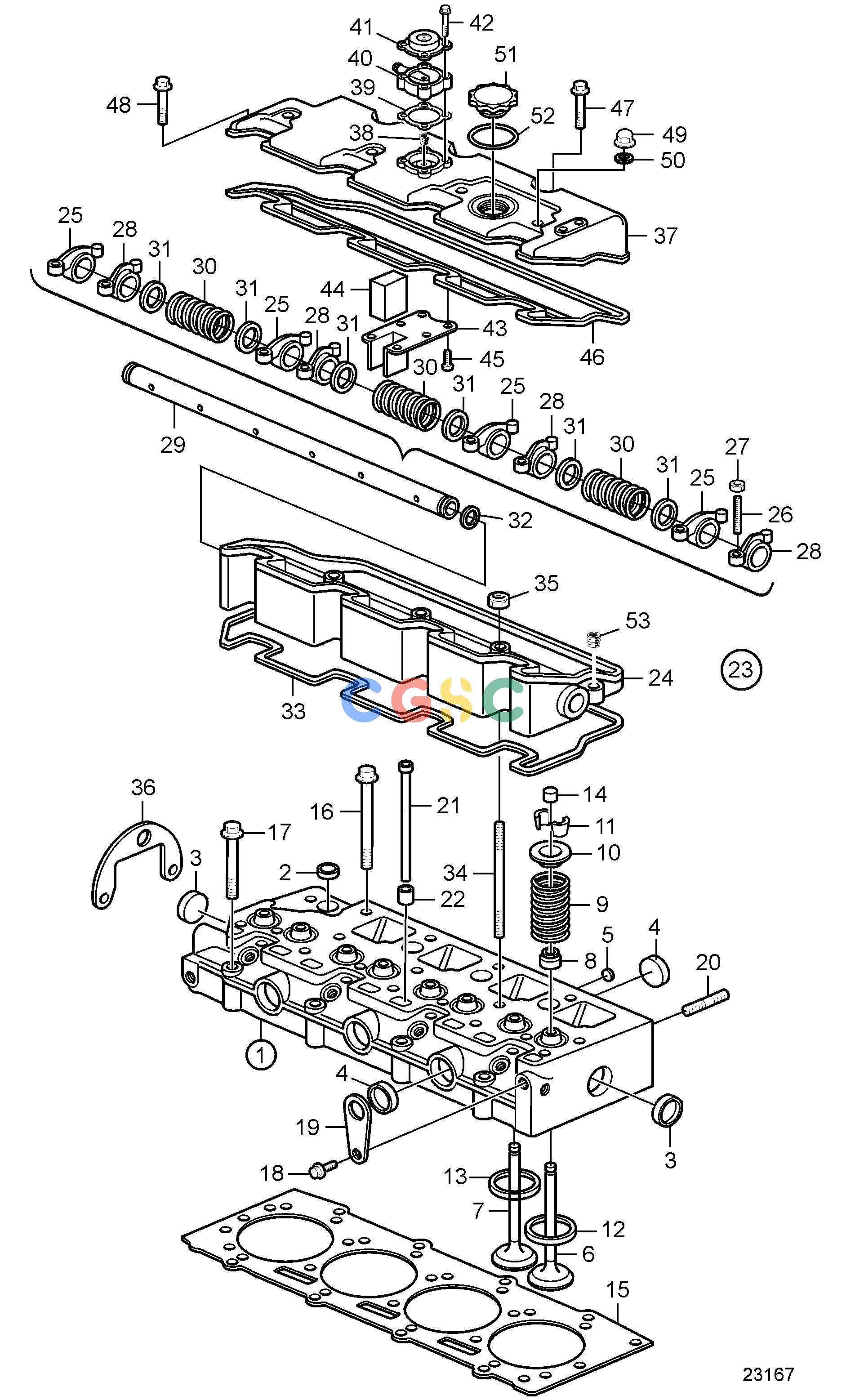

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
685 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3584103
|
[1] |
Cylinder head
|
|
| 2. |
861802
|
[7] |
Expansion plug
|
Replaced by 3886428
|
| 2. |
3886428
|
[7] |
Expansion plug
|
|
| 3. |
3886441
|
[2] |
Expansion plug
|
|
| 4. |
3583696
|
[6] |
Expansion plug
|
|
| 5. |
3580477
|
[3] |
Expansion plug
|
|
| 6. |
3580478
|
[4] |
Inlet valve
|
|
| 7. |
21733891
|
[4] |
Exhaust valve
|
|
| 8. |
3580306
|
[4] |
Valve stem seal, intake
|
|
| 8. |
3580305
|
[4] |
Valve stem seal, exhaust
|
|
| 9. |
3580964
|
[8] |
Valve spring
|
|
| 10. |
3580307
|
[8] |
Valve spring washer
|
|
| 11. |
3580308
|
[16] |
Valve cone
|
|
| 12. |
3842086
|
[4] |
Valve seat, intake
|
|
| 13. |
3809624
|
[4] |
Valve seat, intake
|
|
| 14. |
21250646
|
[8] |
Valve cap
|
|
| 15. |
21228429
|
[1] |
Cylinder head gasket
|
|
| 16. |
3580483
|
[14] |
Screw
|
|
| 17. |
3580484
|
[4] |
Screw
|
|
| 18. |
861870
|
[1] |
Screw
|
|
| 19. |
3583556
|
[1] |
Lifting eye
|
|
| 20. |
3580520
|
[4] |
Stud
|
|
| 21. |
3583662
|
[8] |
Push rod
|
|
| 22. |
3580464
|
[8] |
Tappet
|
|
| 23. |
3583543
|
[1] |
Rocker arm
|
Complete
|
| 24. |
|
|
|
|
| 25. |
3580487
|
[4] |
Rocker arm
|
|
| 26. |
861877
|
[8] |
Screw
|
|
| 27. |
861878
|
[8] |
Nut
|
|
| 28. |
3580486
|
[4] |
Rocker arm
|
|
| 29. |
3583547
|
[1] |
Shaft
|
|
| 30. |
3580490
|
[3] |
Spring
|
|
| 31. |
3580491
|
[6] |
Adjusting washer
|
|
| 32. |
861997
|
[1] |
O-ring
|
|
| 33. |
3583546
|
[1] |
Gasket
|
|
| 34. |
3580493
|
[4] |
Stud
|
|
| 35. |
3583664
|
[4] |
Nut
|
|
| 36. |
|
|
|
|
| 37. |
3584114
|
[1] |
Valve cover
|
|
| 38. |
3809690
|
[1] |
Plug
|
|
| 39. |
3584112
|
[1] |
Gasket
|
|
| 40. |
3584111
|
[1] |
Adapter
|
|
| 41. |
3583660
|
[1] |
Breather pipe
|
|
| 42. |
3584113
|
[4] |
Screw
|
|
| 43. |
3583661
|
[1] |
Retainer
|
|
| 44. |
3580320
|
[1] |
Filter
|
|
| 45. |
3583663
|
[6] |
Screw
|
|
| 46. |
889486
|
[1] |
Gasket
|
|
| 47. |
965178
|
[3] |
Flange screw
|
(3580054)
|
| 48. |
3580258
|
[2] |
Screw
|
|
| 49. |
3580241
|
[4] |
Nut
|
|
| 50. |
3580499
|
[4] |
Gasket
|
|
| 51. |
21311518
|
[1] |
Cover
|
|
| 52. |
861897
|
[1] |
O-ring
|
|
| 53. |
3809690
|
[1] |
Plug
|
|
