| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

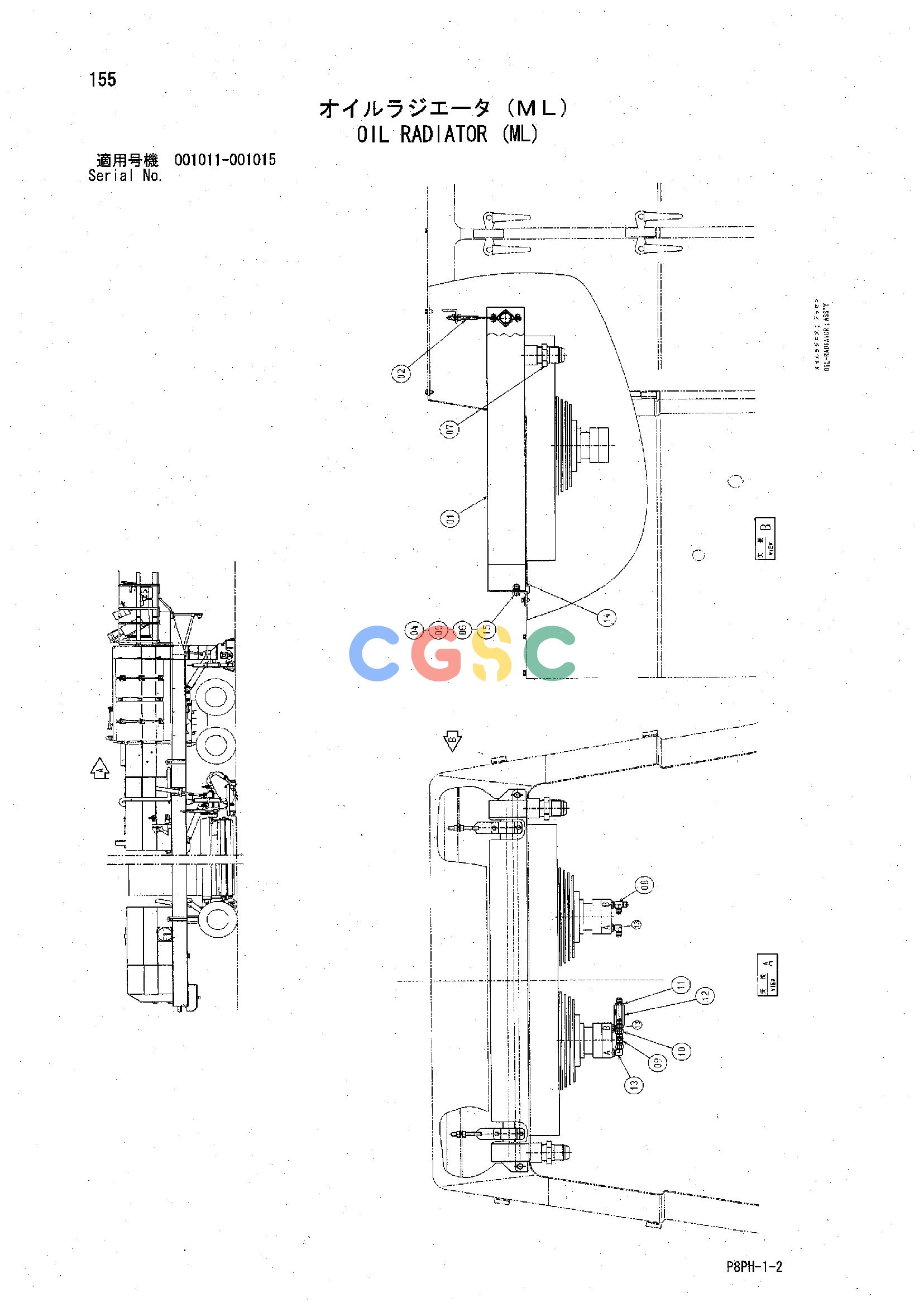

| 01. | 88-0041 | [1] | RADIATOR | THERMAL TRAN A0C-700-3-60-9 |
| 02. | +++++++ | [2] | HANGER | (ML) <for details: see separate page> |
| 04. | J950012 | [2] | NUT | |
| 05. | A590912 | [2] | WASHER;SPRING | |
| 06. | A590112 | [2] | WASHER;PLANE | |
| 07. | Y409394 | [2] | ADAPTER;S | |
| 08. | 88-2097 | [1] | TEE | PARKER 8R50XSS |
| 09. | 88-2009 | [1] | TEE | PARKER 8R6XSS |
| 10. | 88-2098 | [1] | CONNECTOR | PARKER 8F650MXS |
| 11. | 88-2011 | [1] | CONNECTOR | PARKER 8F50XSS |
| 12. | 88-0042 | [1] | VALVE;CHECK | HYCON S10A-0.0/12 |
| 13. | 88-2012 | [3] | ELBOW | PARKER 8C50XSS |
| 14. | Y410329 | [2] | RUBBER | |
| 15. | J901230 | [2] | BOLT |
