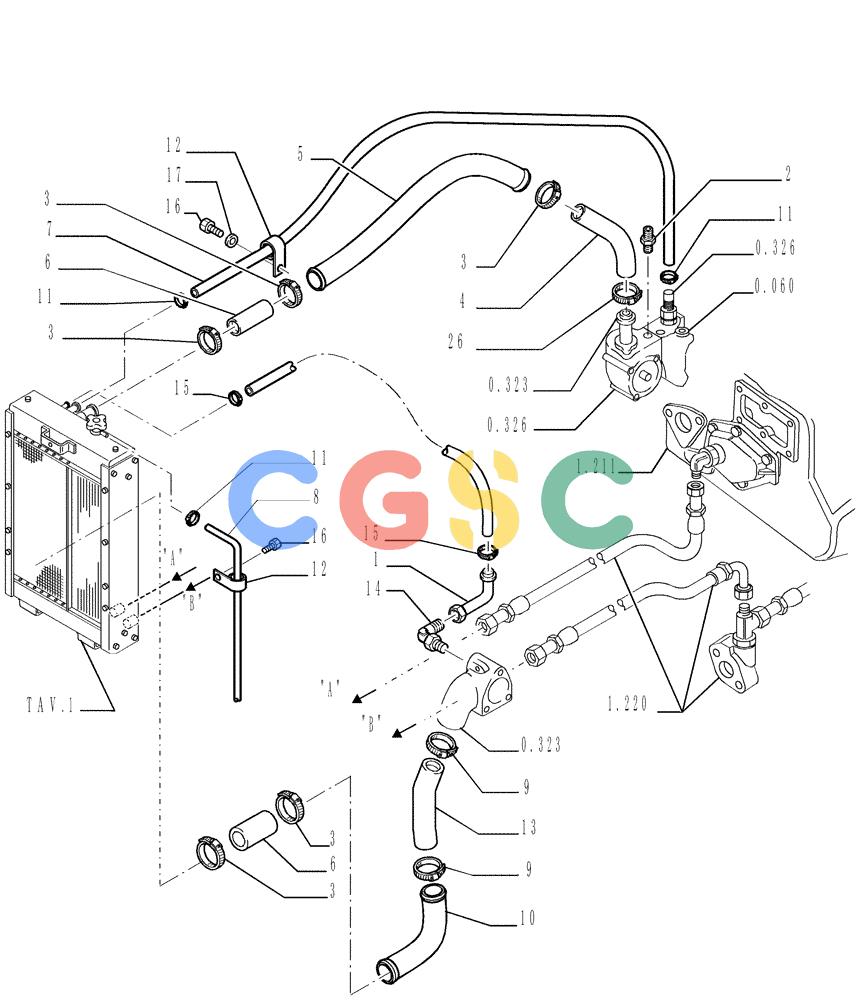

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (0.550[03]) - ENGINE COOLING SYSTEM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
509 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76053641 | [1] | RIGID TUBE | LEC |
| 2. | 70919472 | [1] | HYD CONNECTOR | LEC Superseded by part number: 242680 |
| 3. | 79083846 | [4] | HOSE CLAMP,M40-60 | LEC Superseded by part number: 388655S |
| 4. | 76043912 | [2] | HOSE,45.00 mm ID | LEC |
| 5. | 76053628 | [1] | RIGID TUBE | LEC |
| 6. | 76039648 | [2] | HOSE,57.00 mm ID x 90.00 mm | LEC |
| 7. | 76046752 | [1] | HOSE,10.00 mm ID x 850.00 mm | LEC |
| 8. | 79106016 | [1] | HOSE,7.50 mm ID x 1300.00 mm | LEC Superseded by part number: 19022986 |
| 9. | 79083848 | [2] | HOSE CLAMP,M60-80 | TOR Superseded by part number: 71404503 |
| 10. | 76053627 | [1] | RIGID TUBE | LEC |
| 11. | 79084753 | [3] | HOSE CLIP,M10-18 | LEC |
| 12. | 10450490 | [3] | CLAMP,16mm, Coat, 9mm Bolt Hole, P Type | LEC9mm hole dia. Superseded by part number: |
| 13. | 76054743 | [1] | FLEXIBLE HOSE | LEC Superseded by part number: 78100260 |
| 14. | 70920662 | [1] | ELBOW | LEC90° Superseded by part number: 128828 |
| 15. | 79083844 | [2] | HOSE CLAMP,25mm - 40mm, Worm Gear | LEC25-40 20x40 |
| 16. | 11106431 | [3] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 9515003 |
| 17. | 12626231 | [3] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
