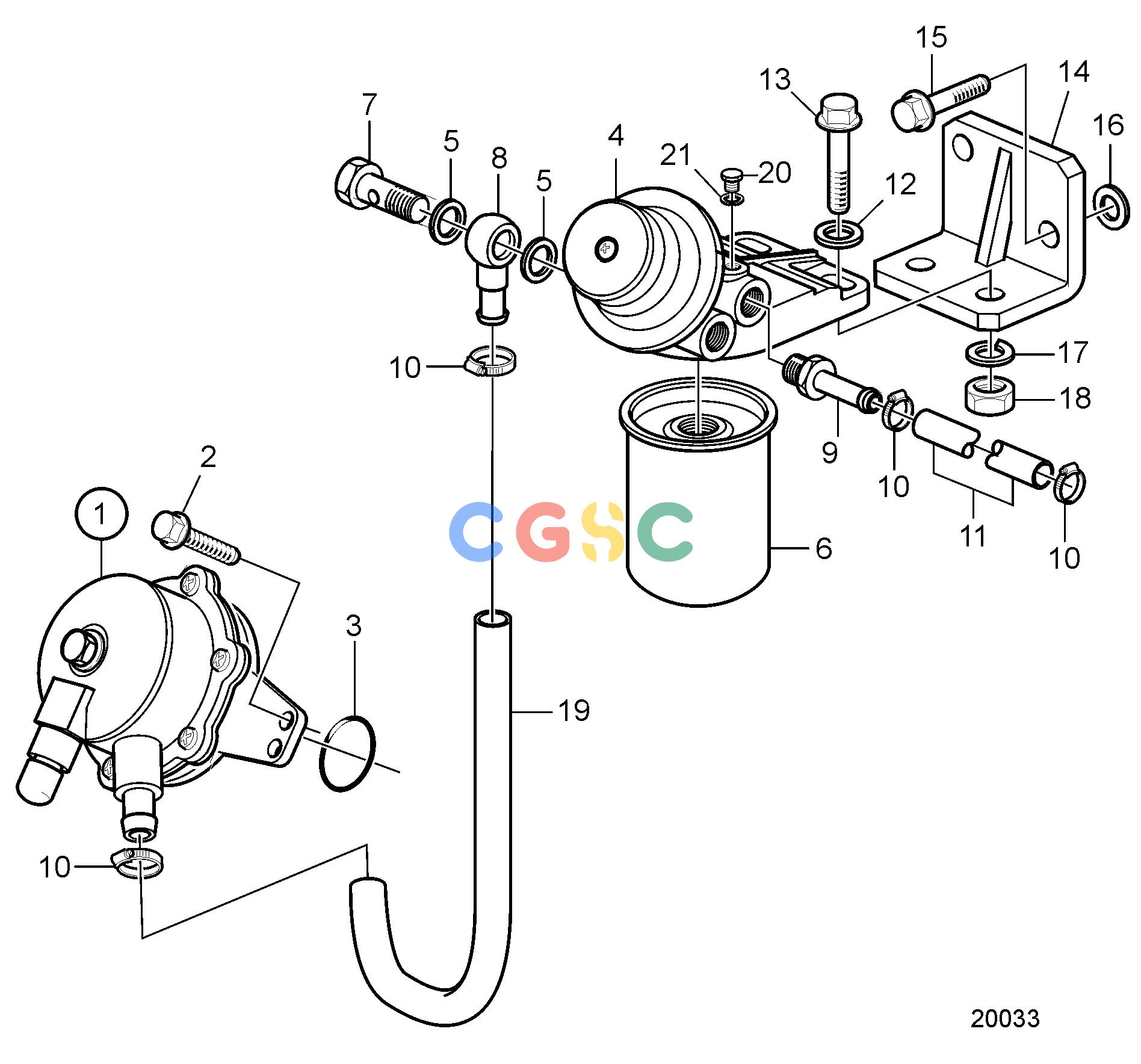

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FFuel SystemFuel Filter and Feed PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
831 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3584126
|
[1] |
Feed pump
|
|
| 2. |
967949
|
[1] |
Flange screw
|
|
| 3. |
3589332
|
[1] |
O-ring
|
|
| 4. |
3584125
|
[1] |
Fuel filter
|
|
| 5. |
969011
|
[5] |
Gasket
|
|
| 6. |
861477
|
[1] |
Fuel filter
|
|
| 7. |
3580098
|
[1] |
Hollow screw
|
|
| 8. |
3580101
|
[1] |
Banjo nipple
|
|
| 9. |
3809680
|
[1] |
Nipple
|
|
| 10. |
961664
|
[4] |
Hose clamp
|
|
| 11. |
3809681
|
[1] |
Hose
|
|
| 12. |
969011
|
[2] |
Gasket
|
|
| 13. |
3809679
|
[2] |
Screw
|
|
| 14. |
3584424
|
[1] |
Bracket
|
Replaced by 21326567
|
| 14. |
21326567
|
[1] |
Bracket
|
To be attached with 3 screws
|
| 15. |
3809679
|
[2] |
Screw
|
|
| 16. |
3580031
|
[2] |
Washer
|
|
| 17. |
3580015
|
[2] |
Spring washer
|
|
| 18. |
971071
|
[2] |
Hexagon nut
|
|
| 19. |
3809681
|
[1] |
Hose
|
|
| 20. |
3589276
|
[1] |
Air nipple
|
|
| 21. |
11991
|
[1] |
Gasket
|
|
