纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (3.461[01]) - MAIN FRAME New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
986 次

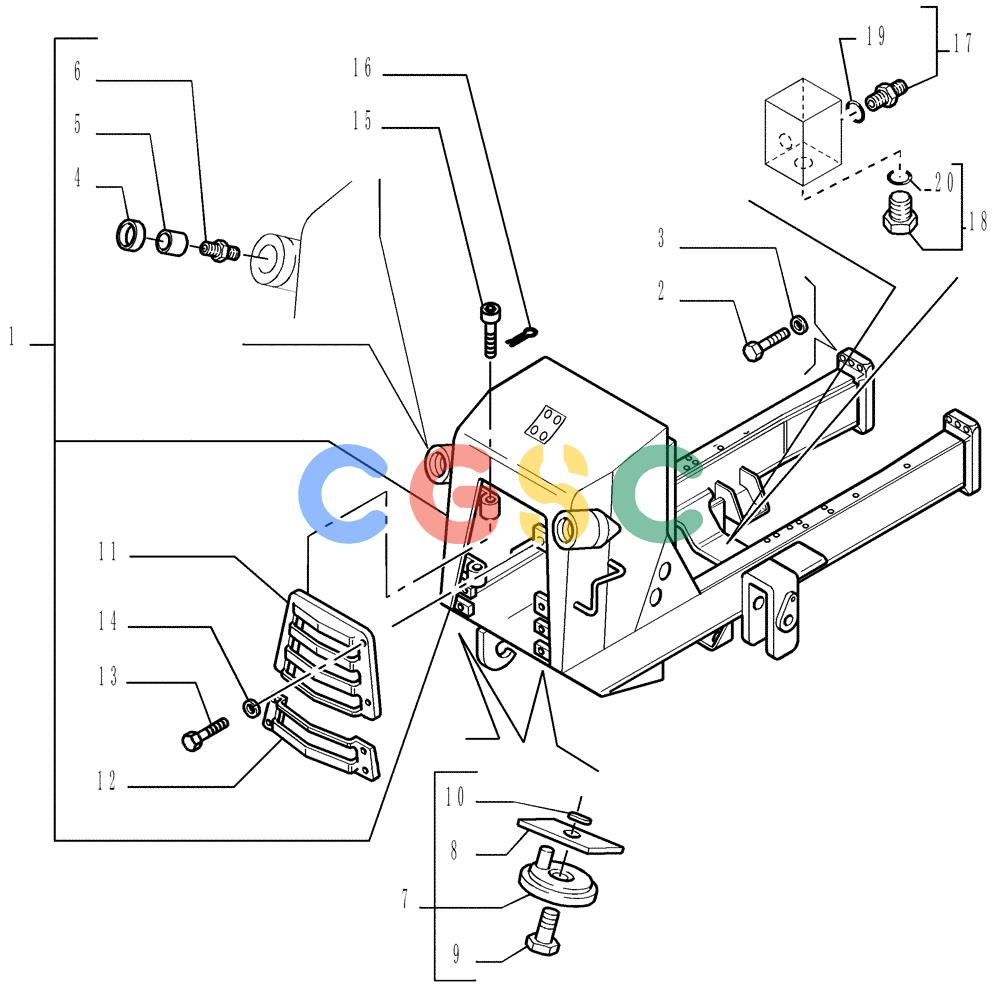

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76052686 | [1] | FRAME | TOR- ASSY |
| 2. | 15988731 | [12] | BOLT,Hex, M20 x 1.5 x 80mm, Cl 10.9 | MKT20X1,5X80 Superseded by part number: 15988737 |
| 3. | 79032222 | [12] | WASHER,21mm ID x 40mm OD x 8mm Thk | LEC |
| 4. | 79087774 | [2] | BUSHING | LEC |
| 5. | 8292010 | [2] | BUSHING,76.2mm ID x 85mm OD x 50mm L | LEC |
| 6. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 7. | 79108556 | [2] | COVER | LEC- ASSY |
| 8. | 79108558 | [1] | STRAP | TOR |
| 9. | 16113531 | [1] | SCREW,M10 x 25.50mm, Cl 10.9 | LEC10X1,25X30 |
| 10. | 14159971 | [1] | COTTER PIN | COE Superseded by part number: 14159970 |
| 11. | 76068067 | [1] | GRILLE | LEC- UPPER |
| 12. | 76068068 | [1] | GRILLE | LEC- LOWER |
| 13. | 11112231 | [6] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 14. | 14496731 | [6] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 15. | 79035385 | [2] | PIN | LEC Superseded by part number: 87617620 |
| 16. | 10798101 | [2] | COTTER PIN,M6.3 x 25 | TTF6,3X25 Superseded by part number: 10796901 |
| 17. | 79066944 | [2] | HYD CONNECTOR | LEC- ASSY |
| 18. | 10118840 | [2] | PLUG,M22 x 1.5 x 18, Brass | LECAssy |
| 19. | 14438085 | [1] | O-RING,19.3mm ID x 2.4mm | JES |
