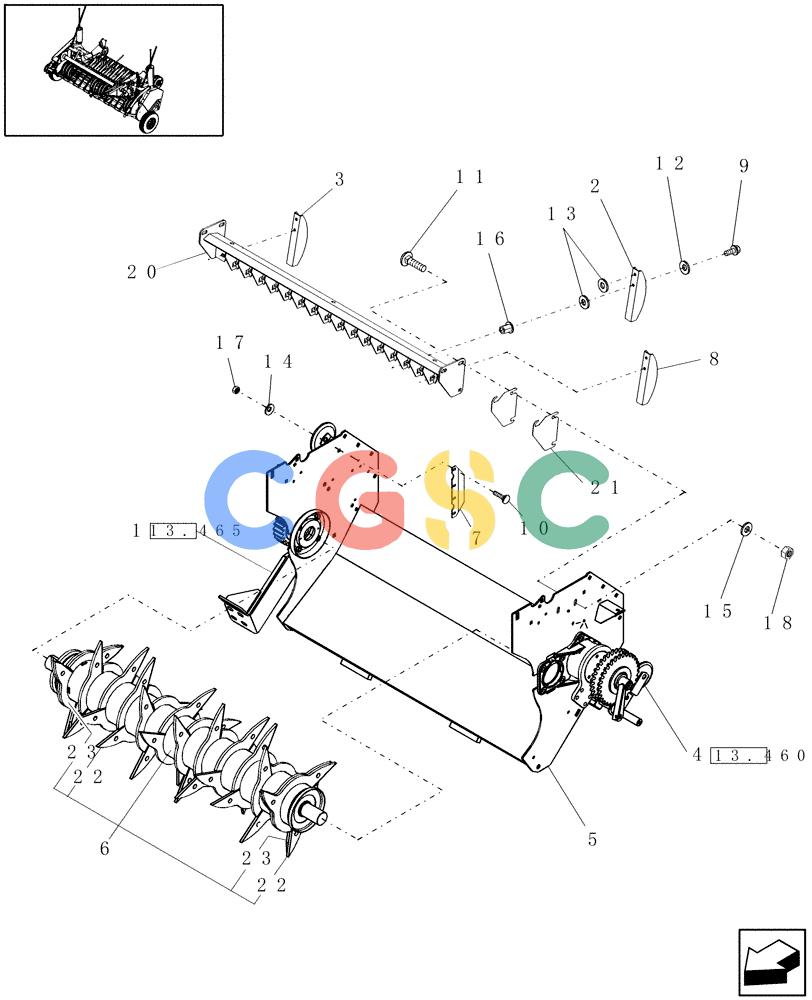

凯斯零件查询(RBX453) - CASE IH ROUND BALER (9/05-12/06) (13.620) - ROTOR FEEDER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
853 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Drive, Rotor, RH
|
| 2. |
87036958
|
[11] |
CHANNEL
|
PA
Superseded by part number: 87648312
|
| 3. |
87043204
|
[1] |
SUPPORT
|
PA
RH Superseded by part number: 87723314
|
| 5. |
87046797
|
[1] |
FRAME ASSY
|
PA
Rotor
|
| 6. |
87036974
|
[1] |
ROTOR
|
PA
Feeder, 5/16" Tk. Fingers - 1 Piece
|
| 7. |
87037768
|
[2] |
DEFLECTOR
|
PA
|
| 8. |
87043203
|
[1] |
SUPPORT
|
PA
LH Superseded by part number: 87648571
|
| 9. |
844-8025
|
[26] |
BOLT,Hvy Hex, M8 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9671714
|
| 10. |
9706703
|
[8] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
NH
|
| 11. |
811-10025
|
[6] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 86633356
|
| 12. |
322358
|
[26] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 13. |
495-11034
|
[1] |
WASHER,5/16", SAE
|
CAS
Superseded by part number: 83918746, 72187257
|
| 14. |
322357
|
[8] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 15. |
140045
|
[6] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 16. |
86610201
|
[26] |
INSERT,M8
|
NH
Threaded, M8
|
| 17. |
825-2406
|
[8] |
FLANGE NUT,M6 x 1, Cl 8.8
|
CAS
Superseded by part number: 9804276
|
| 18. |
9804276
|
[6] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
| 20. |
87046803
|
[1] |
GRILLE
|
PA
Includes: Ref. 19 Superseded by part number: 87648574
|
| 21. |
87036972
|
[4] |
SHIM
|
PA
|
| 22. |
87032628
|
[12] |
FINGER
|
PA
Large, 422 mm OD
|
| 23. |
87032629
|
[2] |
FINGER
|
PA
Small, 399 mm OD
|
