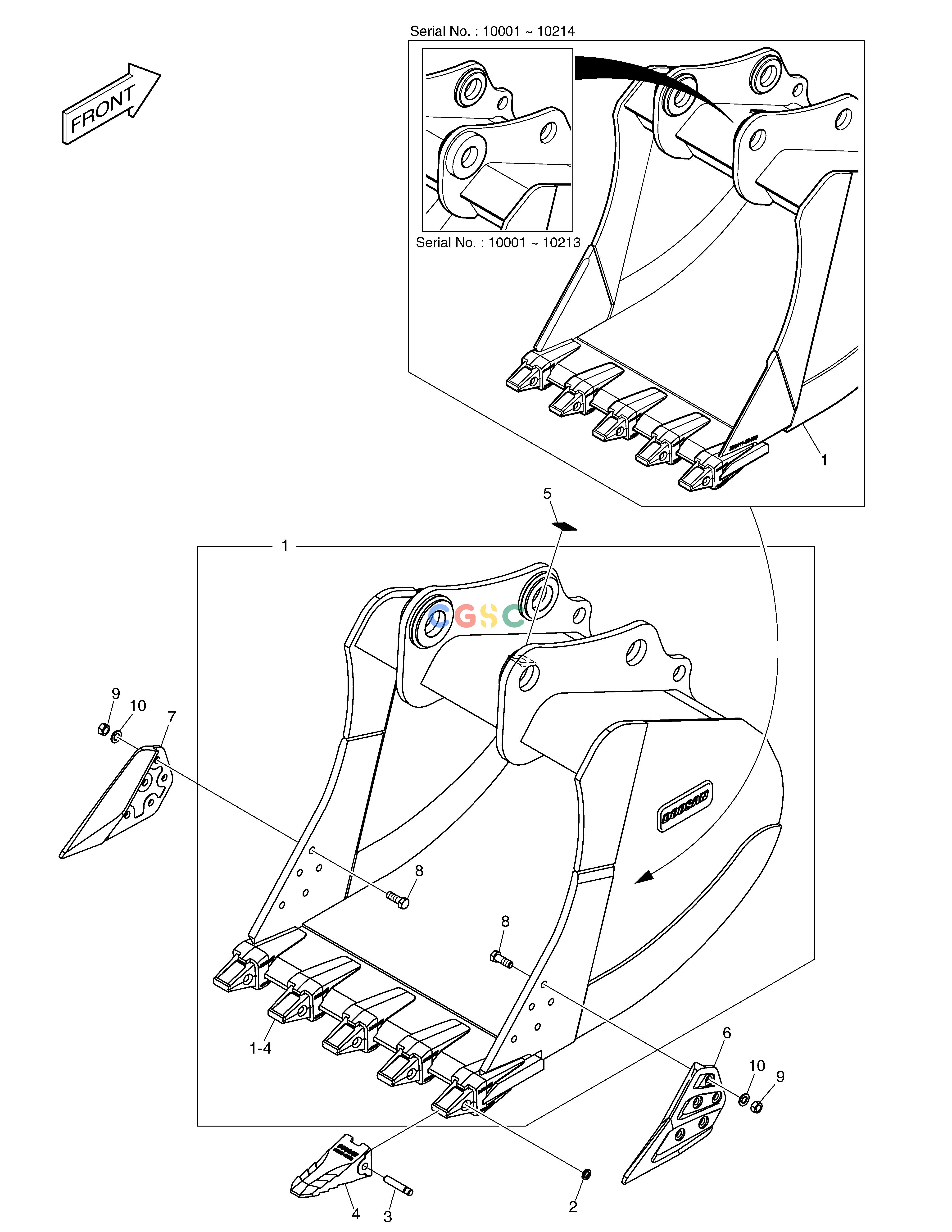

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 230104-01888A | [1] | ||
| -. | 230104-01888B | [1] | 230104-02497 | |
| -. | 230104-02497 | [1] | ||
| 1. | 230104-01889A | [1] | ||
| 1-4. | 430203-00036 | [5] | ||
| 10. | 2114-1831A | [10] | . WASHER | |
| 2. | 114-00246 | [5] | WASHER;LOCKING | |
| 3. | 705-00006 | [5] | PIN;LOCKING | |
| 4. | 230111-00092 | [5] | ||
| 5. | 950209-04791 | [1] | ||
| 6. | 101514-00037 | [1] | ||
| 7. | 101514-00038 | [1] | ||
| 8. | S0574761 | [10] | BOLT M24X3.0X70 | |
| 9. | S4013333 | [10] | . NUT |
