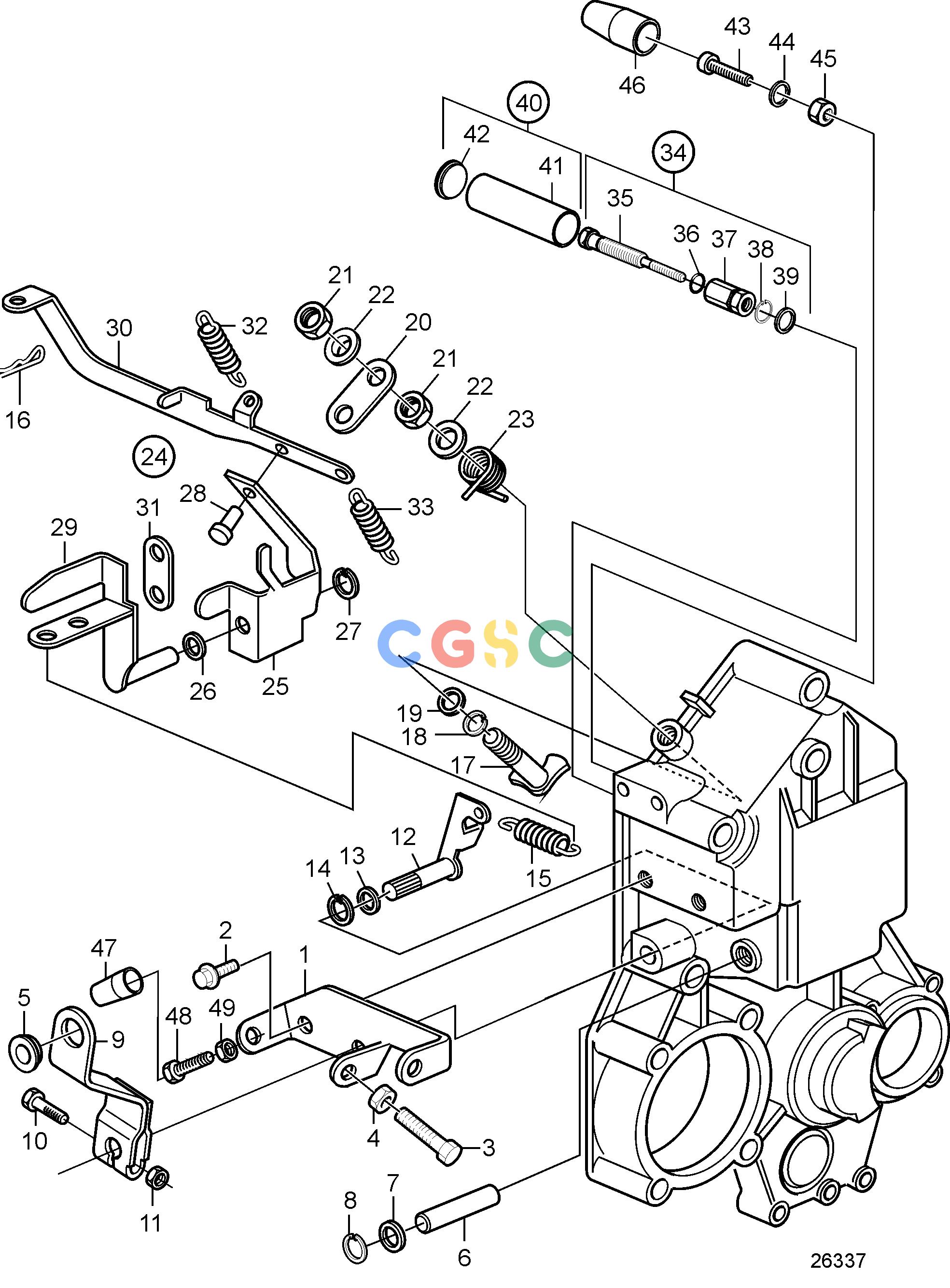

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FFuel SystemRegulation SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3580042
|
[1] |
Stay
|
|
| 2. |
3580581
|
[2] |
Screw
|
|
| 3. |
955275
|
[1] |
Hexagon screw
|
|
| 4. |
955781
|
[1] |
Hexagon nut
|
|
| 5. |
843109
|
[1] |
Bushing
|
|
| 6. |
3583759
|
[2] |
Shaft
|
|
| 7. |
3580040
|
[1] |
O-ring
|
|
| 8. |
3580041
|
[1] |
Lock ring
|
|
| 9. |
3580036
|
[1] |
Intermediate lever
|
|
| 10. |
955275
|
[1] |
Hexagon screw
|
|
| 11. |
945407
|
[1] |
Flange nut
|
|
| 12. |
3580034
|
[1] |
Arm
|
|
| 13. |
3580035
|
[1] |
O-ring
|
|
| 14. |
3580030
|
[1] |
Lock ring
|
|
| 15. |
3819063
|
[1] |
Spring
|
|
| 16. |
3580032
|
[1] |
Locking pin
|
|
| 17. |
3580045
|
[1] |
Arm
|
|
| 18. |
3580046
|
[1] |
Lock ring
|
|
| 19. |
3580047
|
[1] |
O-ring
|
|
| 20. |
3580051
|
[1] |
Intermediate lever
|
|
| 21. |
955782
|
[2] |
Hexagon nut
|
|
| 22. |
191172
|
[1] |
Washer
|
|
| 23. |
3580048
|
[1] |
Spring
|
|
| 24. |
3583736
|
[1] |
Intermediate lever
|
|
| 25. |
|
|
|
|
| 26. |
3580031
|
[1] |
Washer
|
|
| 27. |
3580030
|
[1] |
Lock ring
|
|
| 28. |
3583760
|
[1] |
Pin
|
|
| 29. |
|
|
|
|
| 30. |
|
|
|
|
| 31. |
|
|
|
|
| 32. |
3580735
|
[1] |
Spring
|
|
| 33. |
3580058
|
[1] |
Spring
|
|
| 34. |
3583770
|
[1] |
Screw
|
|
| 35. |
|
|
|
|
| 36. |
3583772
|
[1] |
O-ring
|
|
| 37. |
|
|
|
|
| 38. |
|
|
|
|
| 39. |
3580087
|
[1] |
Sealing ring
|
|
| 40. |
3584083
|
[1] |
Sleeve
|
|
| 41. |
3584083
|
[1] |
Sleeve
|
|
| 42. |
|
|
|
|
| 43. |
3583778
|
[1] |
Screw
|
|
| 44. |
3580087
|
[1] |
Sealing ring
|
|
| 45. |
3583779
|
[1] |
Nut
|
|
| 46. |
3583777
|
[1] |
Cap
|
|
| 47. |
3583761
|
[1] |
Cap
|
|
| 48. |
3583762
|
[1] |
Screw
|
|
| 49. |
3583763
|
[1] |
Nut
|
|
