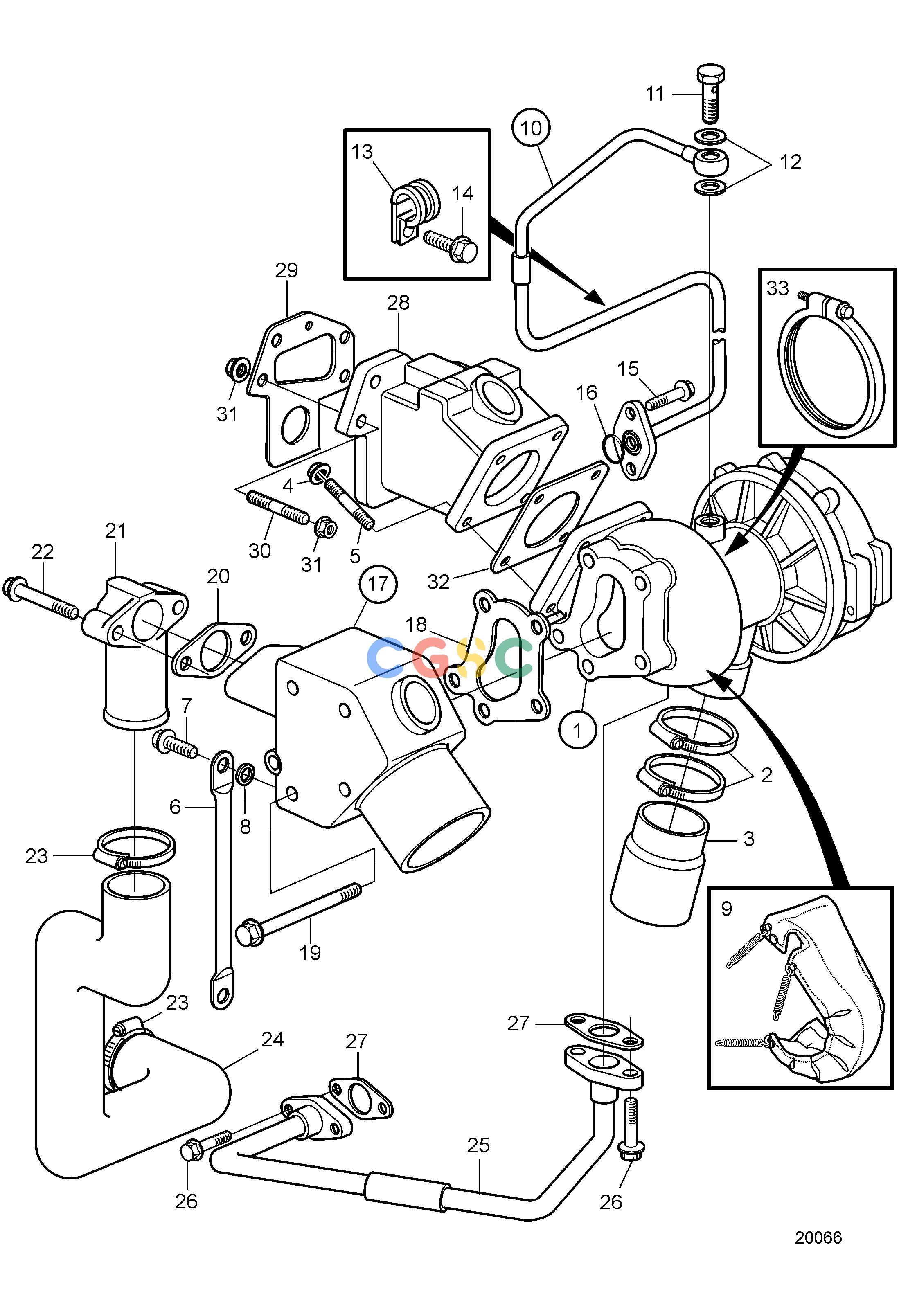

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FIntake and Exhaust SystemTurbo, Induction and Exhaust ManifoldEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
121 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801341
|
[1] |
Turbocharger
|
|
| 2. |
3809700
|
[2] |
Hose clamp
|
|
| 3. |
3584099
|
[1] |
Hose
|
|
| 4. |
948645
|
[8] |
Flange lock nut
|
|
| 5. |
3584105
|
[4] |
Stud
|
|
| 6. |
3584426
|
[1] |
Stay
|
|
| 7. |
3583728
|
[2] |
Screw
|
|
| 8. |
3580031
|
[1] |
Washer
|
|
| 9. |
3584129
|
[1] |
Heat shield
|
|
| 10. |
3584106
|
[1] |
Oil pipe
|
|
| 11. |
942806
|
[1] |
Hollow screw
|
|
| 12. |
18665
|
[2] |
Gasket
|
|
| 13. |
|
|
|
|
| 14. |
3583769
|
[1] |
Screw
|
|
| 15. |
3580581
|
[2] |
Screw
|
|
| 16. |
3583581
|
[1] |
O-ring
|
|
| 17. |
3584413
|
[1] |
Exhaust pipe elbow
|
|
| 18. |
21194801
|
[1] |
Gasket
|
|
| 19. |
965183
|
[5] |
Flange screw
|
L=90mm
|
| 20. |
859835
|
[1] |
Gasket
|
|
| 21. |
859836
|
[1] |
Connector
|
(3587410)
|
| 22. |
947760
|
[2] |
Flange screw
|
|
| 23. |
853548
|
[2] |
Hose clamp
|
|
| 24. |
3589453
|
[1] |
Hose
|
|
| 25. |
21195200
|
[1] |
Oil pipe
|
(3584109)
|
| 26. |
3884535
|
[4] |
Screw
|
|
| 27. |
3584110
|
[2] |
Gasket
|
|
| 28. |
3583996
|
[1] |
Adapter
|
|
| 29. |
888596
|
[1] |
Gasket
|
|
| 30. |
3584105
|
[4] |
Stud
|
|
| 31. |
948645
|
[4] |
Flange lock nut
|
|
| 32. |
3584104
|
[1] |
Gasket
|
|
| 33. |
|
|
|
|
