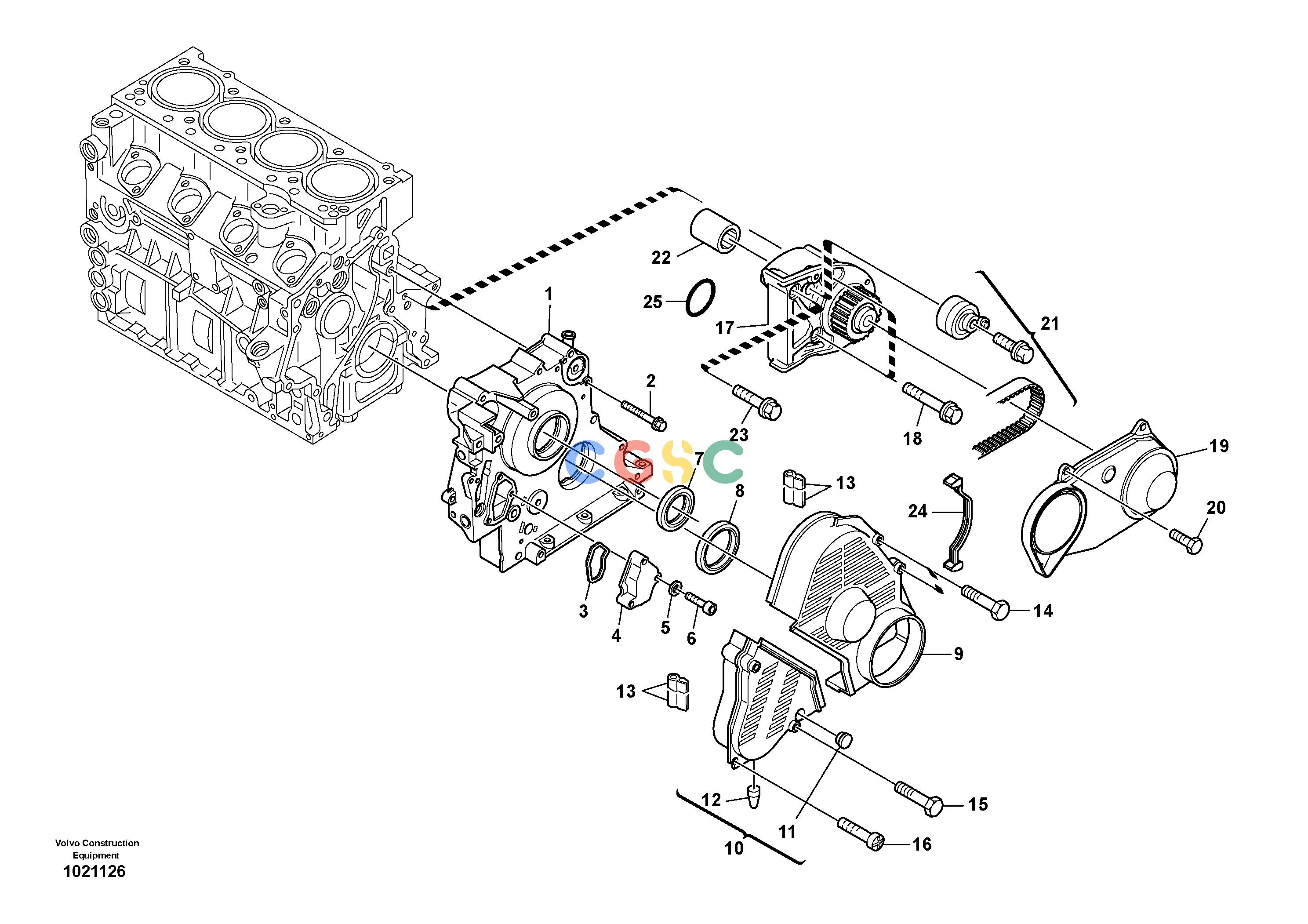

沃尔沃零件查询L35B Timing gear housing (front cover)TYPE 186, 187, 188, 189 SER NO 3000 - 600011306228,11309261-11308624NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
801 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11370643
|
[1] |
Cover
|
|
| 2. |
ZM2908498
|
[11] |
Screw
|
|
| 3. |
ZM2904068
|
[1] |
Profil gasket
|
|
| 4. |
ZM2904070
|
[1] |
Cover
|
|
| 5. |
VOE20459074
|
[3] |
Washer
|
|
| 6. |
VOE11370253
|
[3] |
Screw
|
|
| 7. |
ZM2291470
|
[1] |
Seal
|
|
| 8. |
ZM2290458
|
[1] |
Seal
|
|
| 9. |
VOE11715748
|
[1] |
Protecting casing
|
|
| 9. |
VOE11715974
|
[1] |
Protecting casing
|
|
| 10. |
VOE11715749
|
[1] |
Protecting casing
|
|
| 11. |
ZM2904072
|
[1] |
Plug
|
|
| 12. |
VOE11370190
|
[1] |
Rubber sleeve
|
|
| 13. |
VOE11370596
|
[REQ] |
Sealing moulding
|
|
| 14. |
VOE11370191
|
[3] |
Hexagon screw
|
|
| 15. |
VOE11370192
|
[2] |
Hexagon screw
|
|
| 16. |
VOE20460068
|
[1] |
Screw
|
|
| 17. |
VOE11370649
|
[1] |
Bracket
|
|
| 18. |
ZM2906901
|
[2] |
Screw
|
M10X90
|
| 19. |
VOE11370276
|
[1] |
Protecting casing
|
|
| 20. |
VOE20534527
|
[5] |
Screw
|
M6X25
|
| 21. |
VOE20945006
|
[1] |
Repair Kit
|
|
| 22. |
VOE11370278
|
[1] |
Engaging sleeve
|
|
| 23. |
VOE20797178
|
[1] |
Six point screw
|
M10X75
|
| 24. |
VOE11370611
|
[1] |
Gasket
|
|
| 25. |
ZM2291529
|
[1] |
O-ring
|
|
