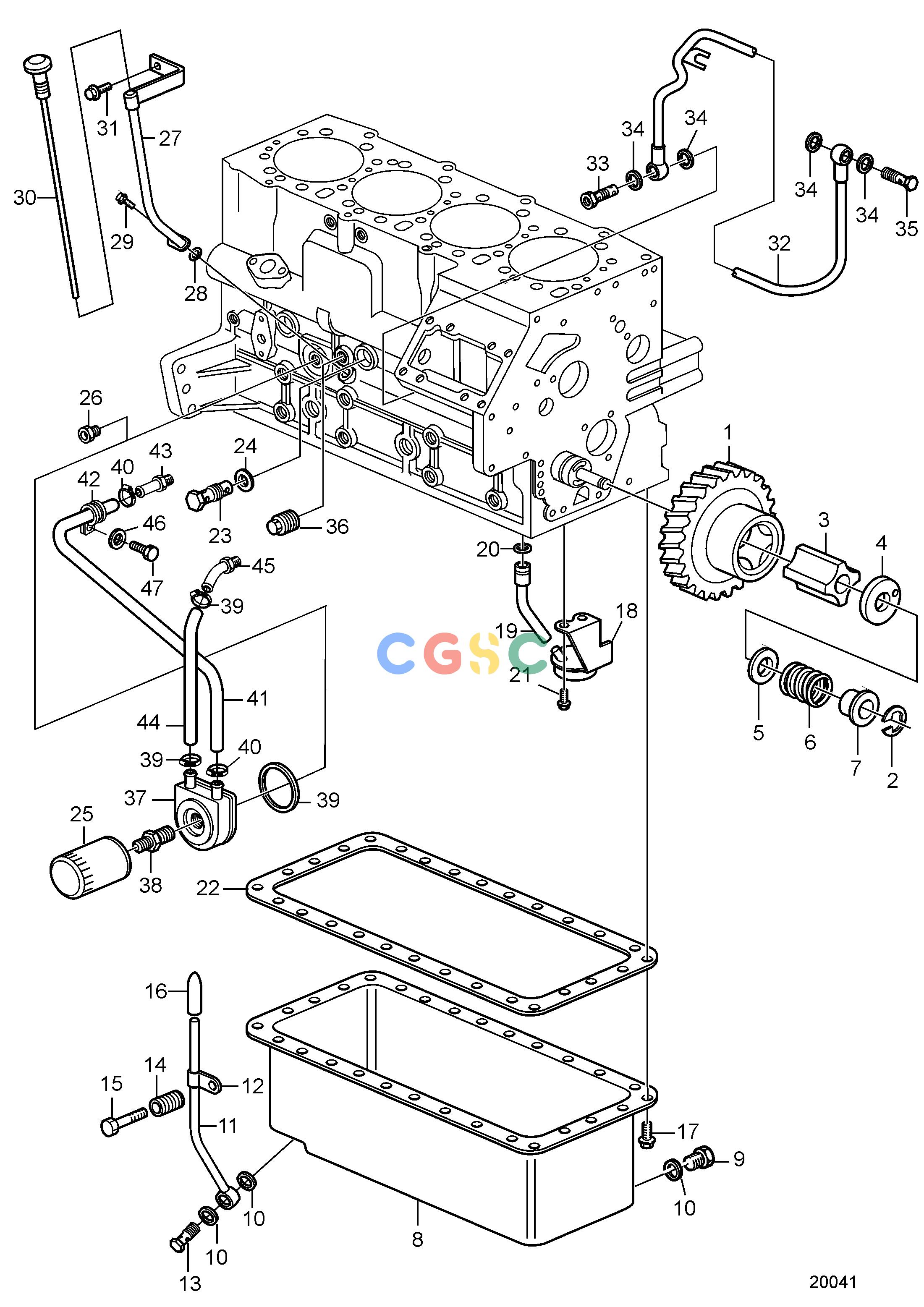

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FLubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
296 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7744450_006
|
|
Gear
|
|
| 2. |
861534
|
[1] |
Lock ring
|
|
| 3. |
3580570
|
[1] |
Rotor
|
replaced
|
| 3. |
21541019
|
[1] |
Oil pump
|
D2-75 F
|
| 3. |
21541021
|
[1] |
Oil pump
|
D2-7 A/B
|
| 4. |
861527
|
[1] |
Cap
|
|
| 5. |
861528
|
[1] |
Shim
|
TH=0,10mm
|
| 5. |
861529
|
[1] |
Shim
|
TH=0.15mm
|
| 5. |
861530
|
[1] |
Shim
|
TH=0,20mm
|
| 5. |
861531
|
[1] |
Shim
|
TH=0,50mm
|
| 6. |
861532
|
[1] |
Spring
|
|
| 7. |
861533
|
[1] |
Sleeve
|
|
| 8. |
3583551
|
[1] |
Sump
|
|
| 9. |
3580091
|
[1] |
Screw
|
|
| 10. |
3580092
|
[1] |
Sealing ring
|
Replaced by 21424327
|
| 10. |
21424327
|
[1] |
Sealing ring
|
|
| 11. |
3583067
|
[1] |
Oil draining pipe
|
Replaced by 3887377
|
| 11. |
3887377
|
[1] |
Oil pipe
|
SN-5103976322W, Replaced by 21852455 and 22151722, SN5103976323W-
|
| 11. |
21852455
|
[1] |
Drain pipe
|
SN5103976323W-
|
| 12. |
941565
|
[1] |
Clamp
|
|
| 13. |
941686
|
[1] |
Hollow screw
|
|
| 14. |
3582401
|
[1] |
Adapter
|
|
| 15. |
946471
|
[1] |
Flange screw
|
|
| 16. |
1276516
|
[1] |
Rubber cap
|
SN-5103976322W
|
| 16. |
22151722
|
[1] |
Protective cap
|
SN5103976323W-
|
| 17. |
945358
|
[30] |
Flange screw
|
|
| 18. |
3583583
|
[1] |
Strainer
|
|
| 19. |
3583584
|
[1] |
Suction pipe
|
|
| 20. |
861997
|
[1] |
O-ring
|
|
| 21. |
861526
|
[2] |
Screw
|
|
| 22. |
21849845
|
[1] |
Gasket
|
|
| 23. |
3583580
|
[1] |
Reduction valve
|
|
| 24. |
3583581
|
[1] |
O-ring
|
|
| 25. |
3840525
|
[1] |
Oil filter
|
|
| 26. |
861825
|
[1] |
Bolt
|
|
| 27. |
3587361
|
[1] |
Tube
|
|
| 28. |
861851
|
[2] |
O-ring
|
|
| 29. |
861526
|
[1] |
Screw
|
|
| 30. |
3583554
|
[1] |
Dipstick
|
|
| 31. |
946173
|
[1] |
Flange screw
|
|
| 32. |
3583582
|
[1] |
Oil pipe
|
|
| 33. |
3583575
|
[1] |
Hollow screw
|
|
| 34. |
11992
|
[4] |
Gasket
|
|
| 35. |
861872
|
[1] |
Hollow screw
|
|
| 36. |
3583732
|
[1] |
Plug
|
|
| 37. |
3584116
|
[1] |
Oil cooler
|
|
| 38. |
3589334
|
[1] |
Adapter
|
|
| 39. |
3589335
|
[1] |
Gasket
|
|
| 40. |
961665
|
[4] |
Hose clamp
|
|
| 41. |
3819667
|
[1] |
Hose
|
|
| 42. |
21252754
|
[1] |
Hose clamp
|
|
| 43. |
3584120
|
[1] |
Connector
|
|
| 44. |
21194781
|
[1] |
Hose
|
|
| 45. |
3584119
|
[1] |
Connector
|
|
| 46. |
21246672
|
[1] |
Washer
|
|
| 47. |
861870
|
[1] |
Screw
|
|
