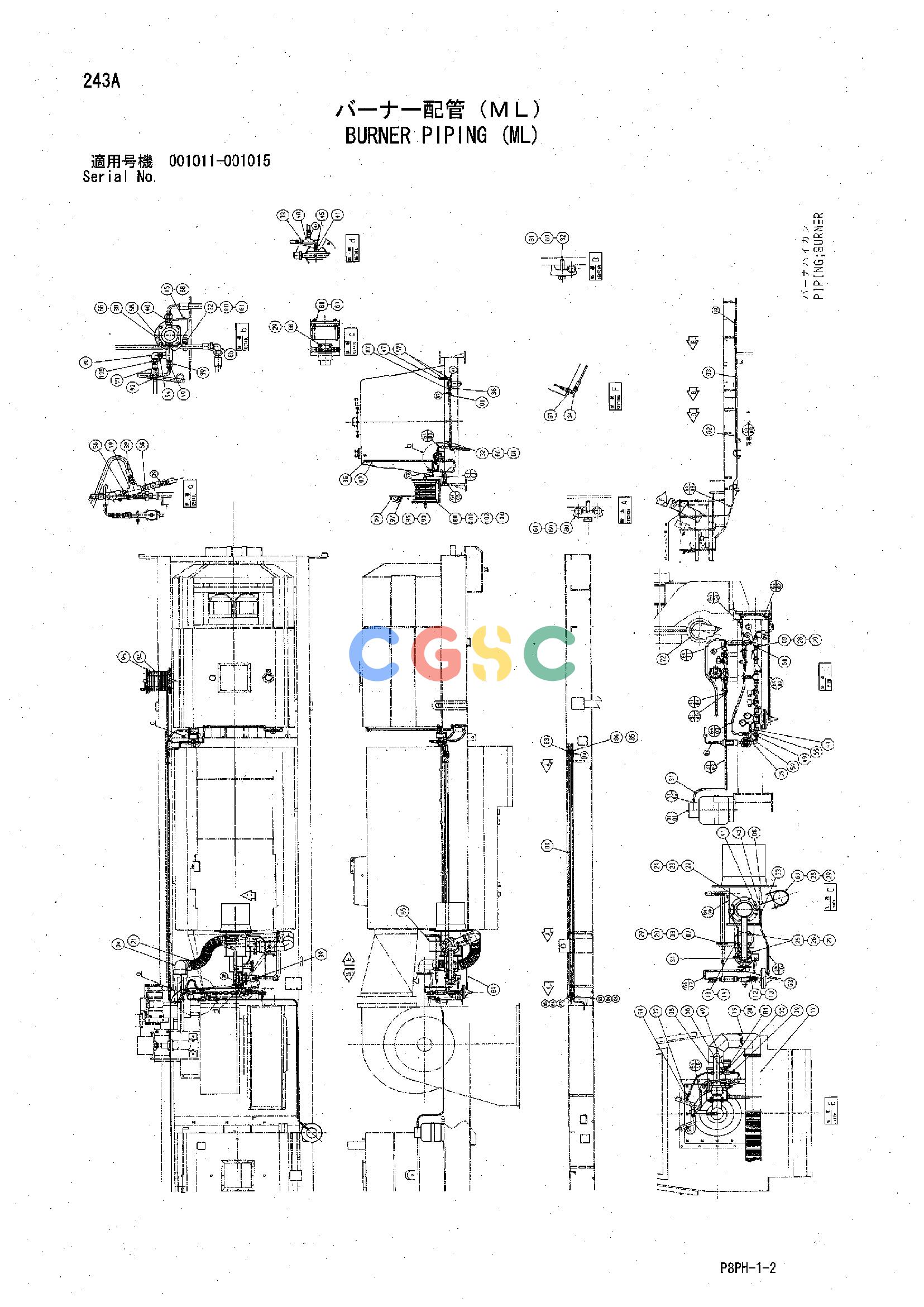

日立零件查询（AR2000）BURNER PIPING (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
412 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y971047 | [2] | TUBE | |
| 01. | Y971048 | [1] | TUBE | |
| 02. | Y971049 | [1] | TUBE | |
| 03. | Y409805 | [1] | PIPE | |
| 04. | Y971053 | [1] | TUBE LINE | |
| 05. | Y700815 | [1] | TUBE LINE | |
| 06. | Y801760 | [1] | HANGER | |
| 07. | Y301446 | [1] | BRACKET | |
| 08. | Y409679 | [5] | BOLT;U | |
| 09. | Y409680 | [1] | BOLT;U | |
| 12. | Y301451 | [1] | WASHER | |
| 13. | Y409681 | [2] | WASHER | |
| 14. | Y409688 | [1] | PLUG | |
| 15. | Y301455 | [1] | SHIELD | |
| 17. | Y410180 | [1] | TUBE | |
| 19. | 4221469 | [1] | HOSE;RUBBER | |
| 20. | 4420354 | [2] | CLAMP;HOSE | |
| 21. | Y410344 | [1] | HOSE;AIR | |
| 22. | J901245 | [8] | BOLT | |
| 23. | J950012 | [8] | NUT | |
| 24. | A590912 | [8] | WASHER;SPRING | |
| 25. | J931845 | [8] | BOLT | |
| 26. | J950018 | [8] | NUT | |
| 27. | J257218 | [8] | WASHER;SPRING | |
| 28. | J950008 | [12] | NUT | |
| 29. | A590908 | [16] | WASHER;SPRING | |
| 30. | M450832 | [4] | SCREW;SET | |
| 31. | Y410817 | [1] | GAS;PROPANE | |
| 3101. | +++++++ | [1] | GAS BOMB | |
| 3102. | +++++++ | [1] | REGULATOR | |
| 3103. | +++++++ | [1] | HOSE | |
| 3104. | +++++++ | [1] | FITTING;HOSE | |
| 3105. | +++++++ | [2] | BAND | |
| 32. | 4053594 | [5] | CLAMP | |
| 33. | 4154651 | [3] | ADAPTER;S | |
| 34. | 4154656 | [2] | ELBOW;S | |
| 36. | 4156433 | [1] | ELBOW | |
| 37. | 4215649 | [1] | ADAPTER;S | |
| 38. | 4221278 | [1] | ADAPTER;S | |
| 39. | 4221287 | [10] | ADAPTER;S | |
| 40. | 4345723 | [4] | ADAPTER;S | |
| 41. | 4351271 | [3] | ADAPTER;S | |
| 43. | 94-0615 | [1] | ELBOW;S | |
| 45. | 94-0630 | [1] | ELBOW;S | |
| 47. | 94-0633 | [2] | ELBOW;S | |
| 48. | 94-0660 | [1] | TEE | |
| 49. | 94-0662 | [5] | TEE;S | |
| 54. | 94-1602 | [2] | REDUCER | |
| 55. | 94-1608 | [2] | REDUCER | |
| 56. | 94-1703 | [3] | ADAPTER;S | |
| 57. | 94-1704 | [2] | ADAPTER;S | |
| 58. | 94-1903 | [3] | ADAPTER;S | |
| 59. | 94-2024 | [1] | PLUG | |
| 60. | A590910 | [14] | WASHER;SPRING | |
| 61. | J901045 | [10] | BOLT | |
| 62. | Y407662 | [2] | ADAPTER;S | |
| 63. | Y410343 | [1] | ELBOW;S | |
| 64. | Y410403 | [1] | HOSE ASS'Y | |
| 6400. | +++++++ | [1] | HOSE | GG-07-19-075N(1-1/16-12UN) |
| 6401. | +++++++ | [1] | HOSE | GG-21-12-060N(3/4-16UNF) |
| 6402. | +++++++ | [1] | HOSE | GG-21-12-050N(3/4-16UNF) |
| 6403. | +++++++ | [1] | HOSE | EE-03-12-070N(3/4-16UNF) |
| 6404. | +++++++ | [1] | HOSE | EG-03-12-075N(3/4-16UNF) |
| 6405. | +++++++ | [1] | HOSE | EE-03-19-045N(1-1/16-12UN) |
| 6406. | +++++++ | [1] | HOSE | EE-21-06-095N(7/16-20UNF) |
| 6407. | +++++++ | [1] | HOSE | EG-07-06-110S(7/16-20UNF) |
| 6408. | +++++++ | [1] | HOSE | EE-07-06-700S(7/16-20UNF) |
| 6409. | +++++++ | [1] | HOSE | EE-21-06-115N(7/16-20UNF) |
| 6410. | +++++++ | [1] | HOSE | GG-21-12-095N(3/4-16UNF) |
| 6411. | +++++++ | [1] | HOSE | EG-21-12-120N(3/4-16UNF) |
| 6412. | +++++++ | [1] | HOSE | EE-21-12-130N(3/4-16UNF) |
| 65. | Y971169 | [1] | COVER | |
| 66. | Y410688 | [1] | COUPLING | |
| 67. | Y410715 | [1] | UNION | |
| 68. | J900825 | [4] | BOLT | |
| 72. | Y971204 | [1] | PIPE;FLANGE | |
| 80. | 4053593 | [3] | CLAMP;PIPE | |
| 81. | 94-1701 | [1] | ADAPTER;S | |
| 83. | 88-2006 | [4] | UNION | PARKER 12HMTXSS |
| 84. | 88-2004 | [3] | NUT | PARKER 12BMTXSS |
| 85. | 88-2115 | [3] | REDUCER | PARKER 12-8TRTXSS |
| 86. | 88-2182 | [1] | ELBOW | PARKER 12ETXSS |
| 87. | 88-2109 | [2] | ELBOW | PARKER 12C6XSS |
| 88. | J900812 | [4] | BOLT | |
| 90. | 94-0631 | [1] | ELBOW;S | |
| 91. | Y410681 | [1] | COUPLER | |
| 92. | Y402305 | [1] | FITTING;HOSE | |
| 93. | 4514700 | [2] | CLIP;HOSE | |
| 94. | Y410689 | [1] | HOSE | |
| 95. | Y410682 | [1] | REEL;HOSE | |
| 96. | Y410676 | [1] | HOSE | |
| 97. | Y402910 | [1] | FITTING;HOSE | |
| 99. | Y410683 | [1] | GUN | |
| 100. | J901060 | [4] | BOLT | |
| 102. | J950010 | [4] | NUT | |
| 104. | 4190125 | [4] | CLAMP;PIPE | |
| 105. | 94-1702 | [1] | ADAPTER;S | |
