沃尔沃零件查询L35B Oil filterTYPE 186, 187, 188, 189 SER NO 3000 - 600011308624-15211728,15216364NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
885 次

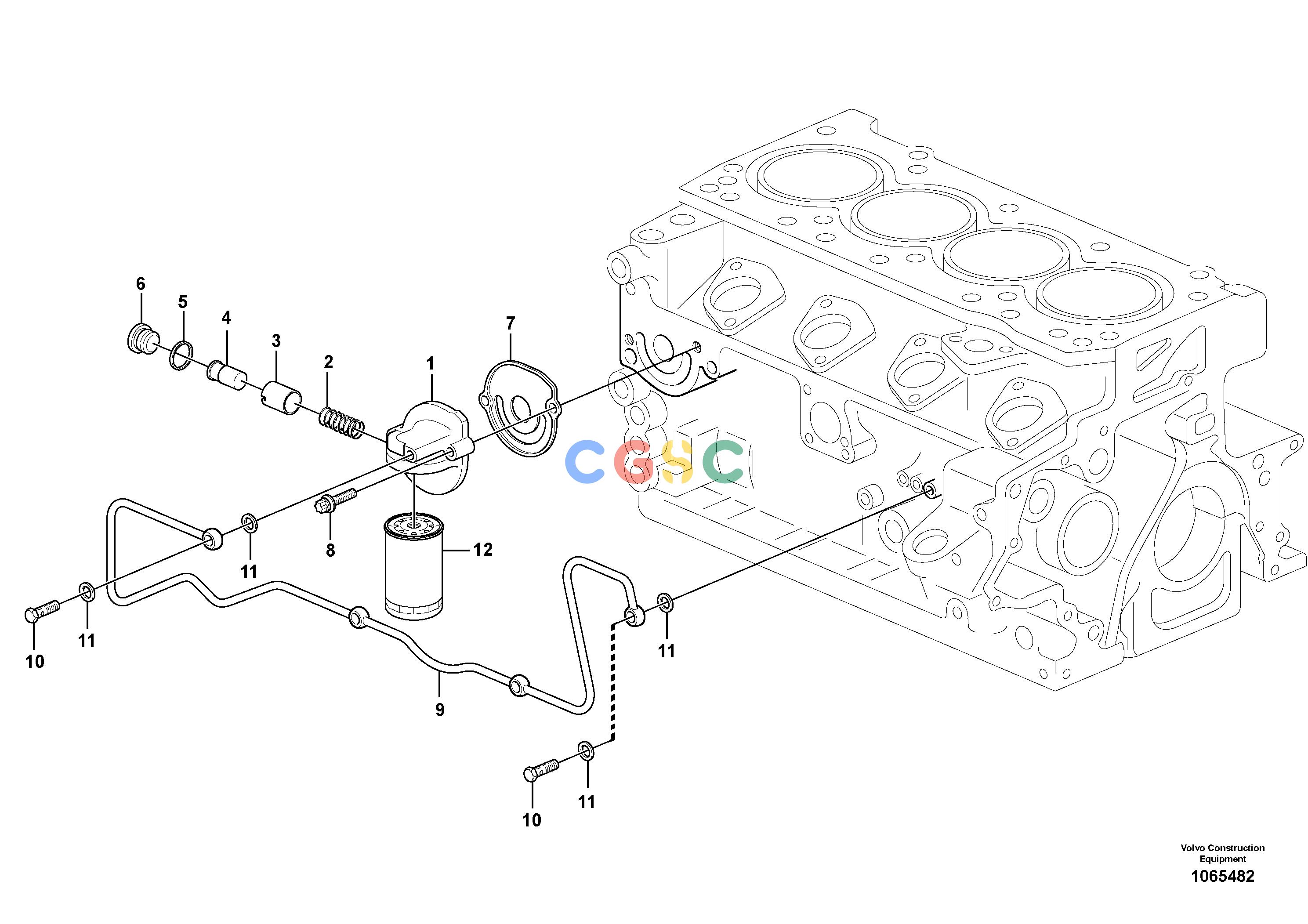

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15053792
|
[1] |
Oil filter housing
|
|
| 2. |
VOE15053890
|
[1] |
Spring
|
|
| 3. |
VOE15053887
|
[1] |
Valve
|
|
| 4. |
VOE15053936
|
[1] |
Temperature sensor
|
|
| 5. |
VOE20515173
|
[1] |
Gasket
|
|
| 6. |
VOE21094611
|
[1] |
Plug
|
|
| 7. |
VOE15053811
|
[1] |
Gasket
|
|
| 8. |
ZM2908513
|
[2] |
Screw
|
|
| 9. |
VOE15053897
|
[1] |
Oil line
|
|
| 10. |
ZM4074290
|
[4] |
Tube
|
|
| 11. |
VOE13947281
|
[8] |
Gasket
|
|
| 12. |
VOE11715272
|
[1] |
Oil filter
|
|
