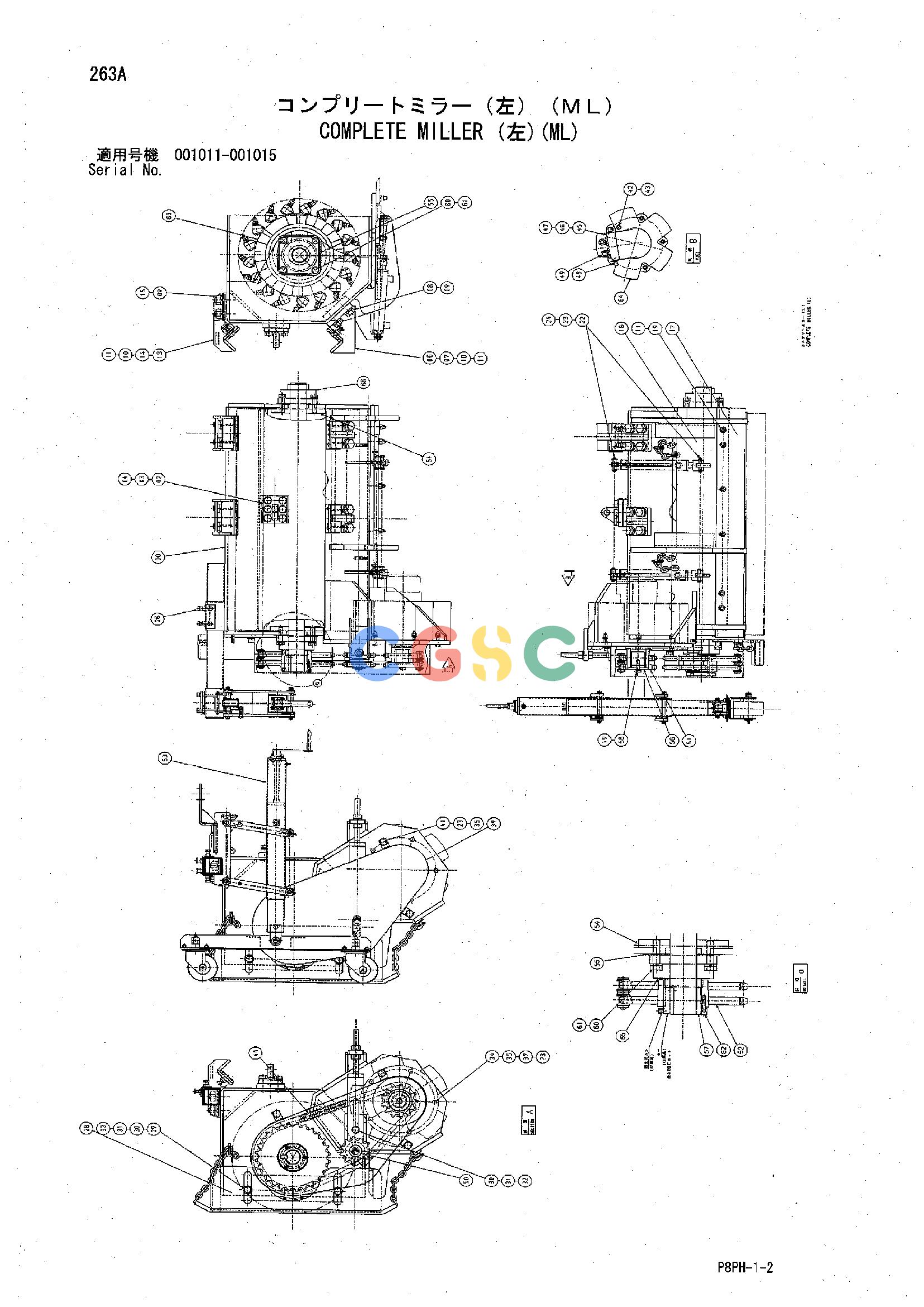

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | Y801767 | [1] | MILLER HOUSING | |
| 02. | Y970958 | [1] | LUG | |
| 03. | J922255 | [6] | BOLT | |
| 04. | J257222 | [6] | WASHER;SPRING | |
| 06. | Y802254 | [2] | BRACKET | |
| 07. | Y409635 | [2] | PLATE | |
| 08. | Y413971 | [8] | BOLT | |
| 09. | J257227 | [16] | WASHER;SPRING | |
| 10. | J901640 | [8] | BOLT | |
| 11. | J950016 | [14] | NUT | |
| 13. | Y802251 | [2] | BRACKET | |
| 14. | Y409642 | [2] | BOTTOM PLATE | |
| 15. | J950027 | [8] | NUT | |
| 17. | Y414514 | [1] | SCRAPER | |
| 18. | Y409721 | [1] | MOULDING | |
| 19. | A590916 | [7] | WASHER;SPRING | |
| 22. | Y409739 | [4] | PIN | |
| 23. | A590112 | [16] | WASHER;PLANE | |
| 24. | A763020 | [8] | PIN;SPLIT | |
| 26. | J901435 | [4] | BOLT | |
| 28. | Y801739 | [1] | PLATE;L | |
| 29. | Y409625 | [2] | SPACER;WASHER | |
| 30. | J922045 | [3] | BOLT | |
| 31. | J257220 | [3] | WASHER;SPRING | |
| 32. | A590120 | [1] | WASHER;PLANE | |
| 33. | A590124 | [2] | WASHER;PLANE | |
| 34. | J901265 | [5] | BOLT | |
| 35. | A590912 | [5] | WASHER;SPRING | |
| 37. | J950012 | [5] | NUT | |
| 39. | Y700782 | [1] | SHIELD LEFT | |
| 40. | J901225 | [3] | BOLT | |
| 42. | 88-XXXX | [1] | CONNECTOR | PARKER 8-8F42EDMXS |
| 43. | 88-2067 | [1] | ELBOW | PARKER 8C6XSS |
| 44. | Y408453 | [1] | CHAIN;ROLLER | |
| 45. | Y301567 | [1] | FLANGE | |
| 46. | A811045 | [2] | O-RING | |
| 47. | J781040 | [6] | BOLT;SOCKET | |
| 48. | 88-XXXX | [2] | TEST PORT | PARKER EMA3/9/16-18UNF-2A |
| 49. | 88-2122 | [2] | ELBOW | PARKER 20C50XSS |
| 50. | +++++++ | [1] | TENSIONER | (ML) <for details: see separate page> |
| 51. | Y970987 | [1] | SPROCKET | |
| 52. | Y970988 | [1] | SPROCKET | |
| 53. | +++++++ | [1] | DEPTH CONTROL DEVICE | (FRONT)(ML) <for details: see separate page> |
| 54. | Y409623 | [2] | GASKET HOUSING | |
| 55. | Y409624 | [2] | BEERING STOPPER | |
| 56. | Y409622 | [1] | ROLLER | |
| 58. | J901650 | [1] | BOLT | |
| 60. | J922080 | [8] | BOLT | |
| 61. | A590920 | [8] | WASHER;SPRING | |
| 62. | 4047038 | [3] | BOLT;SOCKET | |
| 63. | Y600368 | [1] | MILLER LEFT | |
| 64. | 88-0121 | [1] | MOTOR | CALZONI MR1100N9 |
| 65. | 88-0165 | [1] | BRG. | QM INDUSTRIES QMF215SE |
| 66. | 88-0166 | [1] | BRG. | QM INDUSTRIES QMF215S |
