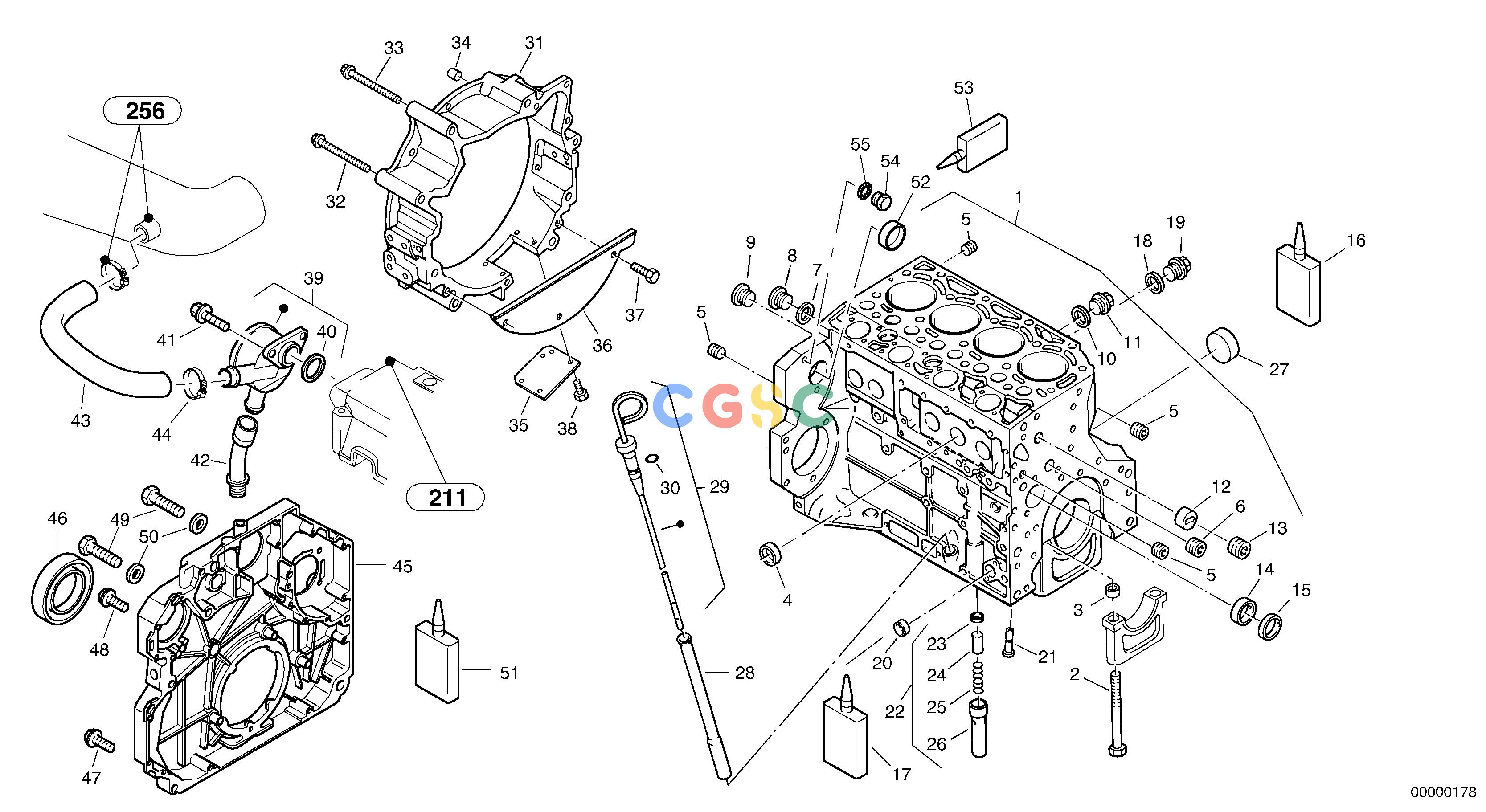

沃尔沃零件查询L40 Engine casing, VentilationTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
211 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2906912
|
[1] |
Crankcase, cpl.
|
|
| 2. |
VOE20405583
|
[10] |
Bolt
|
|
| 3. |
VOE11700278
|
[10] |
Bushing
|
|
| 4. |
ZM2900270
|
[6] |
Closure
|
|
| 5. |
VOE20405718
|
[3] |
Plug
|
|
| 6. |
VOE20405717
|
[1] |
Plug
|
|
| 7. |
ZM7099503
|
[1] |
Seal
|
A14x18
|
| 8. |
ZM5225665
|
[1] |
Screw
|
M14x1,5
|
| 9. |
VOE21041648
|
[4] |
Plug
|
|
| 10. |
ZM7099503
|
[1] |
Seal
|
A14x18
|
| 11. |
ZM2905904
|
[1] |
Screw
|
M14x1,5
|
| 12. |
VOE20405584
|
[1] |
Guide sleeve
|
|
| 13. |
VOE20405717
|
[1] |
Plug
|
|
| 14. |
VOE11700285
|
[1] |
Bearing bushing
|
|
| 15. |
VOE11700284
|
[4] |
Bearing bushing
|
|
| 16. |
ZM2903912
|
[1] |
Locking agent
|
|
| 17. |
ZM2904058
|
[1] |
Locking agent
|
|
| 18. |
ZM7099503
|
[1] |
Seal
|
A14x18
|
| 19. |
VOE960630
|
[1] |
Plug
|
AM14x1,5
|
| 20. |
VOE20412745
|
[1] |
Core plug
|
36
|
| 21. |
ZM2904056
|
[1] |
Piston cooling jet
|
|
| 22. |
VOE11700271
|
[1] |
Delivery valve
|
|
| 23. |
VOE20405904
|
[1] |
Ring
|
|
| 24. |
ZM2906910
|
[1] |
Valve piston
|
|
| 25. |
VOE20405896
|
[1] |
Compression spring
|
|
| 26. |
VOE20405937
|
[1] |
Sleeve
|
|
| 27. |
VOE20405986
|
[1] |
Core plug
|
|
| 28. |
VOE20450869
|
[1] |
Guide tube
|
|
| 29. |
ZM2907940
|
[1] |
Oil dipstick
|
|
| 30. |
VOE20412343
|
[1] |
Sealing ring
|
|
| 31. |
ZM2907352
|
[1] |
Housing
|
|
| 32. |
VOE20405714
|
[2] |
Screw
|
|
| 33. |
VOE20405715
|
[4] |
Screw
|
|
| 34. |
VOE20405887
|
[2] |
Bushing
|
|
| 35. |
VOE20547288
|
[1] |
Cover Plate
|
|
| 36. |
ZM2907353
|
[1] |
Cover
|
|
| 37. |
ZM7095067
|
[3] |
Screw
|
M6x10
|
| 38. |
VOE955269
|
[4] |
Hexagon screw
|
M6x12
|
| 39. |
VOE20405626
|
[1] |
Regulator
|
|
| 40. |
VOE20405627
|
[1] |
Gasket
|
|
| 41. |
VOE20450728
|
[2] |
Bolt
|
|
| 42. |
VOE20405625
|
[1] |
Rubber sleeve
|
|
| 43. |
VOE20405629
|
[1] |
Hose
|
|
| 44. |
VOE20405755
|
[1] |
Clamping band
|
|
| 45. |
ZM2906927
|
[1] |
Wheel box
|
|
| 46. |
VOE21486084
|
[1] |
Lip seal
|
|
| 47. |
VOE20412324
|
[12] |
Screw
|
|
| 48. |
VOE20405709
|
[4] |
Screw
|
|
| 49. |
ZM8097031
|
[2] |
Screw
|
M16x60
|
| 50. |
VOE13955900
|
[2] |
Washer
|
A17
|
| 51. |
ZM2903828
|
[REQ] |
Locking agent
|
|
| 52. |
ZM3075082
|
[1] |
Cap
|
|
| 53. |
VOE20464471
|
[REQ] |
Locking fluid
|
|
| 54. |
VOE20441859
|
[2] |
Plug
|
|
| 55. |
VOE13947281
|
[2] |
Gasket
|
A10x13,5
|
