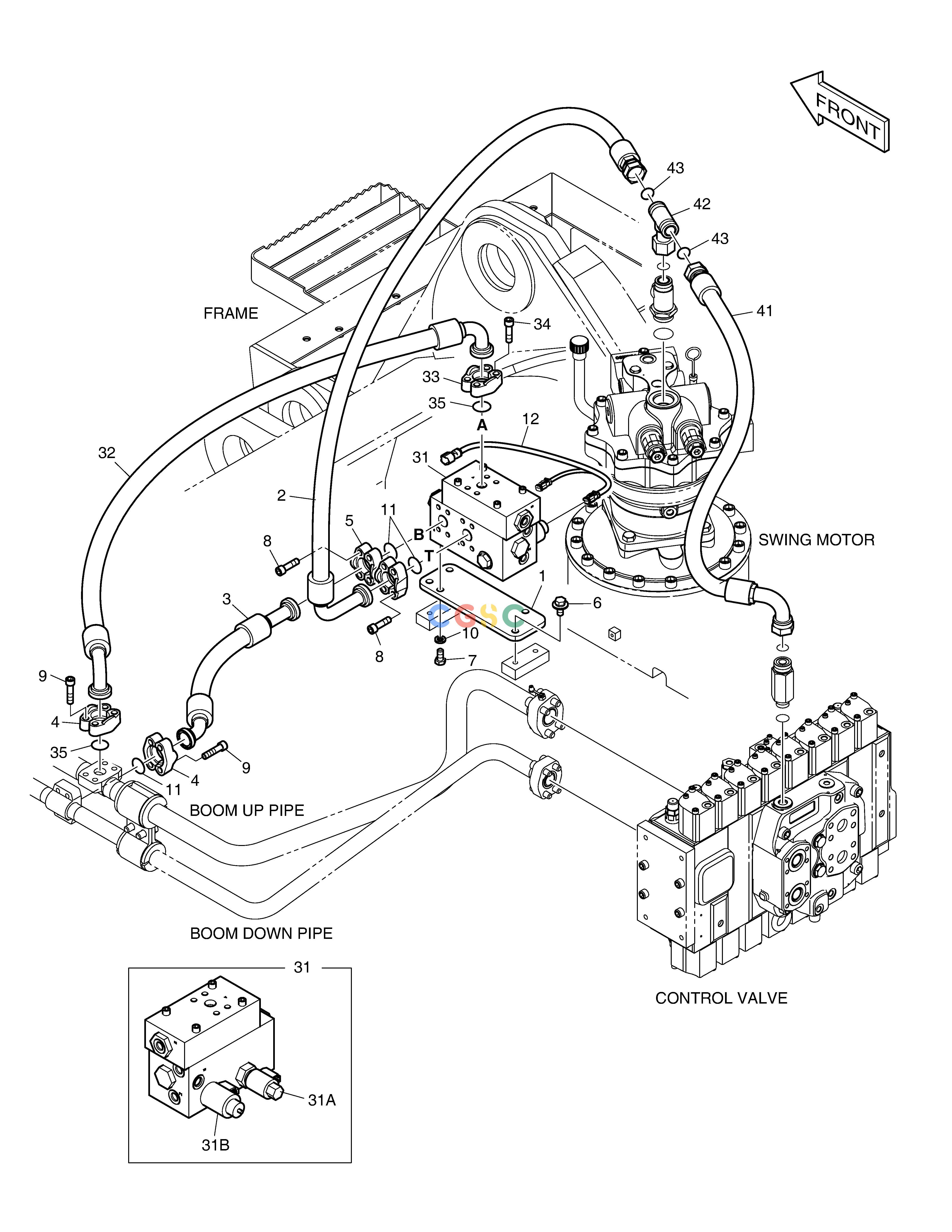

斗山零件查询MAIN PIPING - BOOM FLOATING DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
133 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-00952
|
[-] |
|
|
| 1. |
110425-00086B
|
[1] |
|
|
| 10. |
S5102703
|
[2] |
WASHER
|
|
| 11. |
2180-1026D19
|
[3] |
O-RING
|
|
| 12. |
310207-01077
|
[1] |
|
|
| 2. |
DS2018272
|
[1] |
|
|
| 3. |
DS2039201
|
[1] |
|
|
| 31. |
410111-00108
|
[1] |
|
|
| 31A. |
300715-00036
|
[1] |
. COIL
|
|
| 31B. |
300715-00037
|
[1] |
|
|
| 32. |
DS2045626
|
[1] |
|
|
| 33. |
2181-9081
|
[2] |
FLANGE;SPLIT
|
|
| 34. |
S2215566
|
[4] |
BOLT;SOCKET
|
|
| 35. |
2180-1026D19
|
[2] |
O-RING
|
|
| 4. |
2181-9081
|
[4] |
FLANGE;SPLIT
|
|
| 41. |
DS2013923
|
[1] |
HOSE
|
|
| 42. |
181-00130D5
|
[1] |
|
|
| 43. |
S8030161
|
[2] |
O-RING
|
|
| 5. |
2181-9084A
|
[4] |
FLANGE;SPLIT
|
|
| 6. |
DS0025018
|
[3] |
BOLT
|
|
| 7. |
S0515066
|
[2] |
BOLT
|
|
| 8. |
S2215566
|
[8] |
BOLT;SOCKET
|
|
| 9. |
S2215666
|
[8] |
BOLT;SOCKET
|
|
