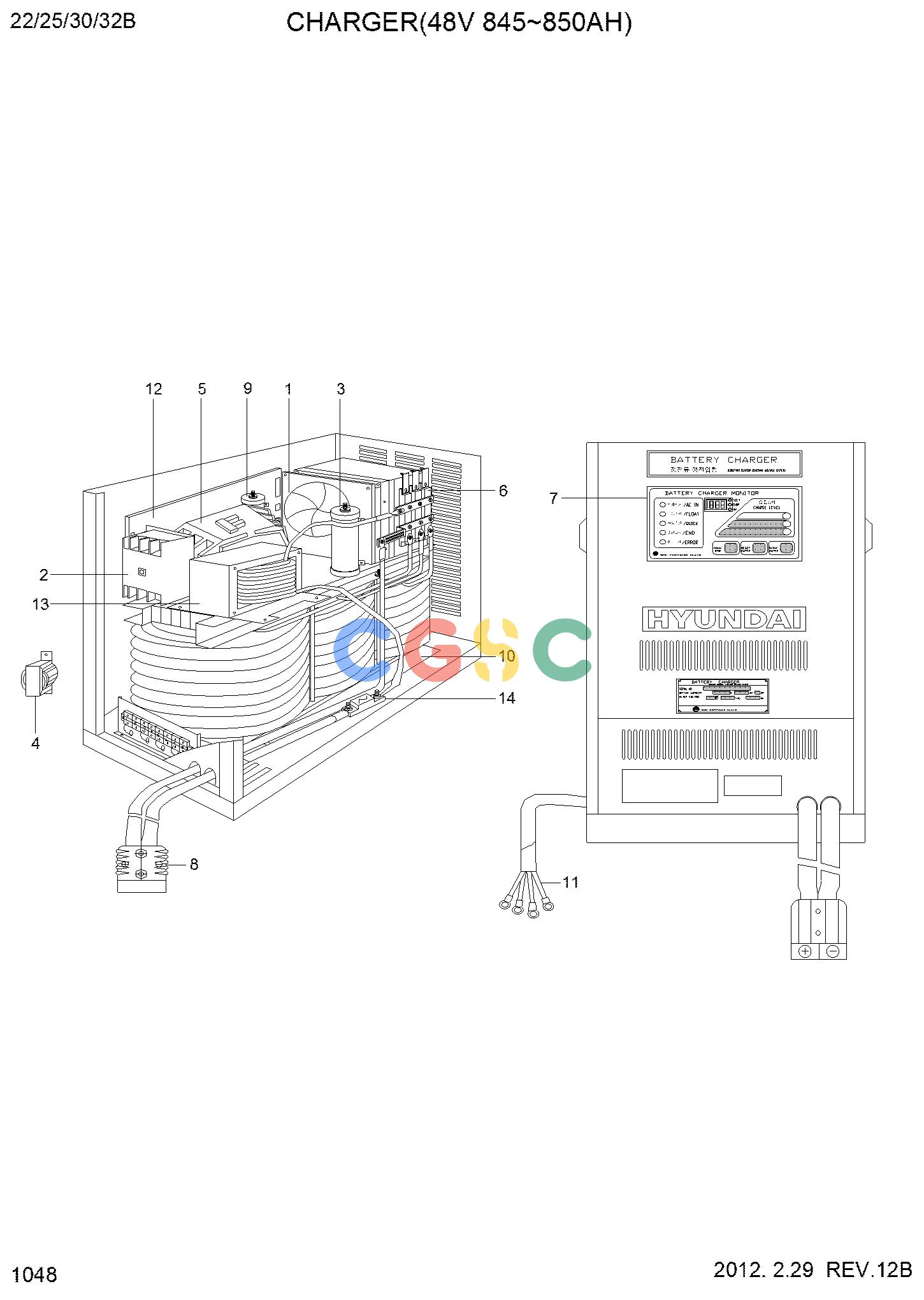

现代零件查询HBF20/25/30/32-7 CHARGER(48V 845~850AH)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
321 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
21FM-51061
|
[1] |
CHARGER-3P 220/380V
|
|
| . |
21FM-51061
|
[1] |
CHARGER-3P 220/380V
|
|
| . |
21FM-51121
|
[1] |
CHARGER-3P 410V
|
|
| . |
21FM-51121
|
[1] |
CHARGER-3P 410V
|
|
| . |
21FM-51071
|
[1] |
CHARGER-3P 440V
|
|
| . |
21FM-51071
|
[1] |
CHARGER-3P 440V
|
|
| . |
21FM-51081
|
[1] |
CHARGER-1P 220V
|
|
| . |
21FM-51081
|
[1] |
CHARGER-1P 220V
|
|
| 1. |
B11820250
|
[1] |
FAN
|
|
| 2. |
XKCS-00057
|
[1] |
AC OVER LOAD
|
|
| 3. |
XKCS-00002
|
[1] |
RESISTOR AS-RD
|
|
| 4. |
21FH-89020
|
[1] |
TRANS-AUX
|
|
| 5. |
XKCS-00058
|
[1] |
MAGNET SWITCH
|
|
| 6. |
21FH-79730
|
[3] |
SCR MODULE
|
|
| 6. |
XKCS-00046
|
[2] |
SCR MODULE
|
|
| 6. |
XKCS-00047
|
[1] |
SSR
|
|
| 7. |
XKCS-00003
|
[1] |
BOARD AS-MONITOR
|
|
| 8. |
XKCS-00023
|
[1] |
CABLE AS-DC OUTPUT
|
|
| 9. |
21FH-79740
|
[1] |
RESISTOR AS-DR
|
|
| 9. |
21FH-79750
|
[1] |
RESISTOR AS-DR
|
|
| 10. |
XKCS-00059
|
[1] |
MAIN TRANSFORMER-AS
|
|
| 10. |
XKCS-00060
|
[1] |
MAIN TRANSFORMER-AS
|
|
| 10. |
XKCS-00061
|
[1] |
MAIN TRANSFORMER-AS
|
|
| 10. |
XKCS-00062
|
[1] |
MAIN TRANSFORMER-AS
|
|
| 11. |
XKCS-00085
|
[1] |
CABLE AS-AC INPUT
|
|
| 12. |
XKCS-00063
|
[1] |
BOARD AS-MAIN
|
|
| 12. |
XKCS-00064
|
[1] |
BOARD AS-MAIN
|
|
| 13. |
XKCS-00055
|
[1] |
CHOKE FILTER
|
|
| 14. |
XKCS-00038
|
[1] |
FUSE
|
|
