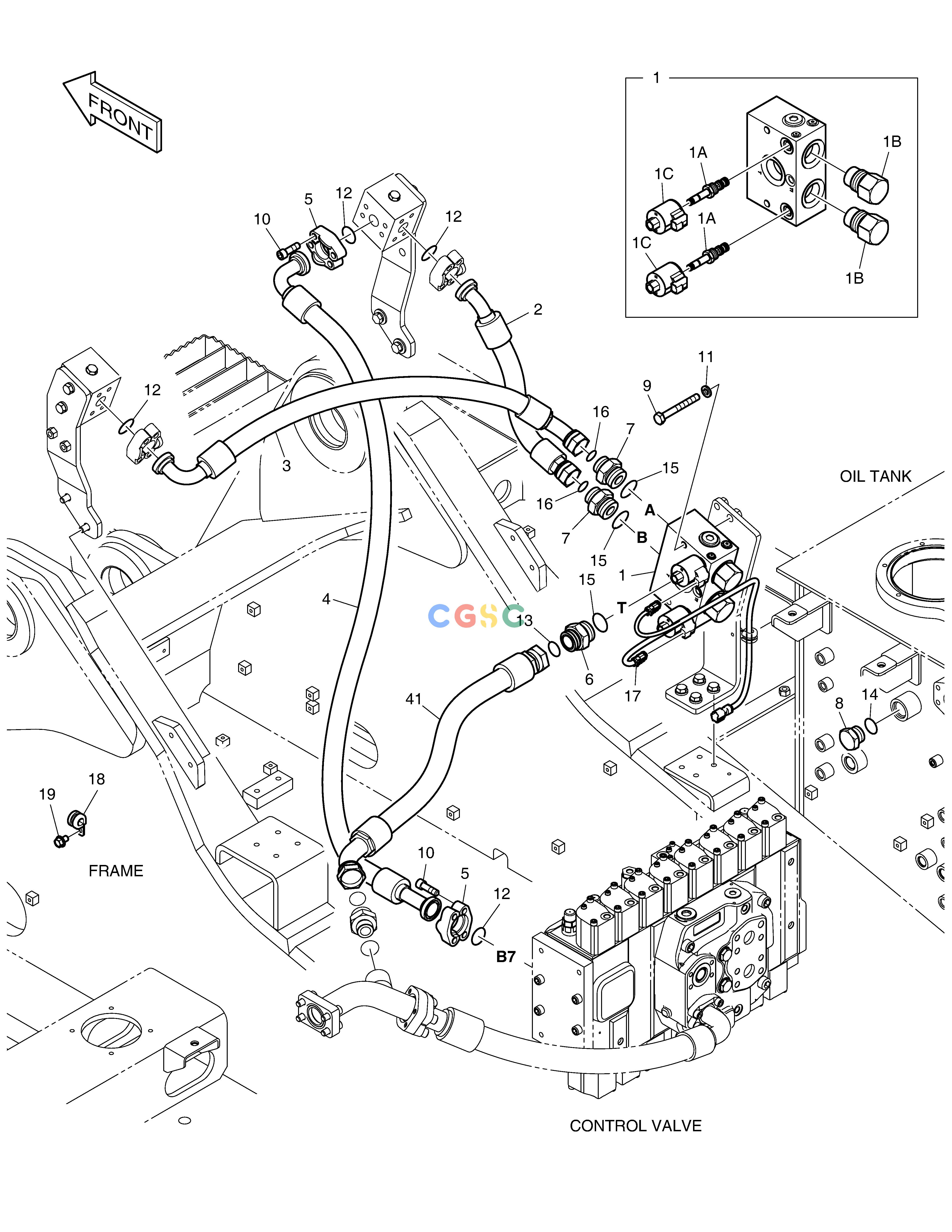

斗山零件查询MAIN PIPING - TWO WAY DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
451 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-00960
|
[-] |
|
|
| 1. |
410127-00046B
|
[1] |
|
|
| 10. |
S2215466
|
[8] |
BOLT
|
|
| 11. |
4114-1792A
|
[2] |
WASHER
|
|
| 12. |
2180-1026D19
|
[4] |
O-RING
|
|
| 13. |
S8030201
|
[1] |
|
|
| 14. |
S8000291
|
[1] |
O-RING
|
|
| 15. |
S8000381
|
[3] |
O-RING
|
|
| 16. |
S8030161
|
[2] |
O-RING
|
|
| 17. |
310207-00857
|
[1] |
|
|
| 18. |
124-00208D2
|
[1] |
CLAMP
|
|
| 19. |
K1001029
|
[1] |
BOLT
|
|
| 1A. |
410116-00694
|
[2] |
|
|
| 1B. |
410116-00695
|
[2] |
|
|
| 1C. |
300715-00032
|
[2] |
|
|
| 2. |
DS2017157
|
[1] |
|
|
| 3. |
DS2065115
|
[1] |
|
|
| 4. |
DS2040321
|
[1] |
HOSE
|
|
| 41. |
DS20121070
|
[1] |
|
|
| 5. |
2181-9081
|
[4] |
FLANGE;SPLIT
|
|
| 6. |
2181-4133D35
|
[1] |
ADAPTER
|
|
| 7. |
2181-4133D36
|
[2] |
ADAPTER
|
|
| 8. |
2181-1950D9
|
[1] |
PLUG
|
|
| 9. |
S0561666
|
[2] |
BOLT
|
|
