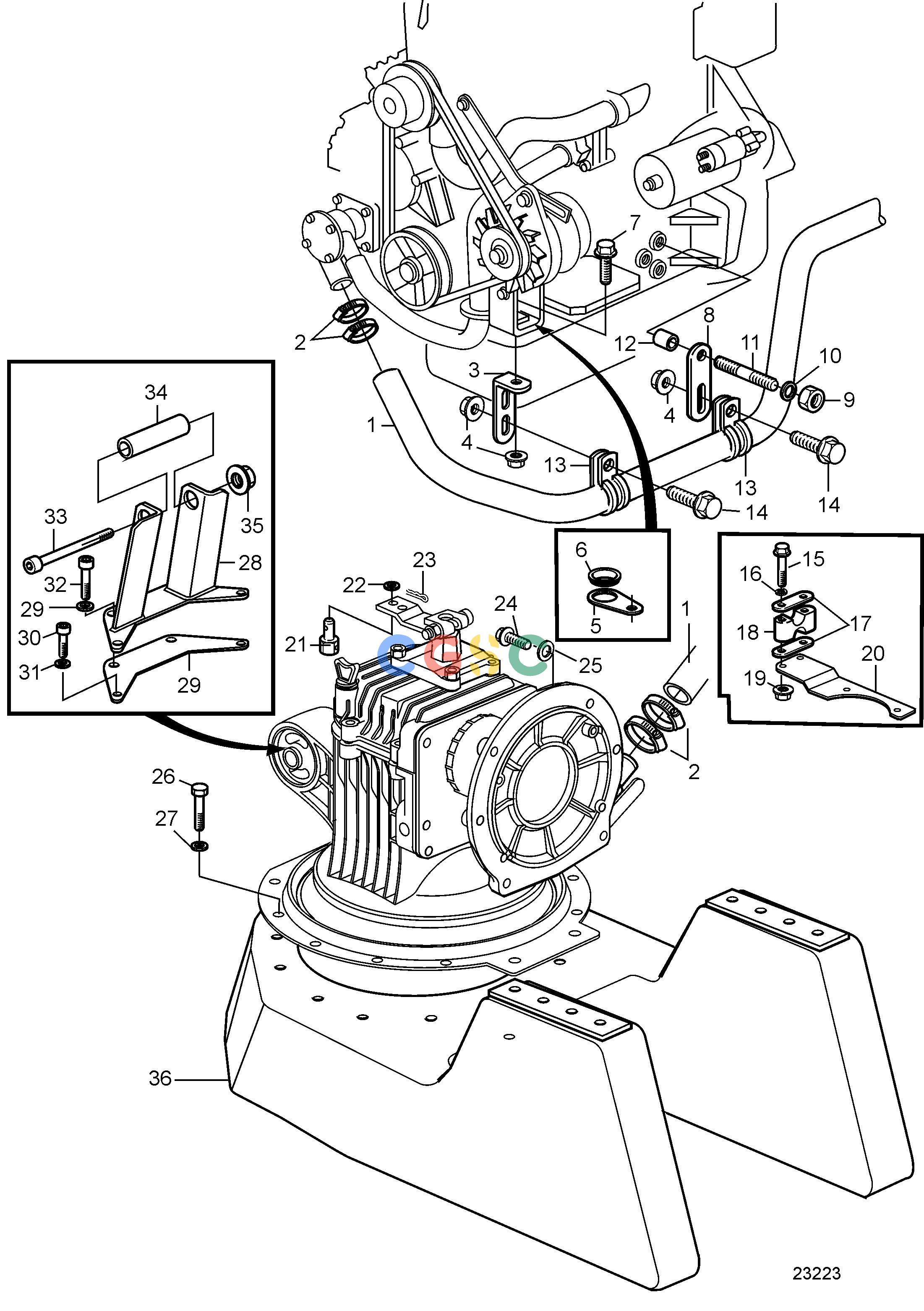

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FTransmissionsConnecting Kit for S-drive 150S/SREPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
593 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3584417
|
[1] |
Hose
|
For S-drive 150S/SR.
|
| 2. |
961669
|
[2] |
Hose clamp
|
|
| 3. |
965555
|
[1] |
Bracket
|
|
| 4. |
945408
|
[3] |
Flange nut
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
946671
|
[1] |
Flange screw
|
|
| 8. |
965535
|
[1] |
Bracket
|
|
| 9. |
3583789
|
[1] |
Nut
|
|
| 10. |
|
|
|
|
| 11. |
924083
|
[1] |
Stud
|
|
| 12. |
3582401
|
[1] |
Adapter
|
|
| 13. |
949850
|
[2] |
Clamp
|
|
| 14. |
946440
|
[2] |
Flange screw
|
|
| 15. |
969439
|
[2] |
Six point socket scr
|
|
| 16. |
940090
|
[2] |
Washer
|
|
| 17. |
872076
|
[2] |
Washer
|
|
| 18. |
872074
|
[2] |
Retainer
|
|
| 19. |
949874
|
[2] |
Flange lock nut
|
(946577)
|
| 20. |
|
|
|
See transmission catalogue
|
| 21. |
3852329
|
[1] |
Cube
|
|
| 22. |
941906
|
[1] |
Spring washer
|
|
| 23. |
17276
|
[1] |
Split pin
|
|
| 24. |
940160
|
[4] |
Hexagon screw
|
|
| 25. |
955896
|
[4] |
Washer
|
|
| 26. |
946730
|
[8] |
Hexagon screw
|
|
| 27. |
941670
|
[10] |
Washer
|
|
| 28. |
3841849
|
[1] |
Bracket
|
(3581160)
|
| 29. |
3581556
|
[1] |
Spacer washer
|
|
| 30. |
963568
|
[2] |
Hexagon screw
|
(963708)
|
| 31. |
853095
|
[2] |
Washer
|
|
| 32. |
959240
|
[2] |
Hex. socket screw
|
|
| 33. |
970983
|
[1] |
Hexagon screw
|
(959268)
|
| 34. |
943707
|
[1] |
Hose
|
|
| 35. |
971084
|
[1] |
Lock nut
|
(946810)
|
| 36. |
3842285
|
[1] |
Engine bed
|
(3583120)
|
