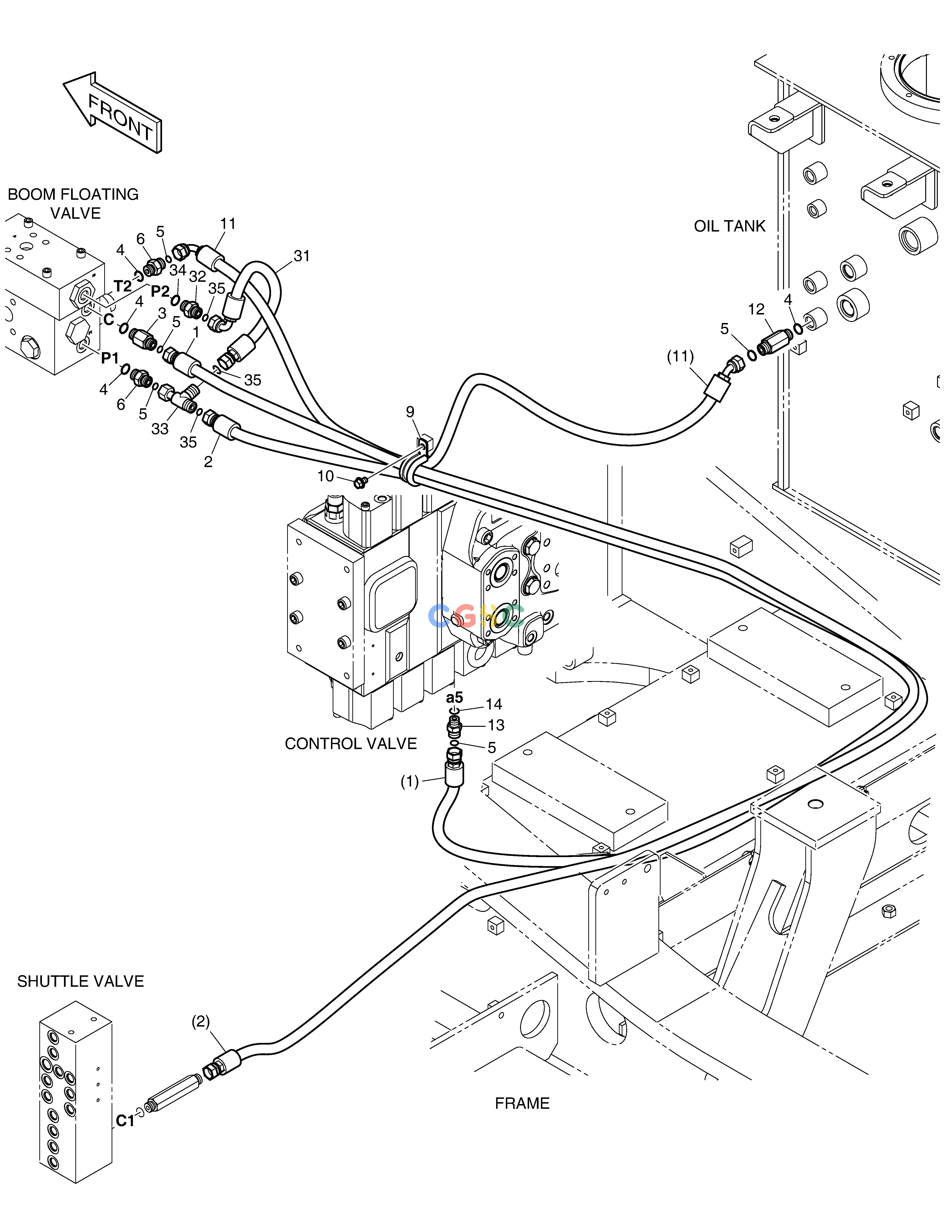

斗山零件查询PILOT PIPING - BOOM FLOATING DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
163 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-01133
|
[-] |
|
|
| 1. |
DS2119079
|
[1] |
|
|
| 10. |
K1001029
|
[1] |
BOLT
|
|
| 11. |
DS2122069
|
[1] |
|
|
| 12. |
DS2232085
|
[1] |
ADAPTER
|
|
| 13. |
DS2232066
|
[1] |
ADAPTER
|
|
| 14. |
S8040061
|
[1] |
O-RING
|
|
| 2. |
DS2119083
|
[1] |
|
|
| 3. |
2181-4133D24
|
[1] |
ADAPTER
|
|
| 31. |
DS2121172
|
[1] |
|
|
| 32. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 33. |
DS2362011
|
[1] |
|
|
| 34. |
S8000141
|
[1] |
O-RING
|
|
| 35. |
S8030061
|
[3] |
O-RING
|
|
| 4. |
S8000141
|
[4] |
O-RING
|
|
| 5. |
S8030061
|
[5] |
O-RING
|
|
| 6. |
2181-4133D2
|
[2] |
ADAPTER
|
|
| 9. |
124-00208D5
|
[1] |
CLIP
|
|
