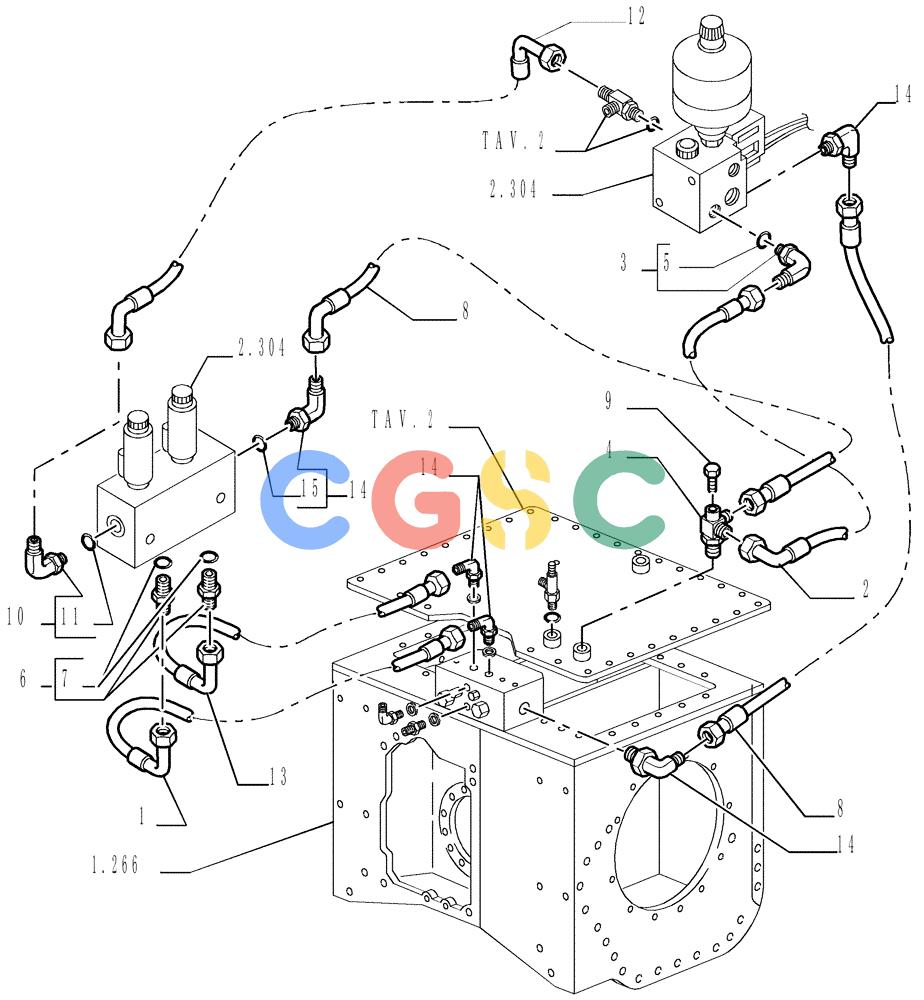

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (2.319[03]) - STEERING CONNECTING PIPING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
206 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76068474 | [2] | HOSE | TOR |
| 2. | 76066034 | [1] | HOSE | TOR |
| 3. | 79067017 | [1] | ELBOW | LEC90° - 8 - ASSY |
| 4. | 76054890 | [1] | SWIVEL CONNECTION | LEC |
| 5. | 14437785 | [1] | O-RING,11.3mm ID x 2.4mm | LEC |
| 6. | 79066944 | [2] | HYD CONNECTOR | LEC- ASSY |
| 7. | 14438085 | [1] | O-RING,19.3mm ID x 2.4mm | JES |
| 8. | 76066036 | [2] | HOSE | TOR |
| 9. | 14323111 | [1] | PLUG | LEC10X1 |
| 10. | 79067018 | [1] | 90 ELBOW | LEC10 a 90° 10 - ASSY |
| 12. | 76035640 | [1] | HYDRAULIC HOSE | LEC |
| 13. | 79115109 | [1] | FLEXIBLE HOSE | LEC |
| 14. | 79067024 | [5] | ELBOW | LEC20 a 90° - ASSY |
