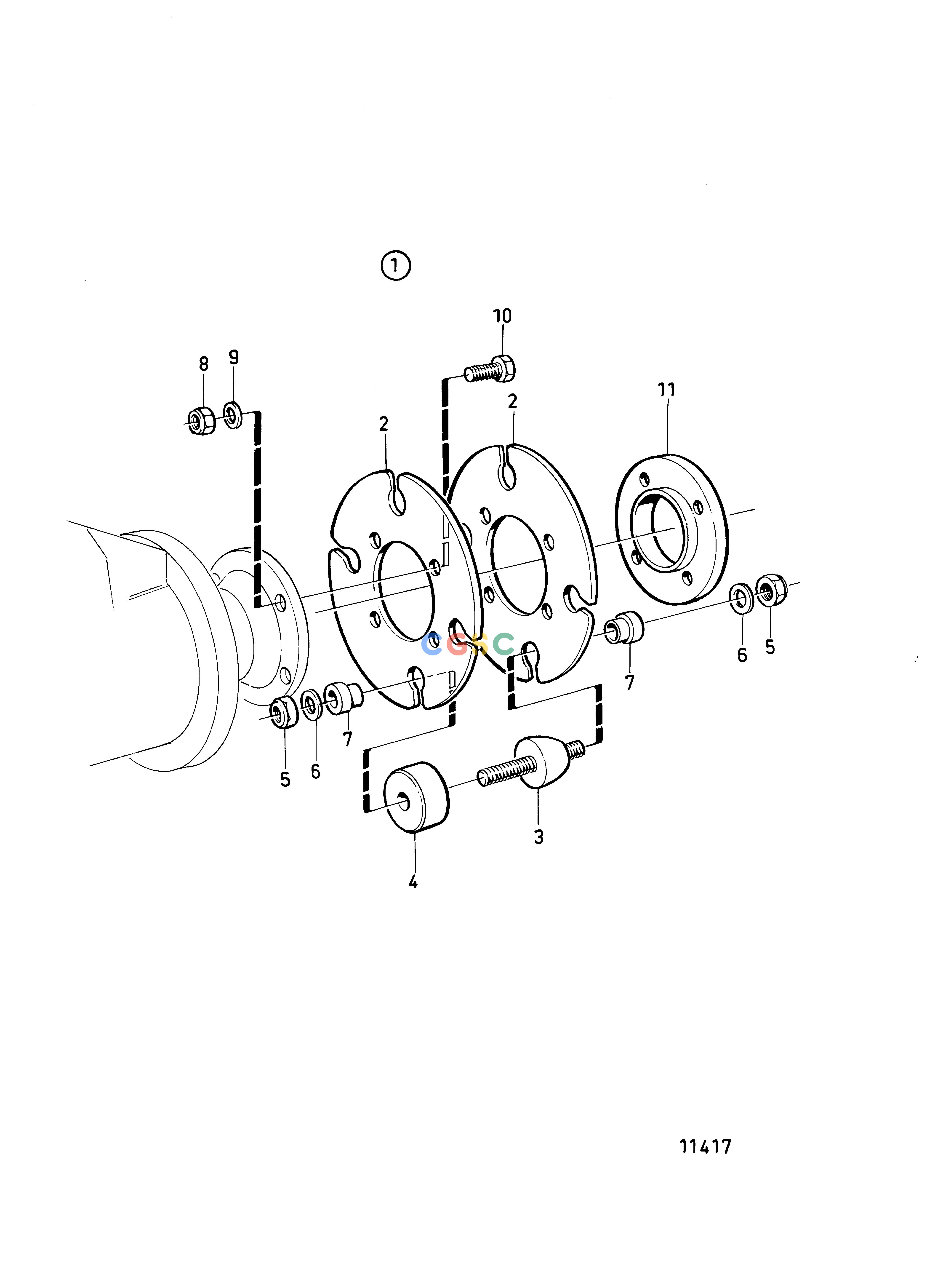

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FTransmissionsShaft Coupling, FlexibleEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
238 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
819154
|
[1] |
Rubber coupling
|
For 30mm and 35mm propeller shaft
|
| 2. |
819151
|
[2] |
Flexplate
|
|
| 3. |
803762
|
[6] |
Rubber cushion
|
|
| 4. |
803748
|
[6] |
Protecting casing
|
|
| 5. |
955850
|
[12] |
Hexagon nut
|
|
| 6. |
940280
|
[12] |
Spring washer
|
|
| 7. |
802976
|
[12] |
Washer
|
|
| 8. |
971071
|
[8] |
Hexagon nut
|
|
| 9. |
941908
|
[8] |
Spring washer
|
|
| 10. |
970947
|
[4] |
Hexagon screw
|
L=25mm
|
| 10. |
970949
|
[4] |
Hexagon screw
|
L=35mm
|
| 11. |
803029
|
[1] |
Guide ring
|
|
