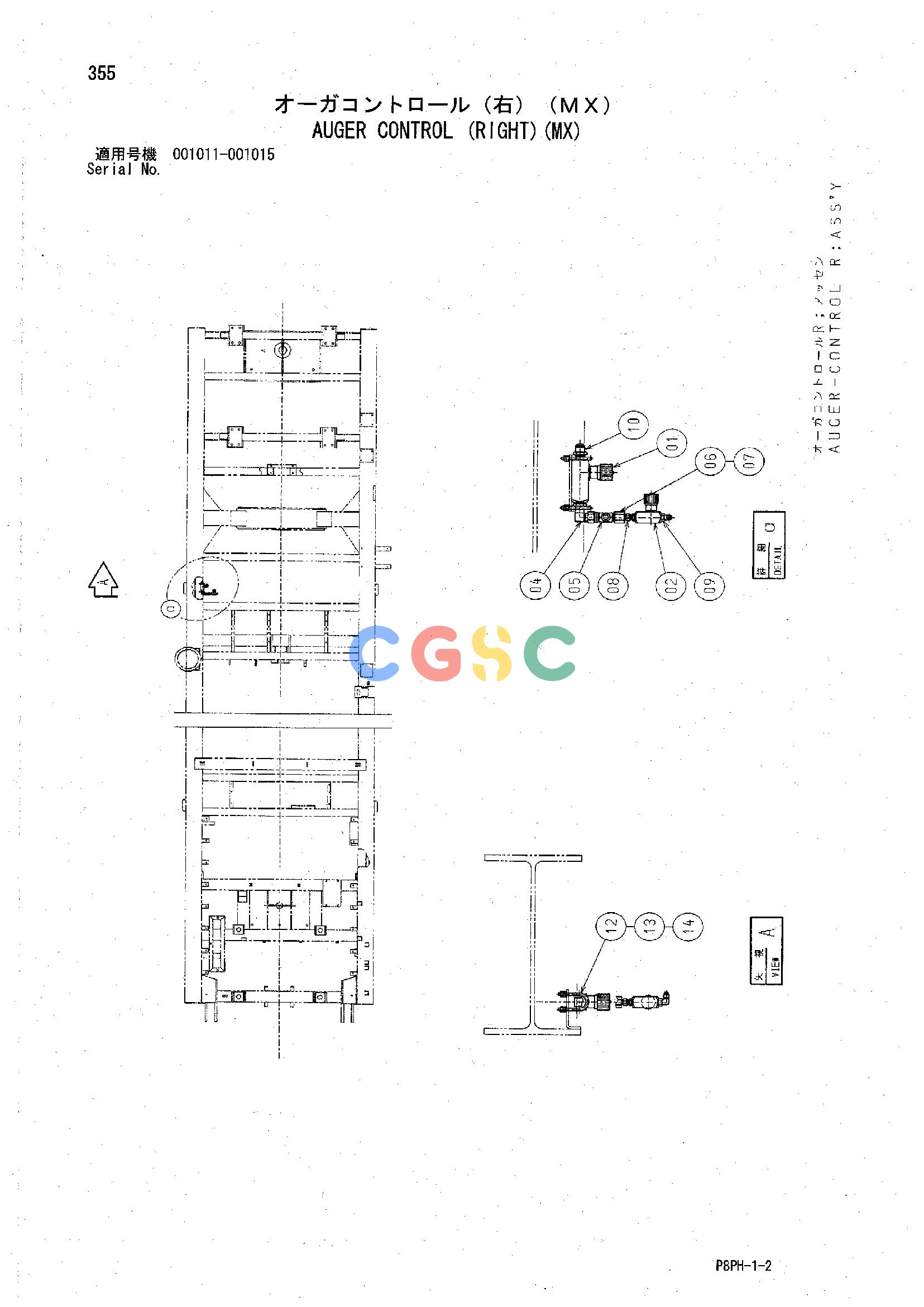

日立零件查询（AR2000）AUGER CONTROL (RIGHT)(MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
995 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 88-0075 | [1] | FLOW CONTROL VALVE | HYCON SRVR-10-1.0/5V |
| 02. | 88-0120 | [1] | FLOW CONTROL VALVE | HYCON DRV-8-1.0/12V |
| 04. | 88-2157 | [1] | ELBOW | PARKER 8CTXSS |
| 05. | 88-2009 | [1] | TEE | PARKER 8R6XSS |
| 06. | 88-2062 | [1] | REDUCER | PARKER 8-4TRTXSS |
| 07. | 88-2001 | [1] | NUT | PARKER 8BMTXSS |
| 08. | 88-2063 | [1] | CONNECTOR | PARKER 4F650MXSS |
| 09. | 88-2165 | [1] | ELBOW | PARKER 4C50XSS |
| 10. | 88-2066 | [1] | CONNECTOR | PARKER 8FTXSS |
| 12. | Y401841 | [2] | BOLT;U | |
| 13. | M500605 | [8] | NUT | |
| 14. | A590106 | [4] | WASHER;PLANE | |
