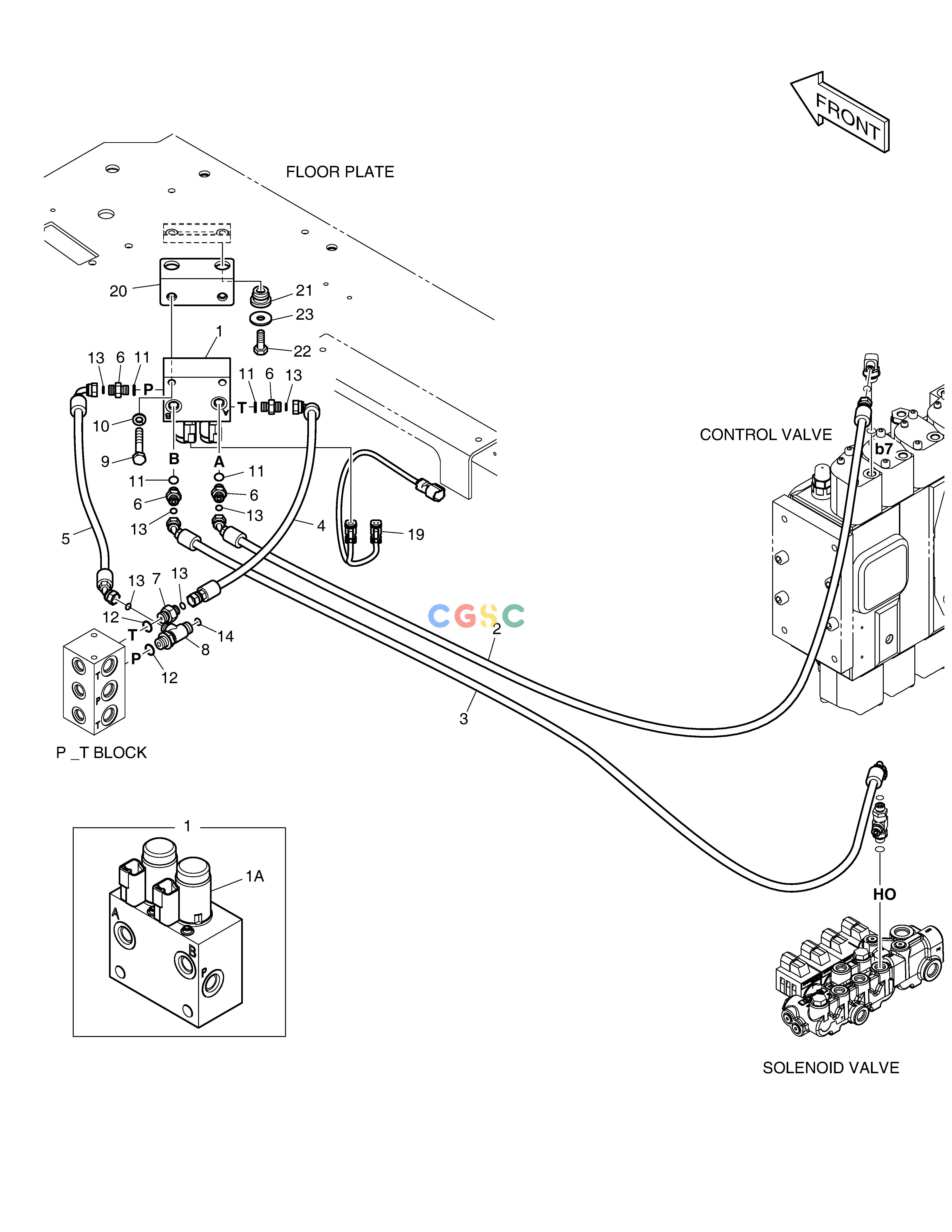

斗山零件查询PILOT PIPING(2) - TWO WAY DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
769 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-01103C
|
[-] |
|
|
| -. |
420212-01103G
|
[-] |
|
|
| 1. |
410116-00091
|
[1] |
|
|
| 10. |
S5102603
|
[2] |
. WASHER
|
|
| 11. |
S8000111
|
[4] |
O-RING
|
|
| 12. |
S8000141
|
[2] |
O-RING
|
|
| 13. |
S8030041
|
[6] |
O-RING
|
|
| 14. |
S8030061
|
[1] |
O-RING
|
|
| 19. |
310207-00857
|
[1] |
|
|
| 1A. |
410116-00418
|
[2] |
|
|
| 2. |
DS2120103
|
[1] |
|
|
| 20. |
110425-00160
|
[1] |
|
|
| 21. |
198-00016
|
[2] |
RUBBER
|
|
| 22. |
S0512266
|
[2] |
BOLT
|
|
| 23. |
2114-1058D10
|
[2] |
WASHER
|
|
| 3. |
DS2122027
|
[1] |
|
|
| 4. |
DS2121059
|
[1] |
|
|
| 5. |
DS2122039
|
[1] |
|
|
| 6. |
2181-4133D1
|
[4] |
ADAPTER
|
DS2232018
|
| 6. |
DS2232018
|
[4] |
|
|
| 7. |
2181-4133D41
|
[1] |
ADAPTER
|
DS2232041
|
| 7. |
DS2232041
|
[1] |
|
|
| 8. |
181-00121D4
|
[1] |
TEE
|
DS2412004
|
| 8. |
DS2412004
|
[1] |
|
|
| 9. |
S0558966
|
[2] |
BOLT
|
|
