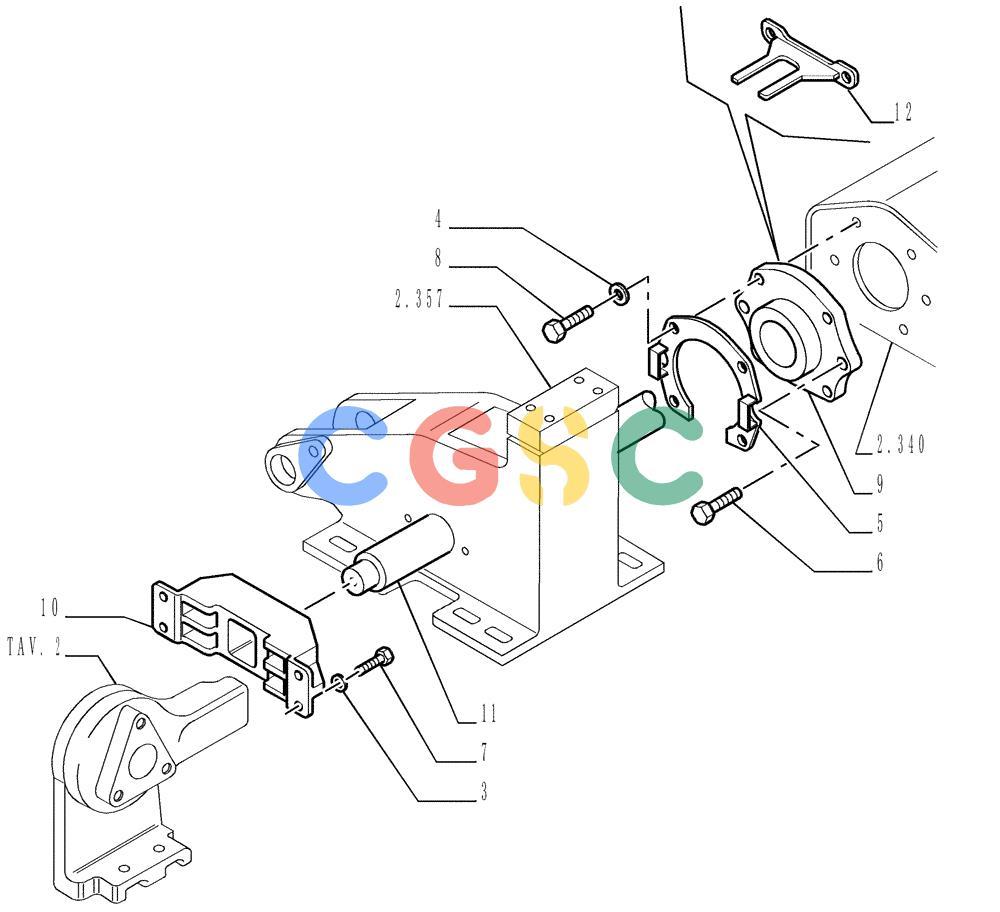

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (2.346[04]) - TRACK IDLER - YOKE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
833 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3. | 14496931 | [8] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 4. | 14497131 | [4] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 5. | 76041400 | [2] | PLATE | LEC- FRONT Superseded by part number: 76089211 |
| 6. | 76041402 | [4] | SCREW,Hex, M20 x 2.5 x 220mm | LEC20X2,5X22 |
| 7. | 15981031 | [8] | BOLT,Hex, M16 x 1.5 x 55mm, Cl 10.9 | TTF |
| 9. | 76041398 | [2] | SUPPORT | LEC Superseded by part number: 76089210 |
| 10. | 76053501 | [2] | SUPPORT | LEC |
| 11. | 76045697 | [2] | ROD | LEC |
| 12. | 76068336 | [2] | PLATE | LEC Superseded by part number: 76089212 |
