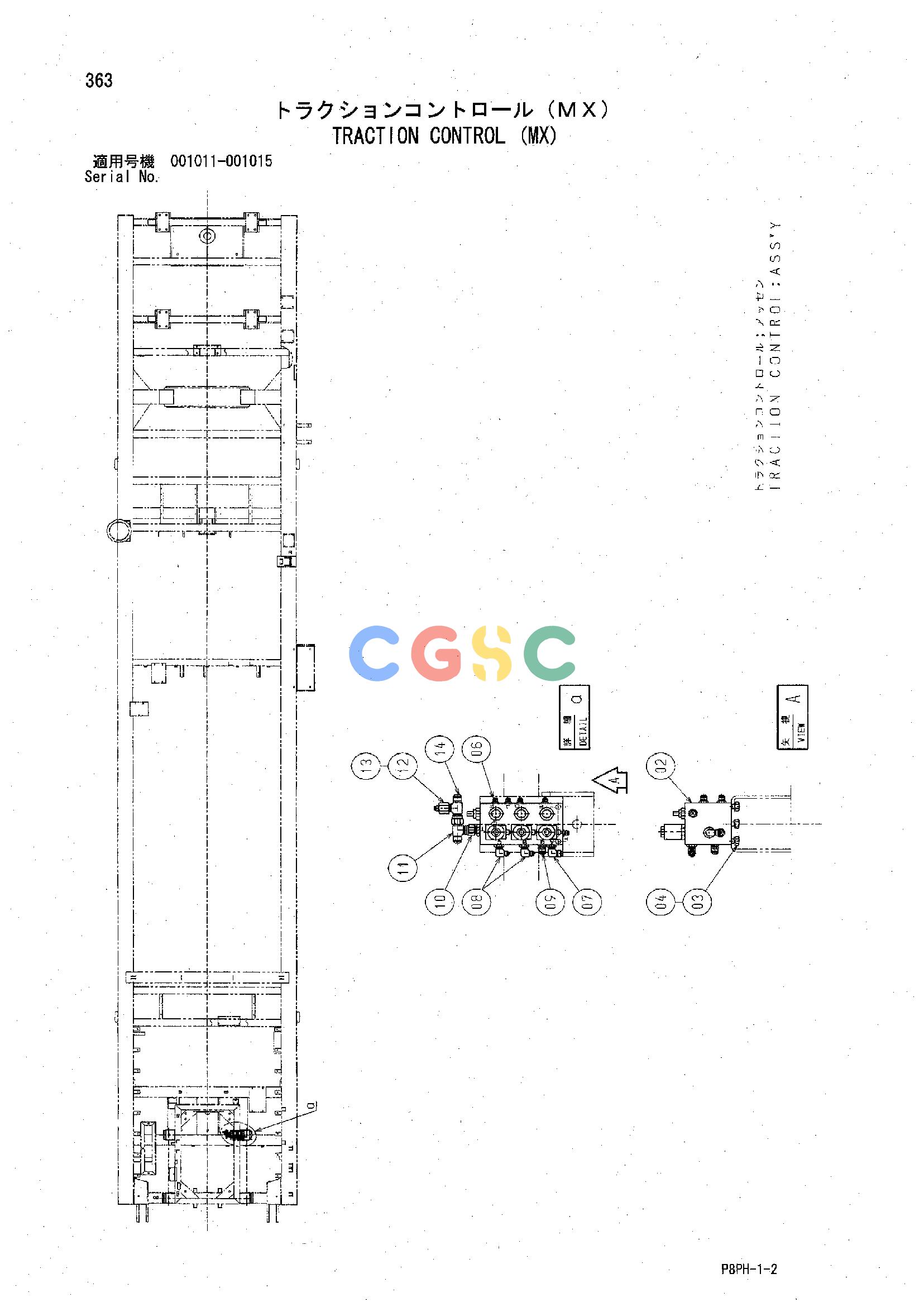

日立零件查询（AR2000）TRACTION CONTROL (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
531 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | 88-0280 | [1] | MANIFOLD BLOCK | BASIC VB6-140.A1 |
| 03. | Y409397 | [3] | BOLT | |
| 04. | J219083 | [3] | WASHER;SPRING | |
| 06. | 88-2110 | [5] | CONNECTOR | PARKER 4-6F50XSS |
| 07. | 88-2169 | [1] | ELBOW | PARKER 6C50XSS |
| 08. | 88-2145 | [2] | ELBOW | PARKER 4-6C50XSS |
| 09. | 88-0320 | [1] | CONTROL CONNECTOR | RAICO SMC-S6C |
| 10. | 88-2011 | [1] | CONNECTOR | PARKER 8F50XSS |
| 11. | 88-2170 | [1] | TEE | PARKER 8S6XSS |
| 12. | 88-2062 | [1] | REDUCER | PARKER 8-4TRTXSS |
| 13. | 88-2001 | [1] | NUT | PARKER 8BMTXSS |
| 14. | 88-2009 | [1] | TEE | PARKER 8R6XSS |
