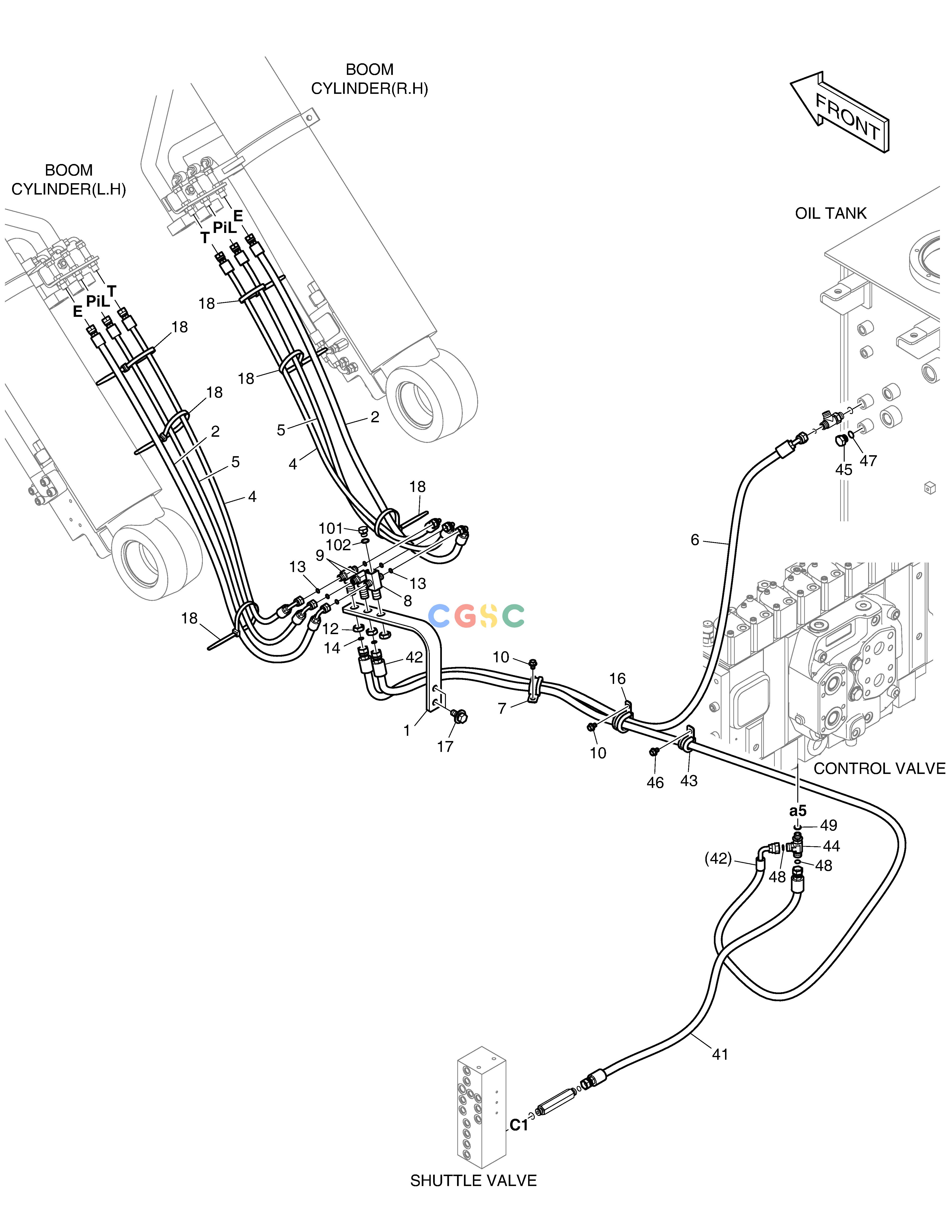

斗山零件查询PILOT PIPING-BOOM LOCK VALVE DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
900 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-01118
|
[-] |
|
|
| 1. |
110406-00246B
|
[1] |
|
|
| 10. |
K1001029
|
[2] |
BOLT
|
|
| 101. |
DS2901012
|
[1] |
PLUG
|
|
| 101. |
DS2901009
|
[1] |
PLUG
|
|
| 102. |
S8000141
|
[1] |
O-RING
|
|
| 102. |
S8000111
|
[1] |
O-RING
|
|
| 12. |
DS0301032
|
[3] |
NUT
|
|
| 13. |
S8030041
|
[6] |
O-RING
|
|
| 14. |
S8030061
|
[2] |
O-RING
|
|
| 16. |
124-00208D5
|
[1] |
CLIP
|
|
| 17. |
DS0025018
|
[2] |
BOLT
|
|
| 18. |
310101-00035
|
[6] |
TIE,CABLE
|
|
| 2. |
DS20131124
|
[2] |
HOSE
|
|
| 4. |
DS2121193
|
[2] |
|
|
| 41. |
DS2119201
|
[1] |
|
|
| 42. |
DS2121354
|
[1] |
|
|
| 43. |
124-00208D3
|
[1] |
CLIP
|
|
| 44. |
DS2376007
|
[1] |
|
|
| 45. |
2181-1950D2
|
[1] |
PLUG
|
|
| 46. |
K1001029
|
[1] |
BOLT
|
|
| 47. |
S8000141
|
[1] |
O-RING
|
|
| 48. |
S8030061
|
[2] |
O-RING
|
|
| 49. |
S8040061
|
[1] |
O-RING
|
|
| 5. |
DS2121011
|
[2] |
|
|
| 6. |
DS2120088
|
[1] |
|
|
| 7. |
124-00209D1
|
[1] |
CLIP
|
|
| 8. |
430225-00006A
|
[1] |
|
430225-00006B
|
| 8. |
430225-00006B
|
[1] |
|
|
| 8. |
430225-00006C
|
[1] |
|
|
| 9. |
DS2416013
|
[2] |
|
|
