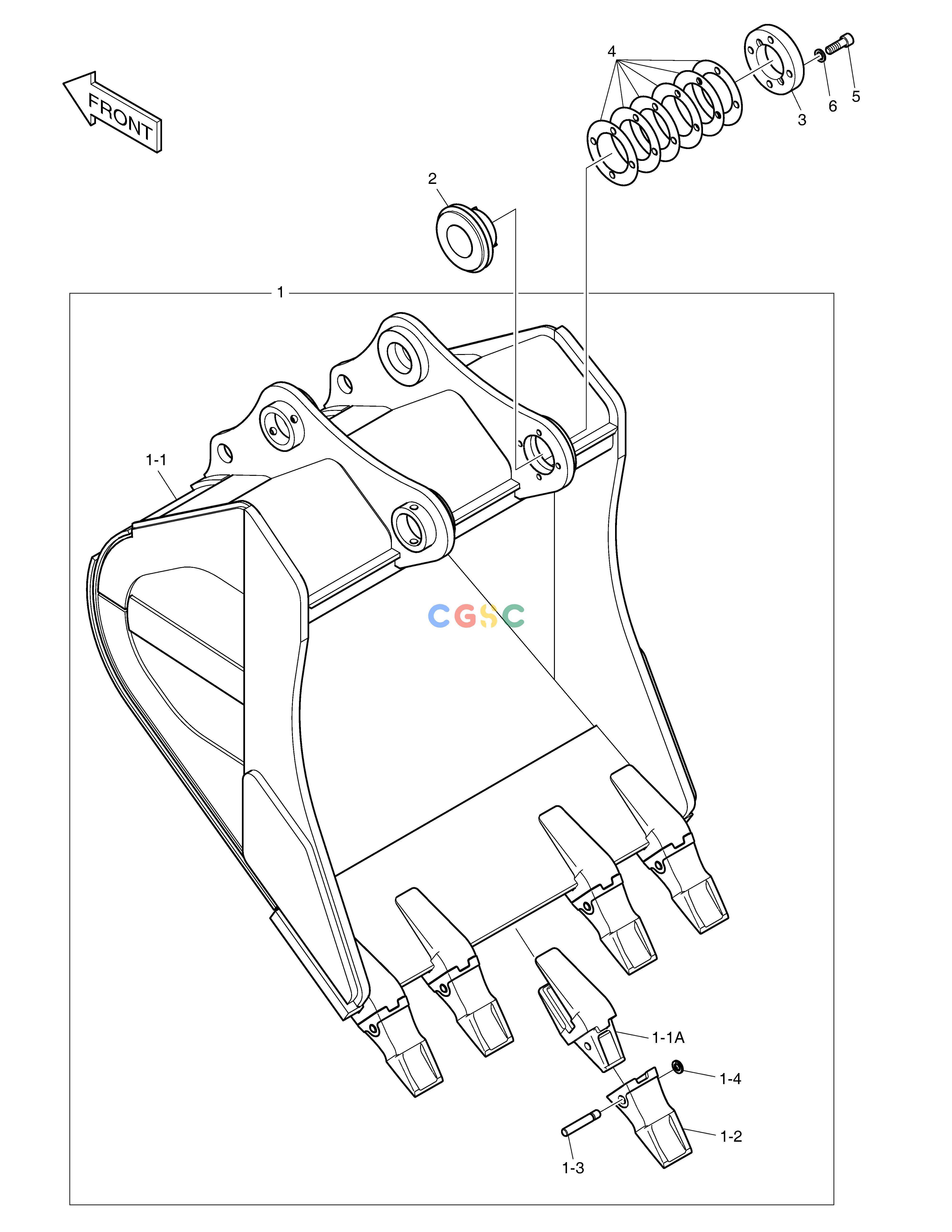

斗山零件查询ROCK BUCKET - 1.37m³(HEAVY DUTY) DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
327 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1013287G
|
[-] |
BUCKET ASS'Y
|
|
| 1. |
K1013288E
|
[1] |
BUCKET SUB ASS'Y-1.37㎥
|
|
| 1-1. |
K1013289B
|
[1] |
BUCKET;WELD-1.37㎥
|
|
| 1-1A. |
713-00033A
|
[5] |
ADAPTER;TOOTH
|
|
| 1-2. |
K1005018B
|
[5] |
TOOTH;POINT
|
|
| 1-3. |
705-00006
|
[5] |
PIN;LOCKING
|
|
| 1-4. |
114-00246
|
[5] |
WASHER;LOCKING
|
|
| 2. |
K1005253
|
[1] |
BUSH;FLANGE
|
|
| 3. |
K1005254B
|
[1] |
STOPPER
|
|
| 4. |
K1013571
|
[6] |
SHIM
|
|
| 5. |
S2221666
|
[4] |
BOLT;SOCKET
|
|
| 6. |
K1014251
|
[4] |
WASHER;HARDEN
|
|
