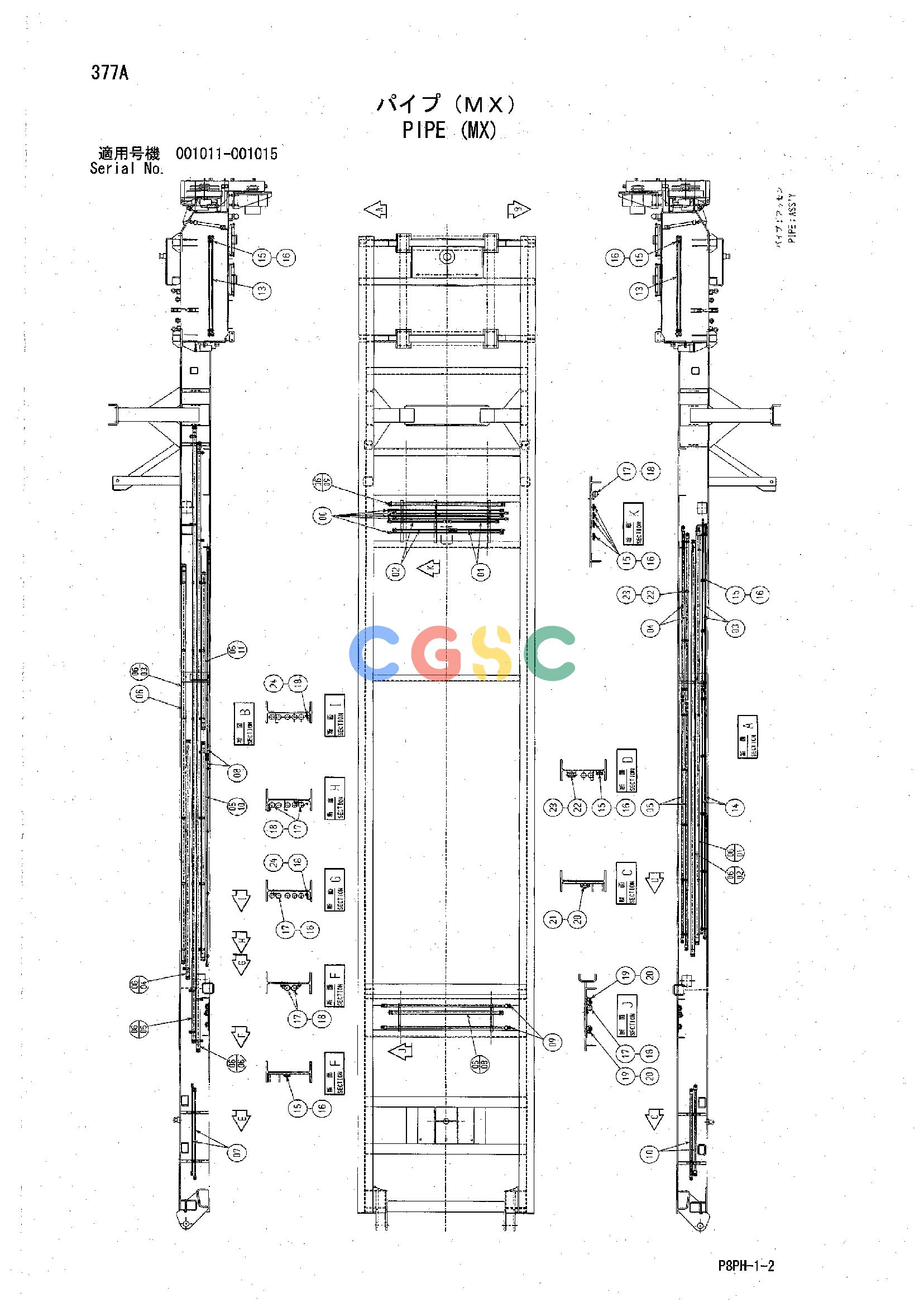

日立零件查询（AR2000）PIPE (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
852 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y971261 | [5] | CONDUIT | |
| 01. | Y971262 | [2] | CONDUIT | |
| 02. | Y971263 | [2] | CONDUIT | |
| 03. | Y971264 | [2] | CONDUIT | |
| 04. | Y971265 | [2] | CONDUIT | |
| 05. | Y971266 | [2] | CONDUIT | |
| 06. | Y410478 | [1] | HOSE ASS'Y | |
| 0601. | +++++++ | [1] | HOSE | 1･5/8-12(ST)X1･5/8-12(ST)-6000 20.5MPa |
| 0602. | +++++++ | [1] | HOSE | 1･5/8-12(ST)X1･5/8-12(ST)-6000 20.5MPa |
| 0603. | +++++++ | [1] | HOSE | 1･5/8-12(ST)X1･5/8-12(ST)-5800 20.5MPa |
| 0604. | +++++++ | [1] | HOSE | 1･5/8-12(ST)X1･5/8-12(ST)-3500 20.5MPa |
| 0605. | +++++++ | [1] | HOSE | 1･5/8-12(ST)X1･5/8-12(ST)-8900 20.5MPa |
| 0606. | +++++++ | [1] | HOSE | 1･5/8-12(ST)X1･5/8-12(ST)-8900 20.5MPa |
| 0608. | +++++++ | [1] | HOSE | 1･5/8-12(ST)X1･5/8-12(ST)-1530 20.5MPa |
| 0609. | +++++++ | [1] | HOSE | 1･5/8-12(ST)X1･5/8-12(ST)-1530 20.5MPa |
| 0610. | +++++++ | [1] | HOSE | 1･5/8-12(ST)X1･5/8-12(ST)-2700 20.5MPa |
| 0611. | +++++++ | [1] | HOSE | 1･5/8-12(ST)X1･5/8-12(ST)-3200 20.5MPa |
| 07. | Y971268 | [2] | CONDUIT | |
| 08. | Y971269 | [2] | CONDUIT | |
| 09. | Y971270 | [2] | CONDUIT | |
| 10. | Y971271 | [2] | CONDUIT | |
| 13. | Y971285 | [4] | CONDUIT | |
| 14. | Y971267 | [2] | CONDUIT | |
| 15. | 4001156 | [36] | CLAMP;PIPE | |
| 16. | J011035 | [36] | BOLT;SEMS | |
| 17. | 4193848 | [26] | CLIP | |
| 18. | J011020 | [34] | BOLT;SEMS | |
| 19. | 4190126 | [4] | CLAMP;PIPE | |
| 20. | J011050 | [6] | BOLT;SEMS | |
| 21. | 4189859 | [2] | CLAMP;PIPE | |
| 22. | 4053596 | [18] | CLAMP;PIPE | |
| 23. | J011255 | [18] | BOLT;SEMS | |
| 24. | 4190253 | [8] | CLIP | |
